MTD 61 series User Manual

FUEL SYSTEM AND GOVERNOR
47
Roll over valve vent
To remove/replace the roll over valve:
1. Disconnect the vacuum line. See Figure 4.21.
2. Gently pry the roll over valve out of the fuel tank. See
Figure 4.22.
3. Inspect the rubber grommet, replace if damaged.
4. With the grommet on the roll over valve, install the
roll over valve by pressing it into the opening in the
tank. See Figure 4.23.
5. Install the vacuum line.
6. Test run the engine in a safe area before returning to
service.

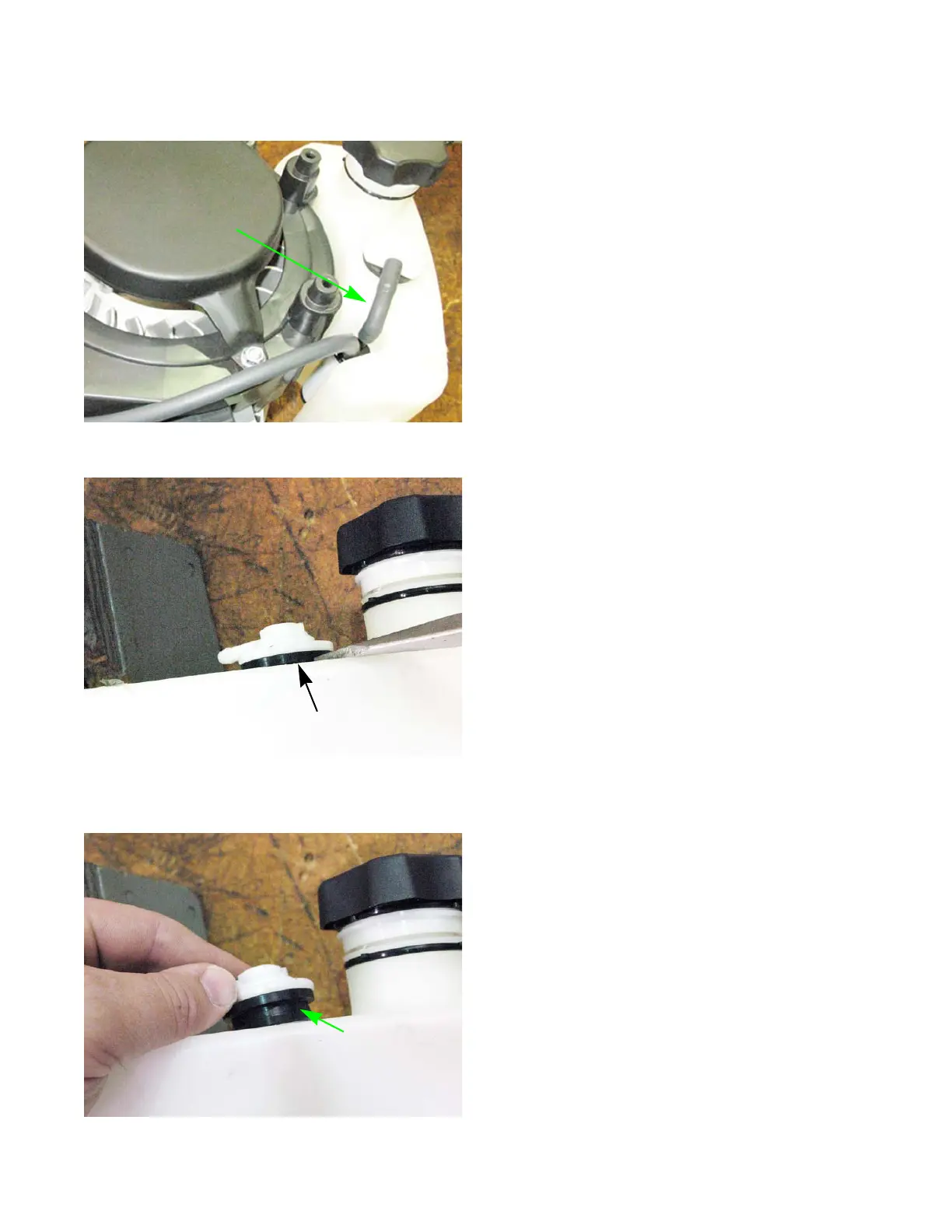

Figure 4.21
Disconnect the
vacuum line
Figure 4.22
Gently pry out the roll over valve
Figure 4.23
Grommet
