X Series User Manual

RTSI Connector Pinout

(NI PCI Express Devices) Figure 9-2 shows the RTSI connector pinout and Table 9-1

describes the RTSI signals.

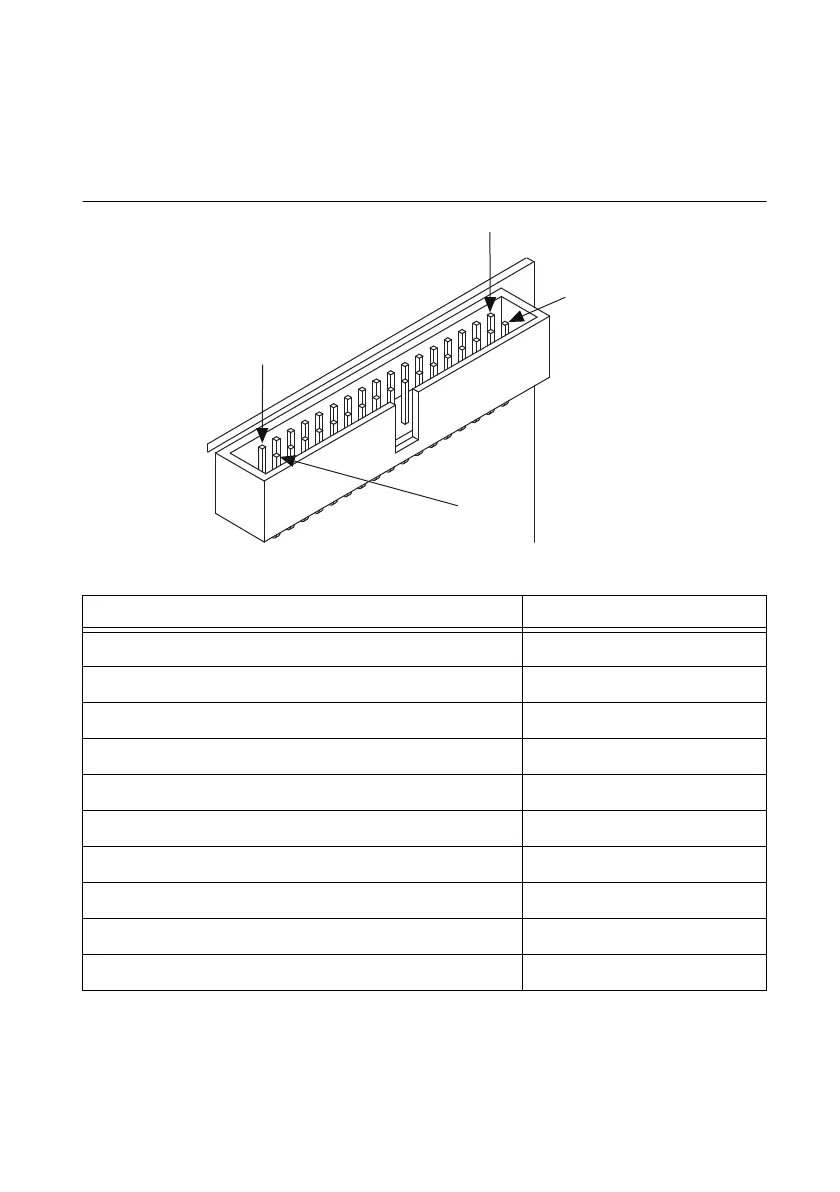

Figure 9-2. PCI Express RTSI Pinout

Table 9-1. RTSI Signals

RTSI Bus Signal Terminal

RTSI 7 34

RTSI 6 32

RTSI 5 30

RTSI 4 28

RTSI 3 26

RTSI 2 24

RTSI 1 22

RTSI 0 20

Not Connected. Do not connect signals to these terminals. 1 through 18

D GND 19, 21, 23, 25, 27, 29, 31, 33

Terminal 1

Te r m i nal 2

Terminal 34

Terminal 33
