National Instruments NI 6225 User Manual

© National Instruments Corporation 9-1 M Series User Manual
9
Digital Routing and Clock
Generation
The digital routing circuitry has the following main functions.
• Manages the flow of data between the bus interface and the
acquisition/generation sub-systems (analog input, analog output,
digital I/O, and the counters). The digital routing circuitry uses FIFOs
(if present) in each sub-system to ensure efficient data movement.
• Routes timing and control signals. The acquisition/generation
sub-systems use these signals to manage acquisitions and generations.
These signals can come from the following sources.
– Your M Series device
– Other devices in your system through RTSI
– User input through the PFI terminals
– User input through the PXI_STAR terminal
• Routes and generates the main clock signals for the M Series device.
Clock Routing

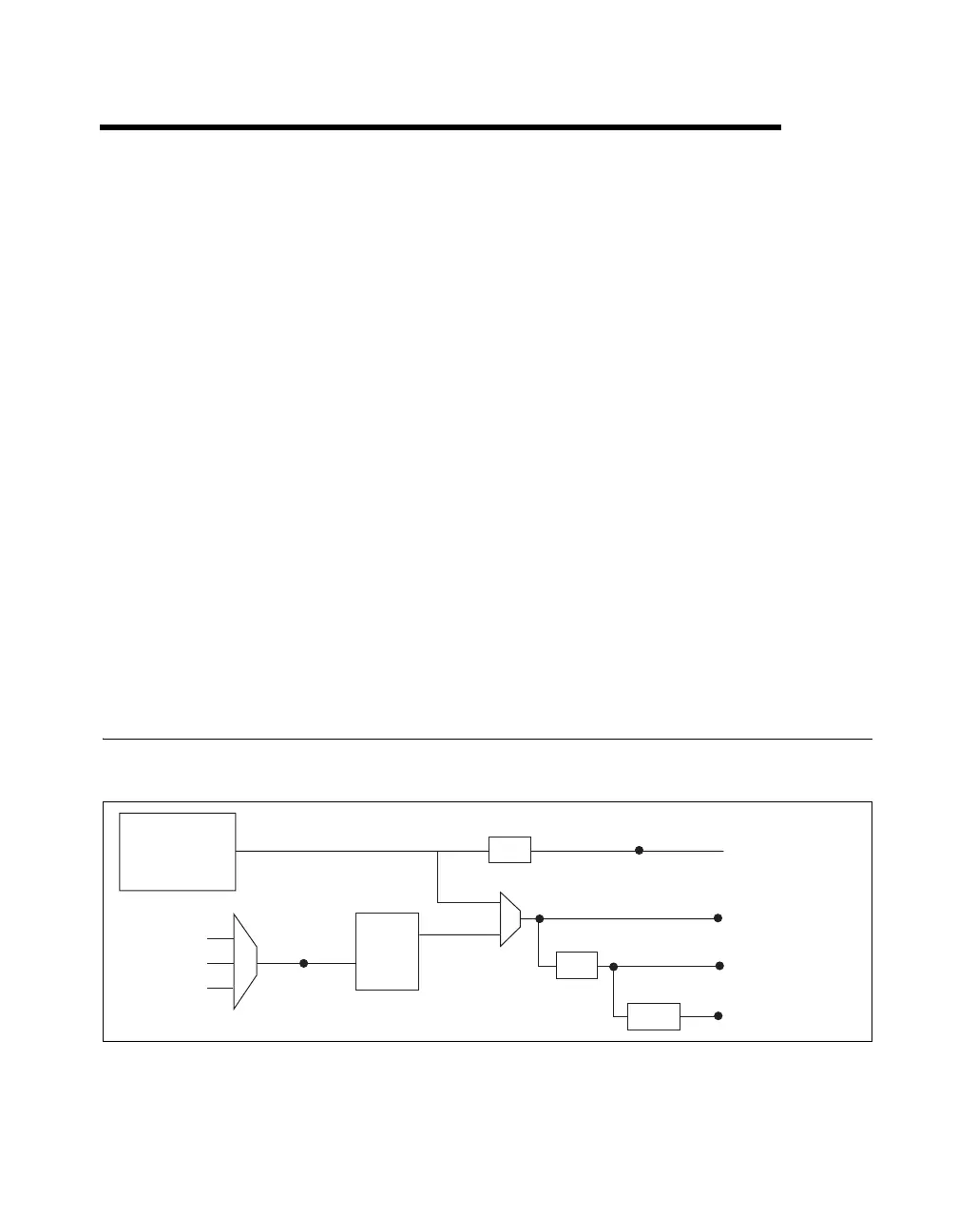

Figure 9-1 shows the clock routing circuitry of an M Series device.
Figure 9-1. M Series Clock Routing Circuitry
RTSI <0..7>
Onboard
80 MHz
Oscillator
External
Reference
Clock
(To RTSI <0..7>
Output Selectors)
10 MHz RefClk
PLL
÷ 4
÷ 200
÷ 8
PXI_CLK10
PXI_STAR
80 MHz Timebase
100 kHz Timebase
20 MHz Timebase
