Chapter 3 Connector and LED Information
M Series User Manual 3-12 ni.com
(USB-62xx Mass Termination Devices) To remove the fuse from the USB-62xx
Mass Termination, complete the following steps.
1. Power down and unplug the device.
2. Loosen the four Phillips screws that attach the lid to the enclosure, and
remove the lid.
3. Replace the fuse while referring to Figure 3-4 for the fuse location.

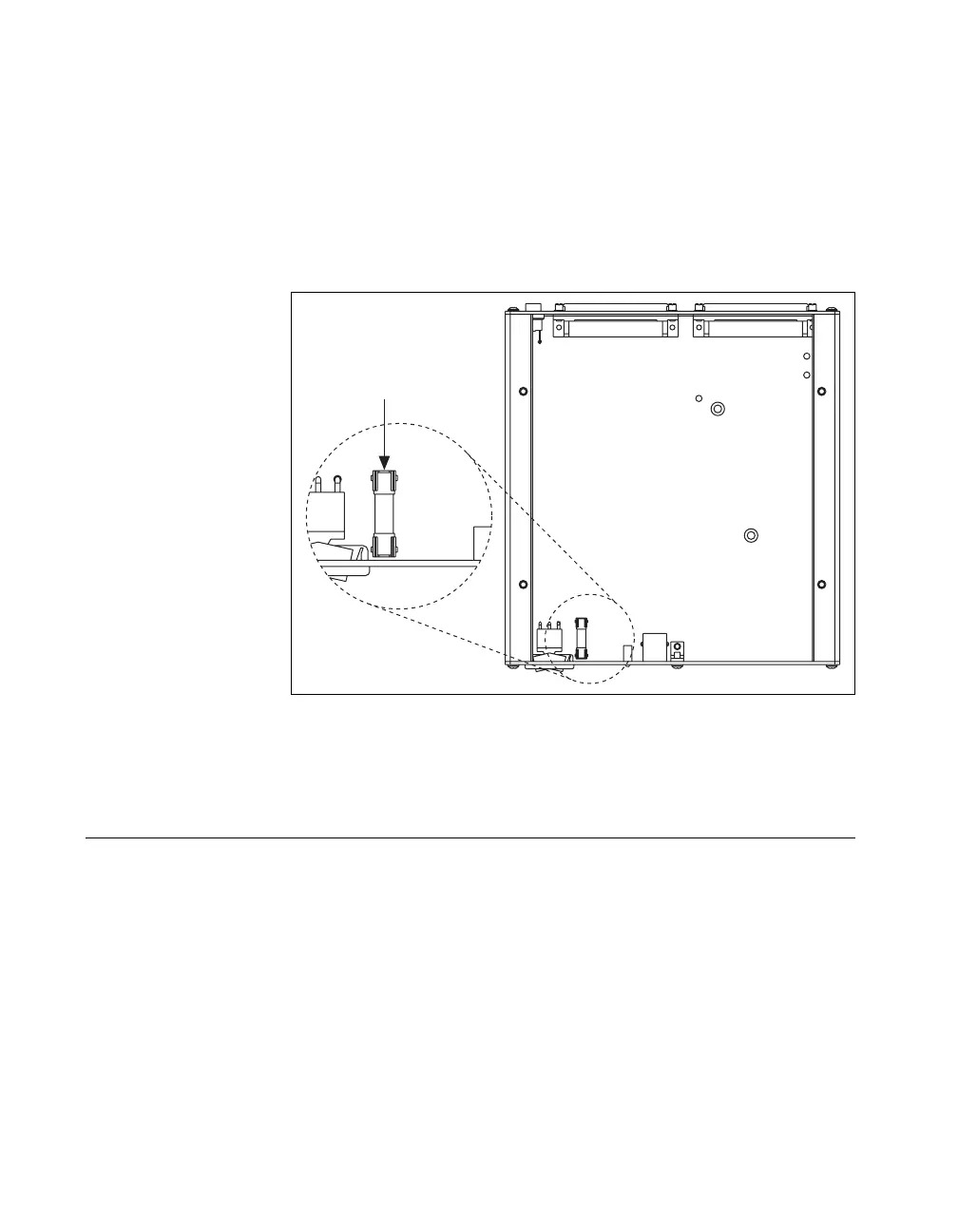

Figure 3-4. USB-62xx Mass Termination Fuse Location
4. Replace the lid and screws.
RTSI Connector Pinout
Refer to the RTSI Connector Pinout section of Chapter 9, Digital Routing
and Clock Generation, for information about the RTSI connector.
