Chapter 11 Triggering
© National Instruments 11-5 X Series User Manual
• Digital output behavior
•Counter behavior
Routing Analog Comparison Event to an Output Terminal
You can route Analog Comparison Event out to any PFI <0..15> or
RTSI <0..7> terminal.
Analog Trigger Types
Configure the analog trigger circuitry to different triggering modes:
• Analog Edge Triggering—Configure the analog trigger circuitry to
detect when the analog signal is below or above a level you specify.
In below-level analog triggering mode, shown in Figure 11-4, the
trigger is generated when the signal value is less than Level.

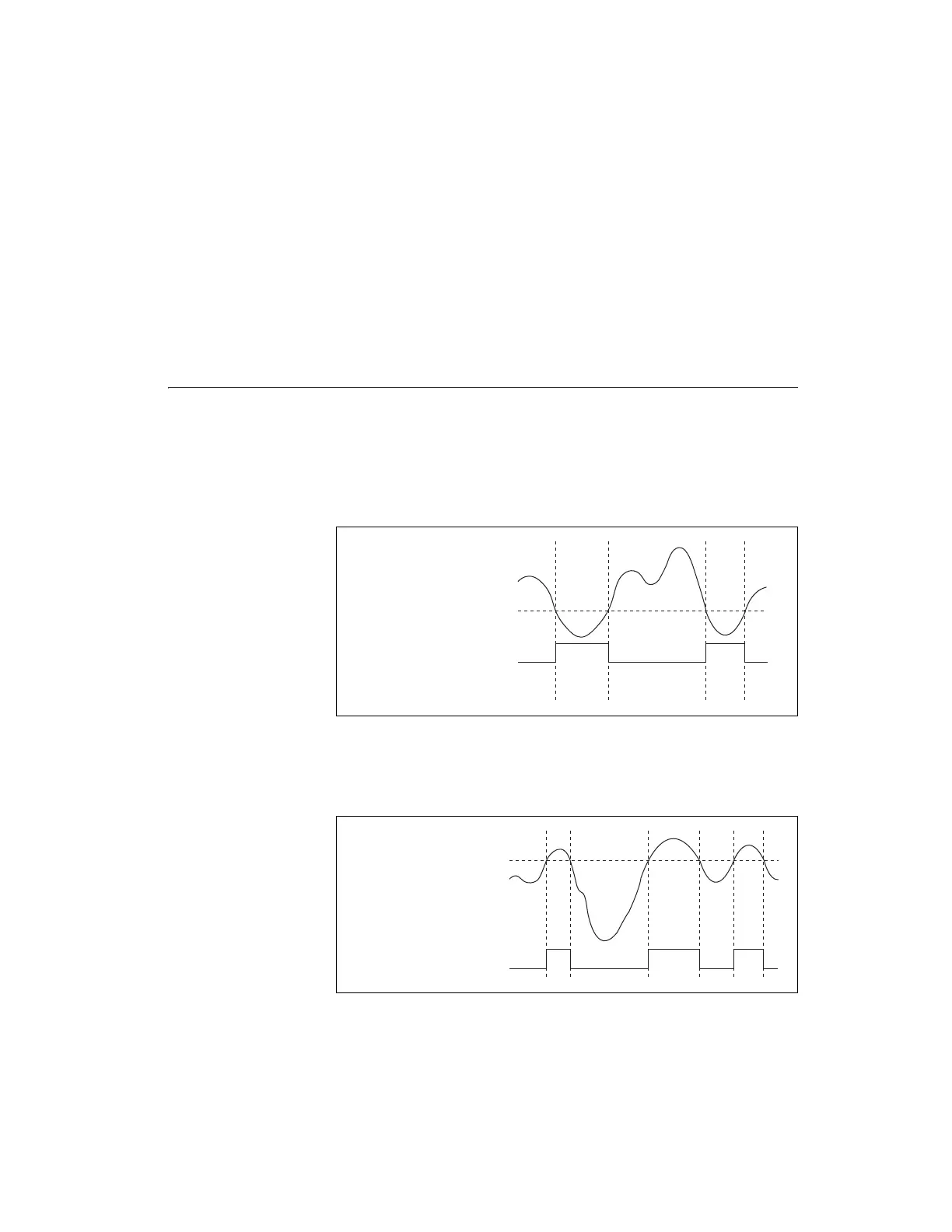

Figure 11-4. Below-Level Analog Triggering Mode
In above-level analog triggering mode, shown in Figure 11-5, the
trigger is generated when the signal value is greater than Level.
Figure 11-5. Above-Level Analog Triggering Mode
Level
Analog Comparison Event
Level
Analog Comparison Event
