Chapter 1 Getting Started
(USB-622
x/625x/628x Mass Termination Devices) To replace a broken fuse in the USB-62xx
Mass Termination, complete the following steps.
1. Power down and unplug the device.
2. Remove the USB cable and signal cable(s) from the device.
3. Loosen the four Phillips screws that attach the lid to the enclosure and remove the lid.
4. Replace the broken fuse while referring to Figure 1-10 for the fuse locations.

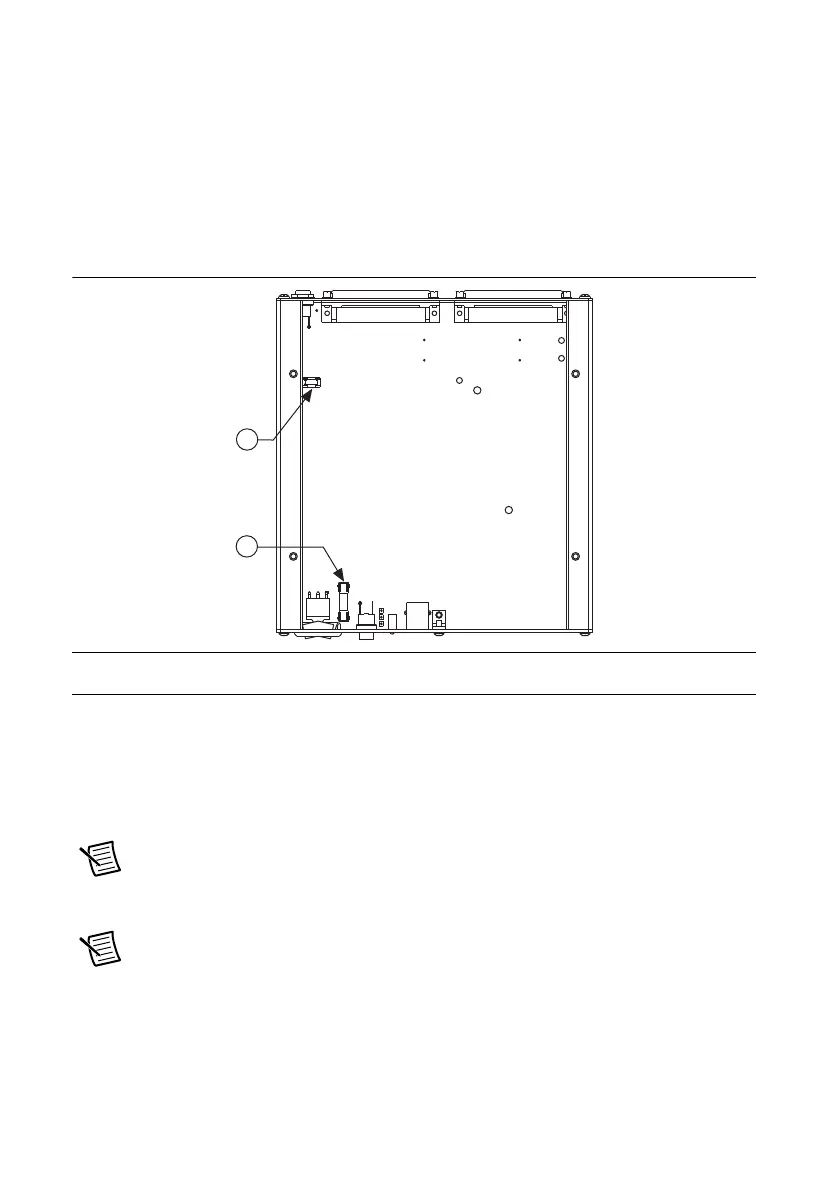

Figure 1-10. USB-62xx Mass Termination Fuse Locations
5. Replace the lid and screws.
USB Device Security Cable Slot
(USB-622x/625x BNC Devices) The security cable slot, shown in Figure 1-7, allows you to
attach an optional antitheft device to your USB device.
Note The security cable is designed to act as a deterrent, but may not prevent the
device from being mishandled or stolen. For more information, refer to the
documentation that accompanied the security cable.
Note The security cable slot on the USB-62xx BNC may not be compatible with all
antitheft cables.
1 T 2A 250V (5 × 20 mm) Fuse
2 Littelfuse 0453002 Fuse on USB-628
x Devices
