XLTEK Protektor32 Instructions for Use
69

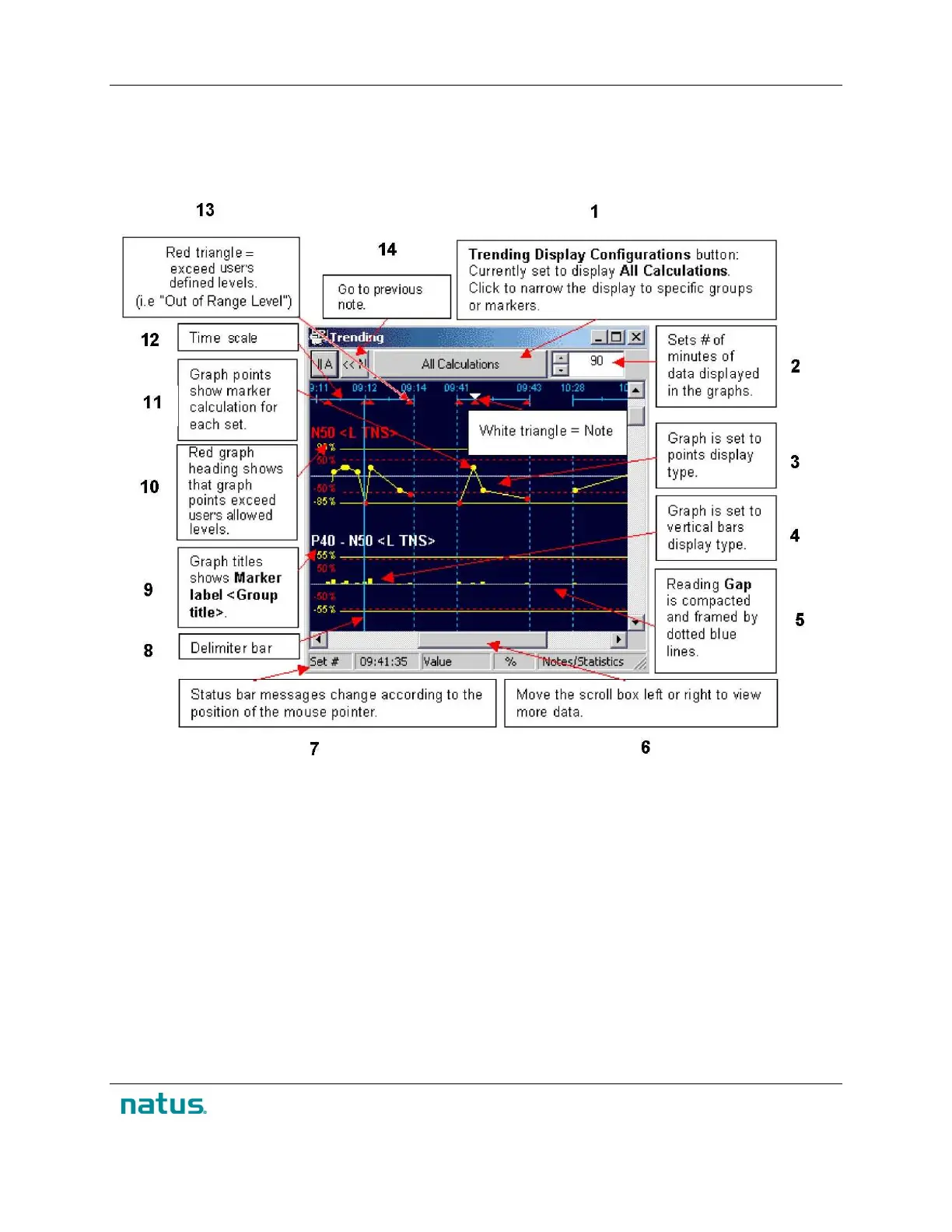

Trending Window Overview
The Trending window is used to display ordered sequences of calculations for the markers on each of
your tests.
1. Trending Display Configuration button:
Currently set to display All Calculations. Click to
narrow the display to specific groups or markers.
2. Sets number of minutes of data displayed in the
graphs.
3. Graphic is set to points display type. 4. Graphic is set to vertical bars display type.
5. Reading Gap is compacted and framed by
dotted blue lines.
6. Move the Scroll box left or right to view more
data.
7. Status bar messages change according to the
position of the mouse pointer.
8. Delimeter Bar
9. Graph Titles show Marker Label <Group
Title>.
10. Red graph heading shows that graph points
exceed user’s allowed level.
11. Graph points show marker calculation for
each set.
12. Time Scale
