22 | Wiring the radar system
4.2 Radar scanner 4 kW: Connect the optional interconnection
cable (AA010090/AA010091) to the scanner
• Unscrew and then remove the cover of the scanner, lifting it vertically to avoid bumping it
against the antenna.

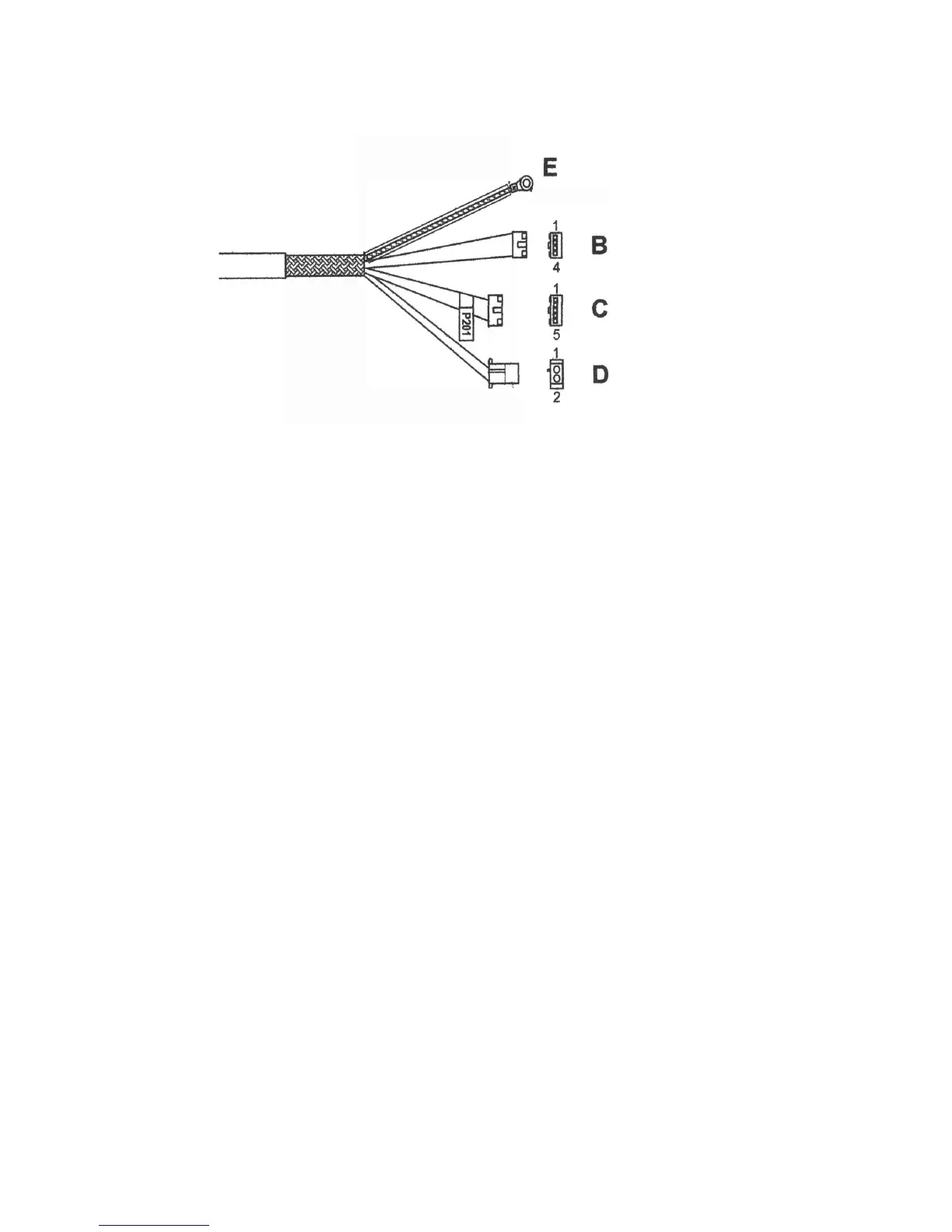

• Identify the connector ends B, C, D and E on the 4 kW interconnection cable (AA010090
or AA010091). Connector end E is an Earthing strap.
• Slacken or remove the strain relief clamp just inside the radome close to the cable entry
point.
• Place the locking nut, gasket A and gasket B over the connector end of the
interconnection cable in the order shown, then push the interconnection cable through the
cable entry point into the radome. (Ensure that you push through sufficient cable to
easily connect to the J connectors as described in the following step.
• At the cable entry point, take care that the grooves in gaskets A and B are opposite each
other (see the figure). Tighten the locking nuts to hold the scanner cable firmly in place
and to provide a waterproof seal.
