7.2 Connect the radar processor to a 6000i or 6100i display

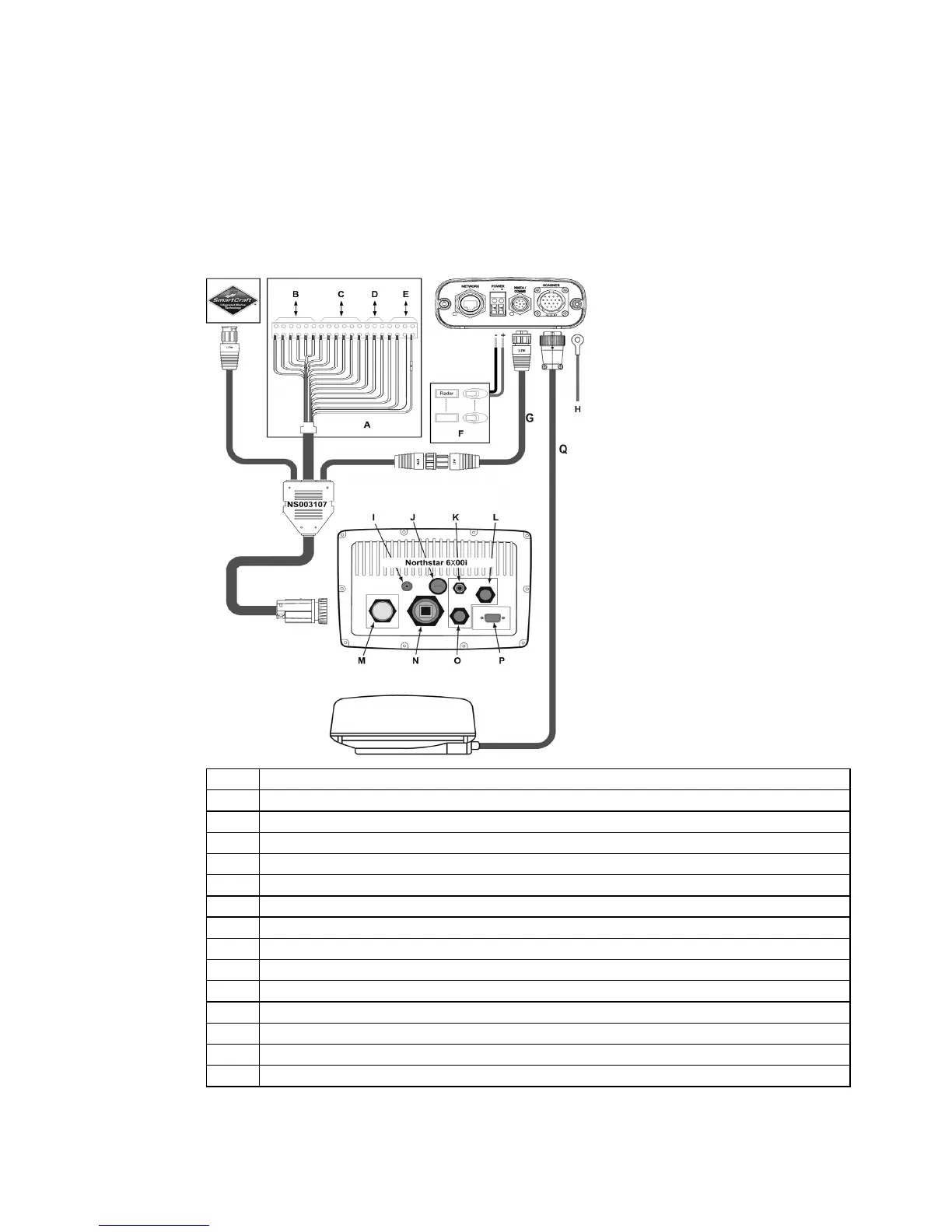

The following diagram shows the recommended method for connecting a radar processor to a
Northstar 6000i or 6100i display unit:
If you are connecting the radar to a Northstar 6000i or 6100i system, a 10 ft (3 m) radar
communications cable (NS003107) is supplied with the 6000i or 6100i system. If this is not
long enough, an optional 6 ft (1.8 m) extension cable (NS003108) can be added between the
radar processor and the 6000i. This extension cable is not supplied as standard, and must be
ordered separately.
B To NMEA Device 1
C To NMEA Device 2
D To Smartcraft
E Remote power
F Circuit breaker/fuse box
G Optional radar communications extension cable (NS003108)
H Vessel's Ground
I NTSC Video Input
J Fuse (7A)
K GPS antenna
L Power
M NMEA
N Ethernet
0 AUX
P VGA (out)
To Next Page
