7.4 Configure the remote power control for a 6000i or 6100i
(common power source)

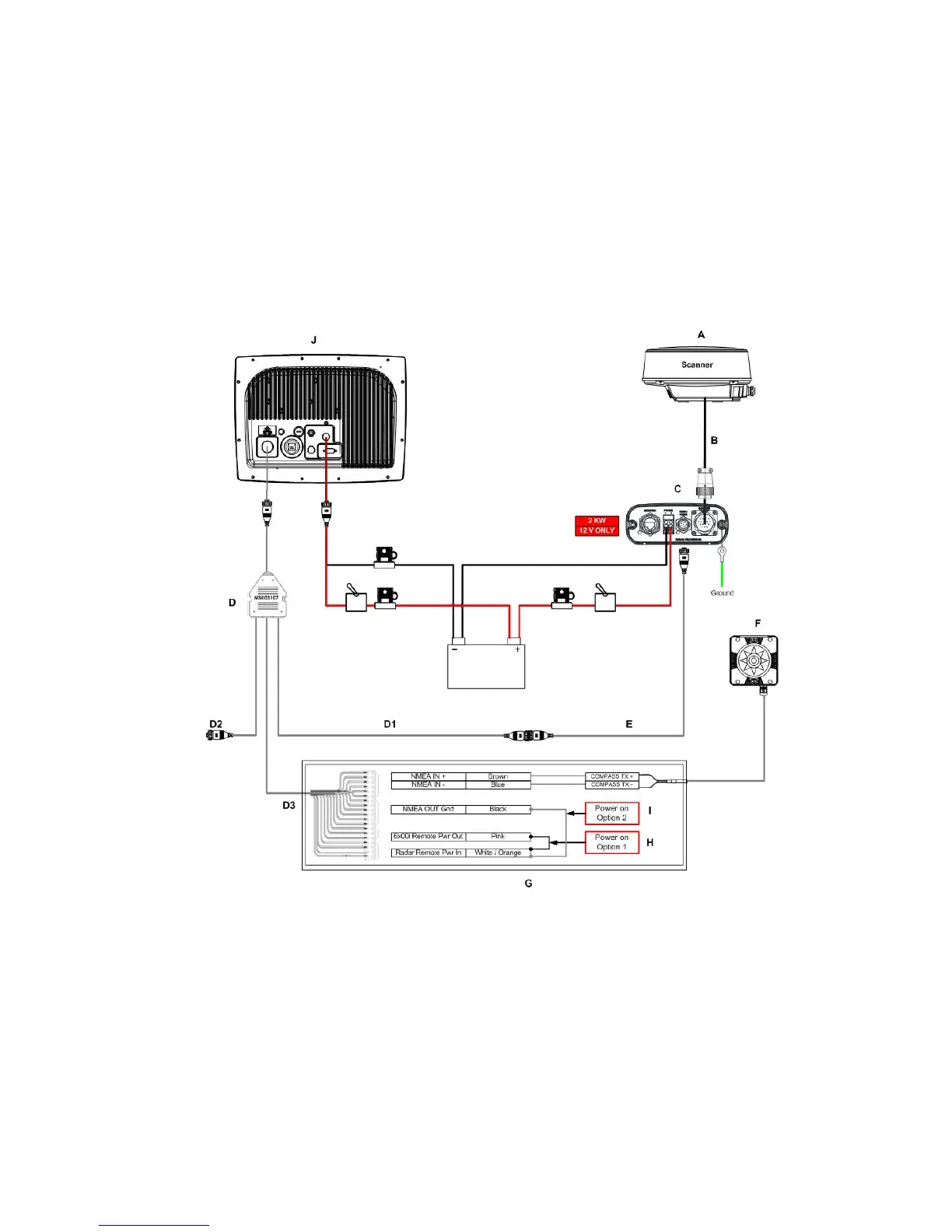

There is a choice of two different modes for powering the radar ON/OFF:
Power on Option 1
• If you want the radar to power ON automatically whenever the 6000i or 6100i is powered
ON, program the Honk Output as REMOTE PWR in the 6000i or 6100i. This option is
contained in the Alarms menu. (To access the Alarms menu, repeatedly press the * key until
the Alarms menu is visible.) You must also connect the Pink wire (Pin 14) to the
White/Orange wire (Pin 13) in the junction box.
Power on Option 2
• If you want the radar to power ON automatically when the radar processor is powered ON,
connect the White/Orange (pin 13) wire to a Black NMEA 2 ground (pin 10) in the junction
box.
Important: This remote power control option works correctly only when the 6000i or 6100i and
the radar processor share the same power earth and are located within 16.5 ft (5 m) of each
other.
To Next Page
