English-12
Operating Range for the Remote
Control
Points the top of the remote control toward the LCD monitor’s
remote sensor during button operation.
Uses the remote control within a distance of about 7 m (23 ft.)
from remote control sensor or at a horizontal and vertical
angle of within 30° within a distance of about 3.5 m (10 ft.).

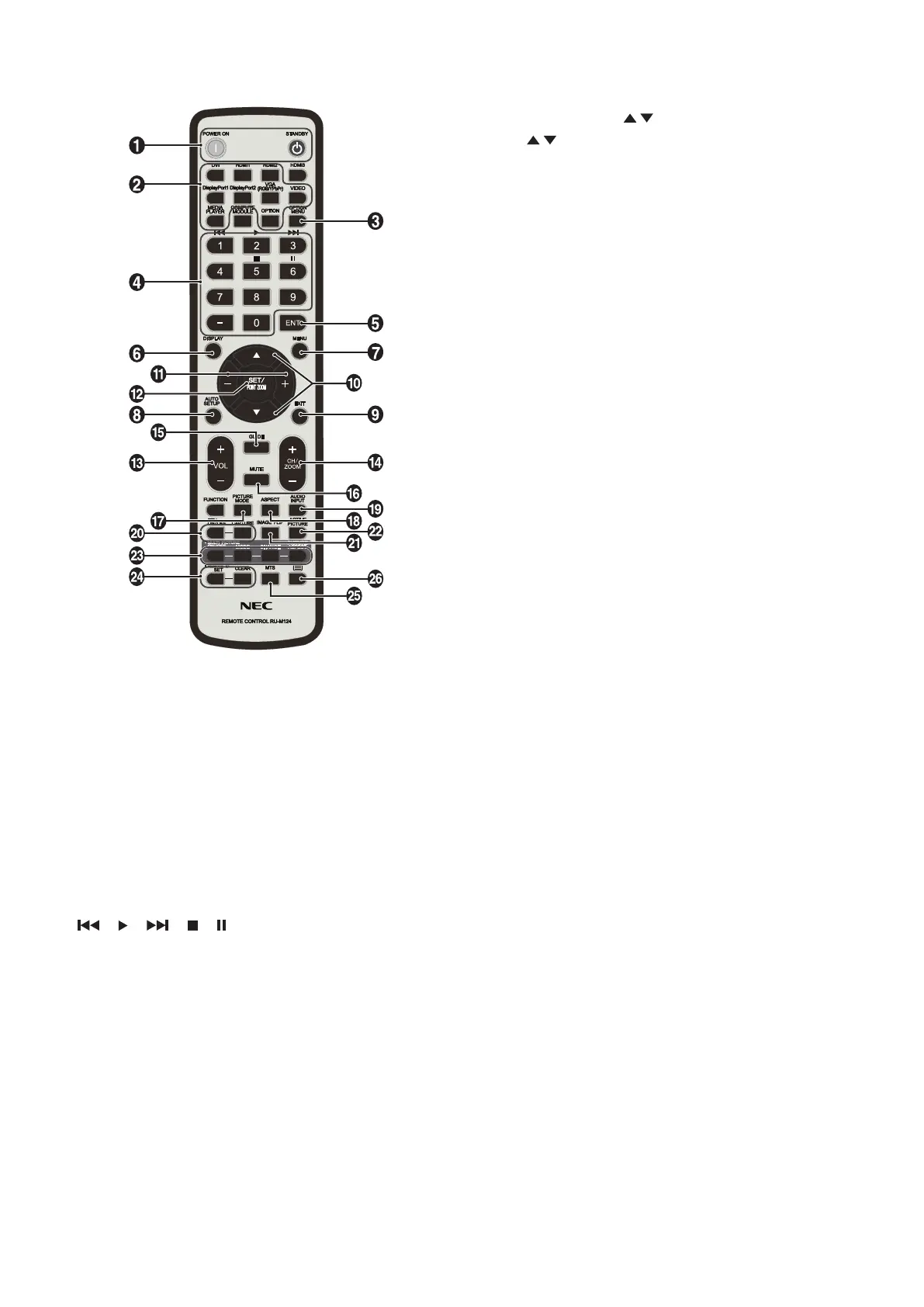

ACTIVE PICTURE button
Selects active picture.
MULTI PICTURE button
ON/OFF button: Toggle switches between ON and OFF.
See page 19.
MODE button: Selects a mode from PIP (picture in picture)
or PBP (picture by picture).
CHANGE button: Swaps images between two pictures.
PICTURE ASPECT button: Selects active picture frame
aspect.
NOTE: Enable to change each multi picture size by pressing
SET/POINT ZOOM button during multi picture mode.
REMOTE ID button
Activates REMOTE ID function. See page 45.
MTS button*
1
button*
1
Activates closed captioning.
NOTE: VIDEO input only.
*1: This button’s action depends on which option board you use.
Refer to the option board’s user’s manual for further information.
NOTE: The buttons with no explanation do not function.
Caution: Important, the remote control
system may not function when
direct sunlight or strong
illumination strikes the
remote control sensor or
when there is an object in
the path.
Handling the remote control
• Do not subject to strong shock.
• Do not allow water or other liquid to
splash the remote control. If the remote
control gets wet, wipe it dry immediately.
• Avoid exposure to heat and steam.
• Other than to install the batteries, do not open the remote
control.
