English-5
English

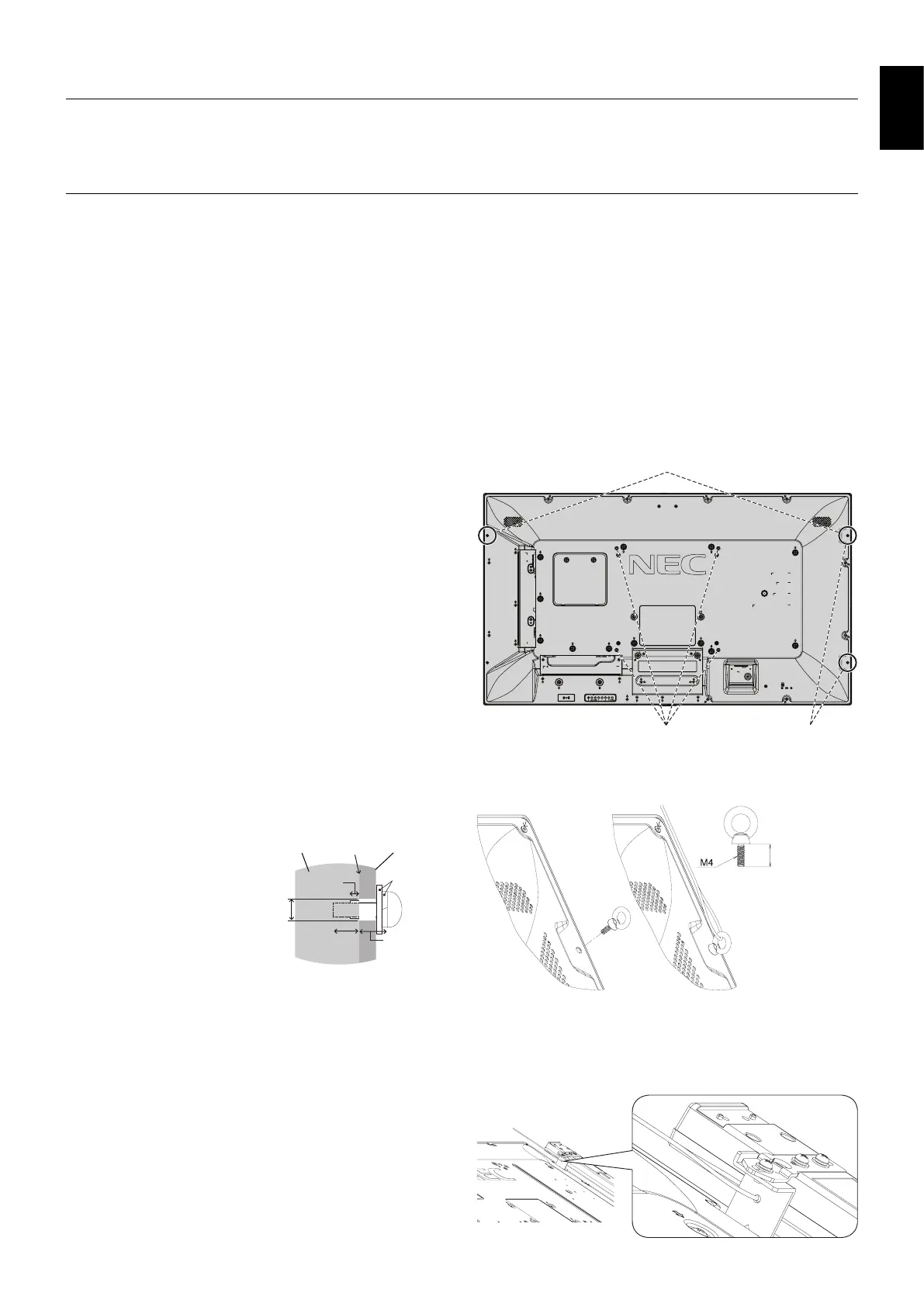

Optional speaker is installed on the side of the LCD monitor:
Mounting location
• The ceiling and wall must be strong enough to support the
monitor and mounting accessories.
• DO NOT install in locations where a door or gate can hit
the unit.
• DO NOT install in areas where the unit will be subjected
to strong vibrations and dust.
• DO NOT install near where the main power supply enters
the building.
• Do not install in where people can easily grab and hang
onto the unit or the mounting equipment.
• Allow adequate ventilation or provide air conditioning
around the monitor, so that heat can properly dissipate
away from the unit and mounting equipment.
Mounting on ceiling
• Ensure that the ceiling is sturdy enough to support the
weight of the unit and the mounting equipment over time,
against earthquakes, unexpected vibrations, and other
external forces.
• Be sure the unit is mounted to a solid structure within
the ceiling, such as a support beam. Secure the monitor
using bolts, spring lock washers, washer and nut.
• DO NOT mount to areas that have no supporting internal
structure. DO NOT use wood screws or anchor screws for
mounting. DO NOT mount the unit to trim or to hanging
fi xtures.
Maintenance
• Periodically check for loose screws, gaps, distortions,
or other problems that may occur with the mounting
equipment. If a problem is detected, please refer to
qualifi ed personnel for service.
• Regularly check the mounting location for signs of
damage or weakness that may occur over time.
Orientation
• When using the display in the portrait position, the
monitor should be rotated clockwise so that the left side
is moved to the top, right side is moved to the bottom.
This will allow for proper ventilation and will extend the
lifetime of the monitor. Improper ventilation may shorten
the lifetime of the monitor.
LED Indicator
• When using the display in the portrait position, the NEC
logo ornament position can be changed.
Changing NEC logo ornament position
Removing the logo ornament: unscrew the installed screw
then take off the logo ornament.
Attaching the logo ornament: adjust the protrusions inside of
the logo ornament into the protrusion hole on the bezel. Make
sure the hole for screw on the logo ornament and a hole for
screw on the bezel are much. Install the logo ornament with
the screw which is used for installing the logo ornament.
(Recommended Fasten Force: 30-40N•cm).
Inside of NEC logo ornament
Screw hole
Screw hole
Protrusion
Protrusion hole
CAUTION: Do not use any other screw to install the logo
ornament.
To Next Page
