3.4.3 WIEGAND, MAGSTRIPE, BARCODE CONNECTION
The synchronous communication interface wiring depends upon the selected
communication protocol and the reader firmware. Please refer to the firmware
manual for more details.

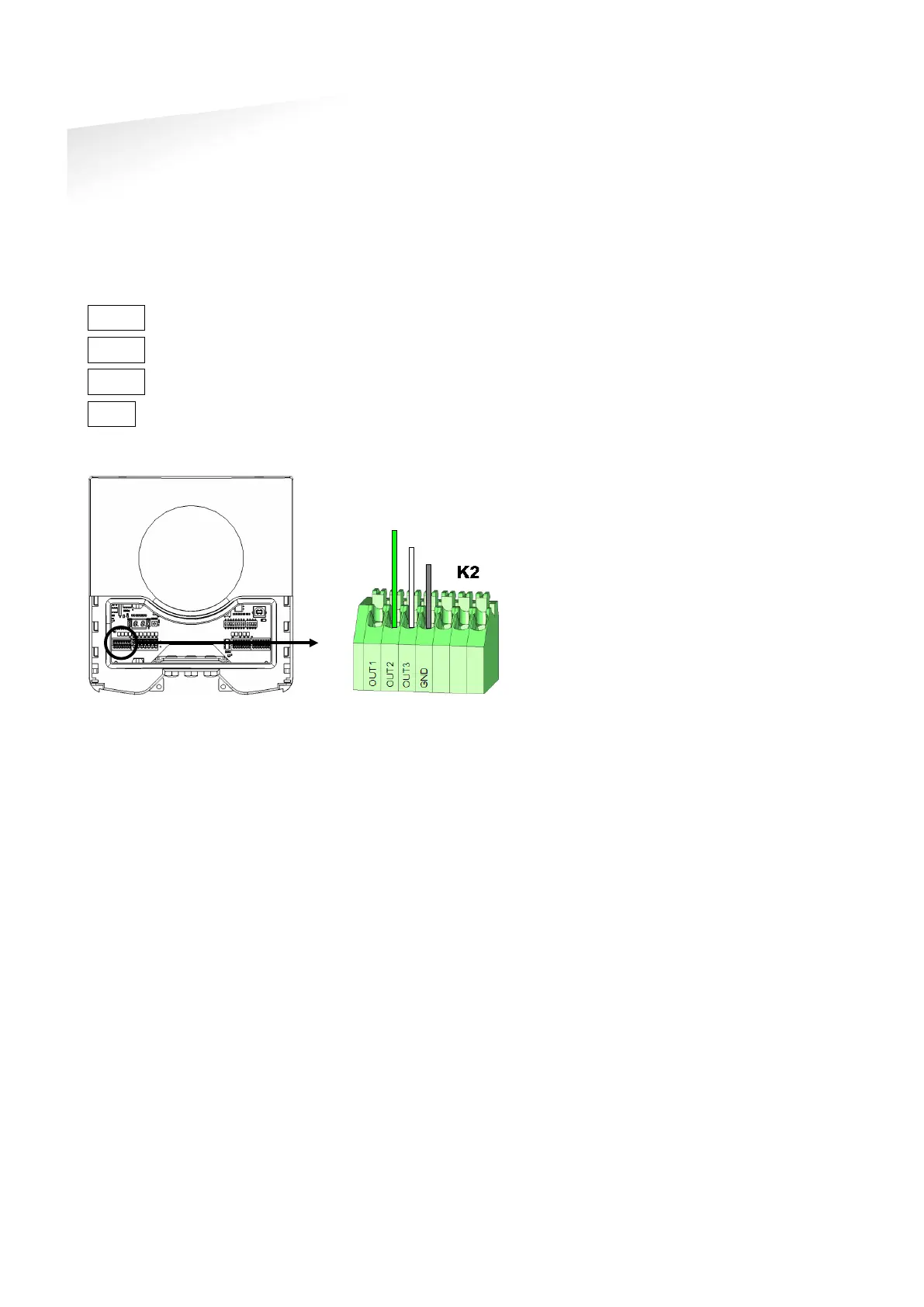

In Figure 12 the wiring for the Wiegand protocol is outlined.
Connections
WIEGAND
MAGSTRIPE
BARCODE
OUT1 - Card Loaded -
OUT2
Data-0 (green) Clock -
OUT3 Data-1 (white) Data Data
GND
Ground (black) Ground Ground
GND
DATA-1
DATA-0
Figure 12: Wiegand wiring
Note
Maximum cable length 150
meters (500 feet)
