TRANSIT ENTRY | INSTALLATION GUIDE

Connections

16/30

3.5.3 GENERAL PURPOSE INPUTS

Three general purpose inputs are available on the TRANSIT Entry reader. The inputs

are active low.

Connections

IN1 General purpose input 1

IN2

General purpose input 2

IN3 General purpose input 3

GND

Ground

General purpose inputs

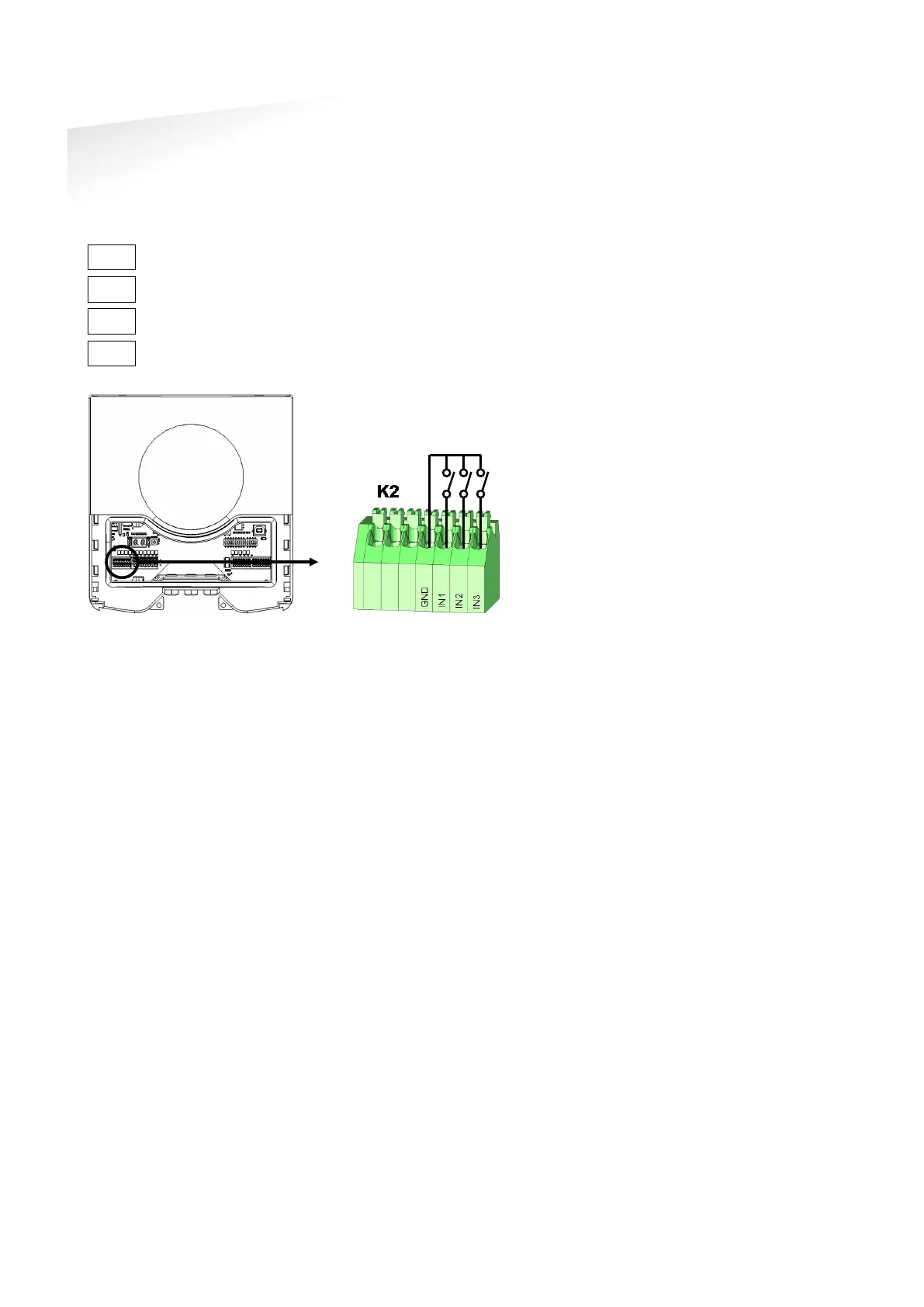

Figure 16: GPIO inputs
