WAN Service
The WAN Service page displays the current Wide Area Network service setup and allows you to configure the router to connect to a
larger network for Internet access.
WAN service require a preconfigured Layer 2 interface, be it ATM/PTM or Ethernet WAN.

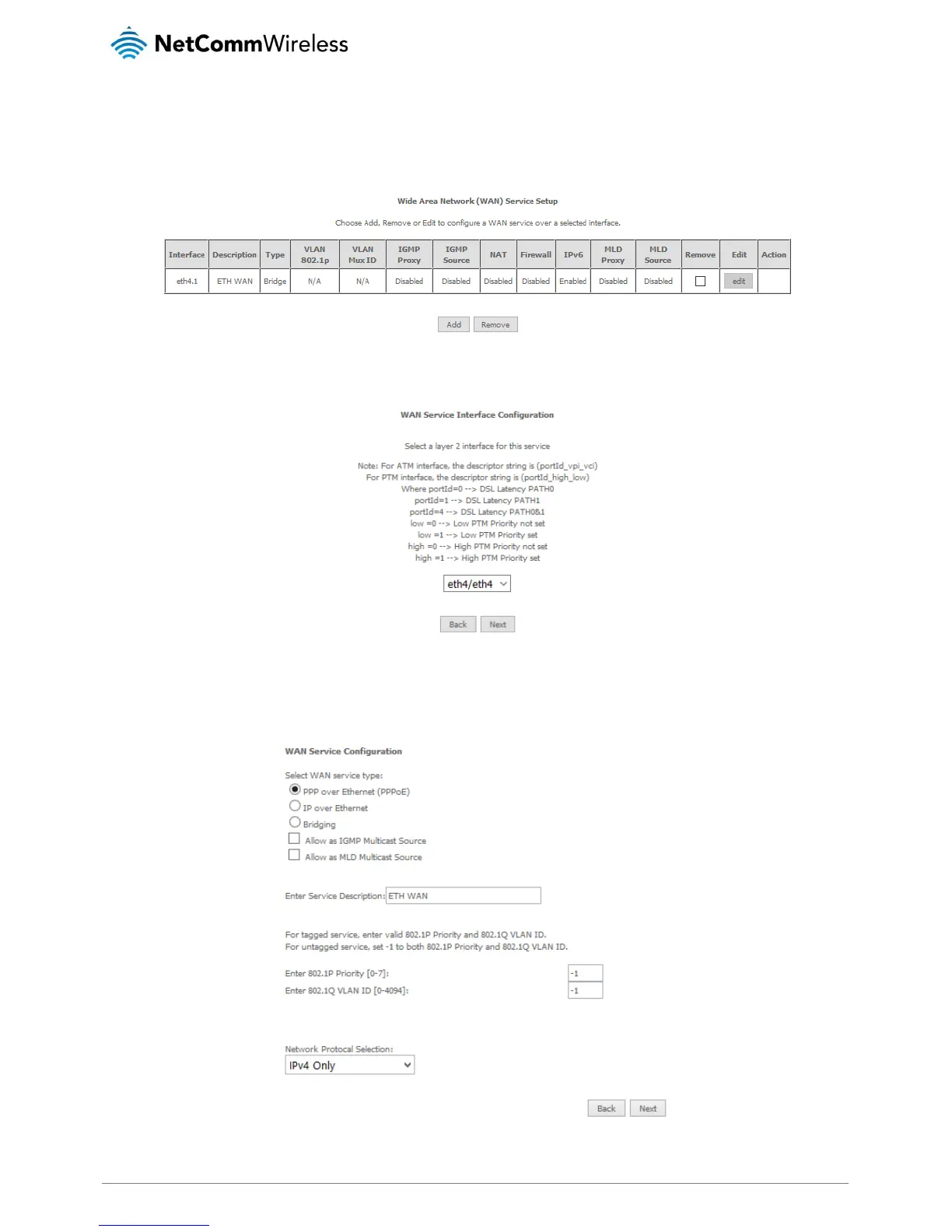

To add a WAN service, click the Add button. Use the drop down list to select the layer 2 interface to use for the WAN service and
click the Next button.
Select a WAN service type, enter a Service Description, enter the 802.1P Priority and 802.1 VLAN ID if required, then click the Next
button.
To disable VLAN tagging, place input value of -1. Refer to your ISP for VLAN information as required by your Internet Service
Provider.
