Hardware Setup
10
AC3200 WiFi Cable Modem Router
• WiFi. Pressing this button for two seconds turns the WiFi radios in the modem router on
and off. If this LED is lit, the WiFi radios are on. If this LED is off, the WiFi radios are
turned off and you cannot use WiFi to connect to the modem router.
Table 2. Front panel button descriptions
Button Description
LED Pressing this button changes the LED mode:
• Mode one.
All LEDs stay on and blink.
• Mode two. All
LEDs stay on but don’t blink.
• Mode three. Only the Power LED stays on and the other LEDs are of
f.
WPS Pressing this button lets you use WPS to join the WiFi network without typing the WiFi
password.
WiFi Pressing this button for two seconds turns the 2.4 GHz and 5 GHz WiFi radios on and off.
Rear Panel
The connections and button on the rear panel are shown in the following figure.
Power
EthernetCoaxial
Reset
LAN port
button
adapter
input
Power
On/Off
button
cable
connector

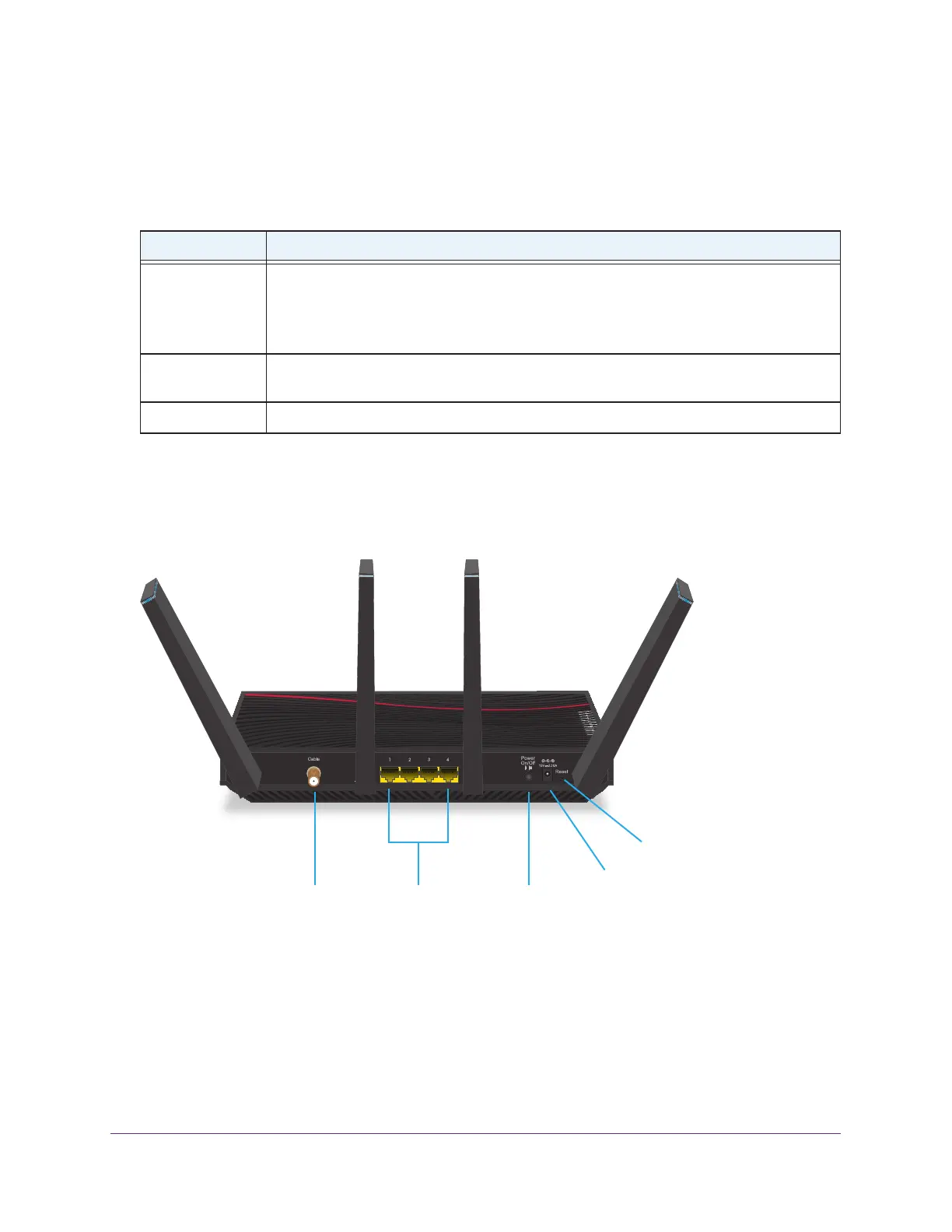

Figure 3. Modem router rear panel
