Manage Your Network
81
AC3200 WiFi Cable Modem Router
- Rx B/s. The current reception (inbound) bandwidth used on the WAN and LAN
ports.
- Up T
ime. The time elapsed since this port acquired the link.
- Poll Interval.
The interval at which the statistics are updated in this page.
6. T
o change the polling frequency, enter a time in seconds in the Poll Interval field and click
the Set Interval button.
7. T
o stop the polling entirely, click the Stop button.
Check the Internet Connection Status
To check the Internet connection status:
1. Launch a web browser from a computer or mobile device that is connected to the
modem router network.
2. Enter http://routerlogin.net or http://192.168.0.1.
A login window opens.
3. Enter the user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home page displays.
4. Click the ADV
ANCED tab.
The Advanced page displays.

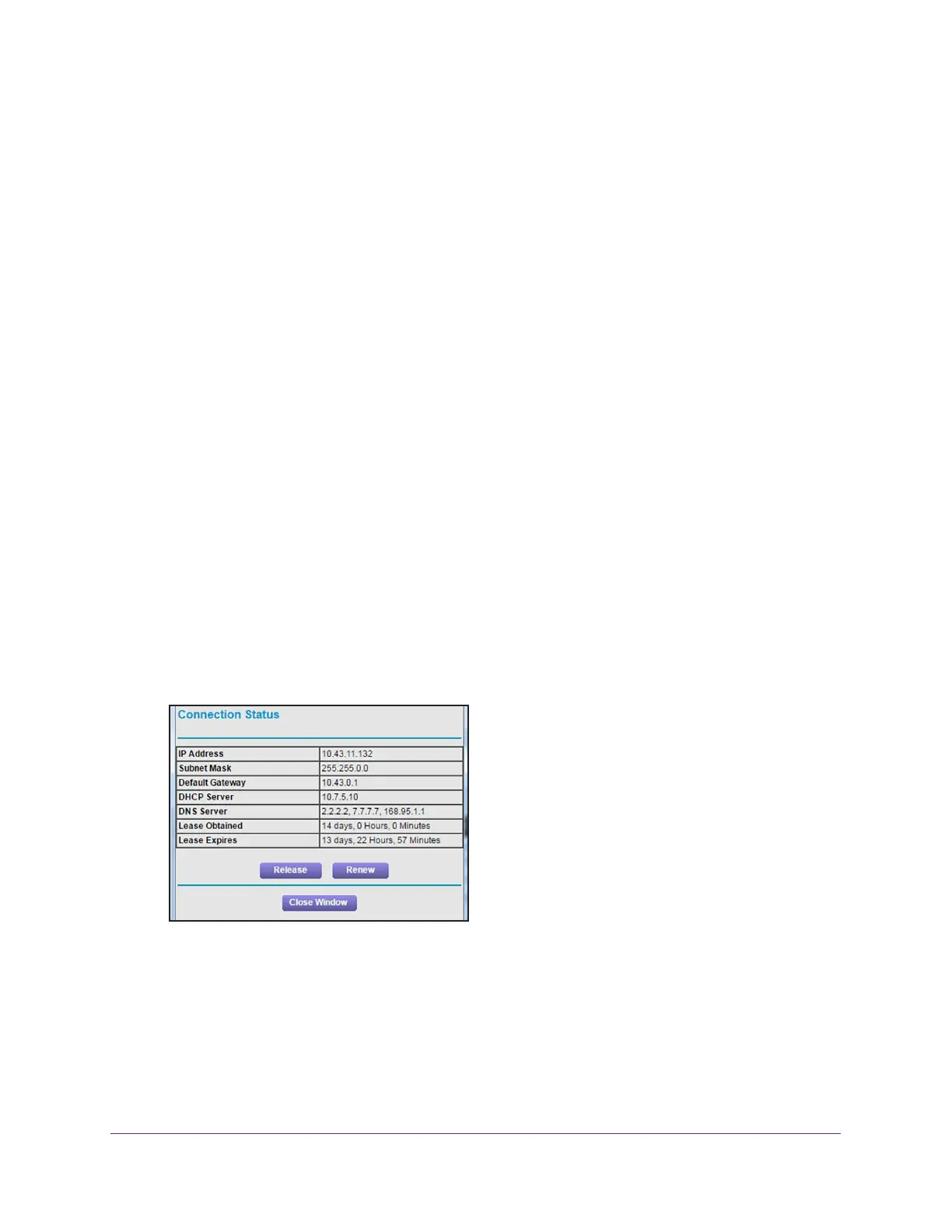

5. In the Internet Port pane, click the Connection Status button.
The following information displays:
• IP Address.
The IP address that is assigned to the modem router.
• Subnet Mask.
The subnet mask that is assigned to the modem router.
• Default Gateway.
The IP address for the default gateway that the modem router
communicates with.
