Manage Your Network
80
AC3200 WiFi Cable Modem Router
5. For information about the displayed settings, click the Show/Hide Help Center link at the
bottom of the page.
Display Internet Port Statistics
To display Internet port statistics:
1. Launch a web browser from a computer or mobile device that is connected to the
modem router network.
2. Enter http://routerlogin.net or http://192.168.0.1.
A login window opens.
3. Enter the user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home page displays.
4. Click the ADV
ANCED tab.
The Advanced page displays.

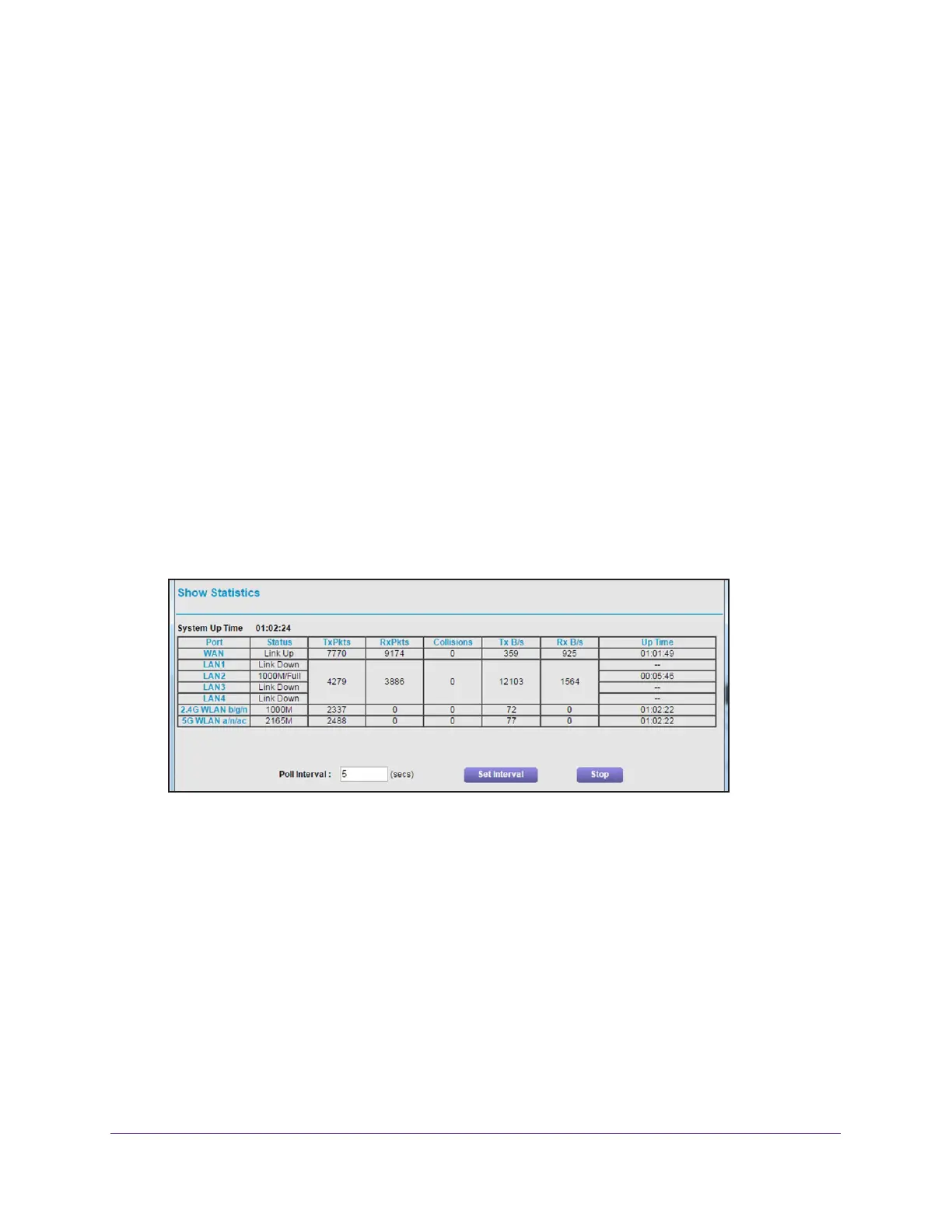

5. In the Internet Port pane, click the Show Statistics button.
The following information displays:
• System Up T
ime. The time elapsed since the modem router was last restarted.
• Port.
The statistics for the WAN (Internet) and LAN (Ethernet) ports. For each port,
the page displays the following:
- Status.
The link status of the port.
- TxPkts.
The number of packets transmitted on this port since reset or manual
clear.
- RxPkts.
The number of packets received on this port since reset or manual clear.
- Collisions.
The number of collisions on this port since reset or manual clear.
- Tx B/s.
The current transmission (outbound) bandwidth used on the WAN and
LAN ports.
