4-3installation
Installing the Switch
You can install the NETGEAR FS726 and FS750 Switches on a flat surface or in a
standard 19-inch rack.
Installing the Switch on a Flat Surface
1. The switch ships with four self-adhesive rubber footpads. Affix one rubber footpad
on each of the four concave spaces on the bottom of the switch.The rubber
footpads cushion the switch against shock/vibrations.
Installing the Switch in a Rack
To install the FS726 or FS750 Switch in a rack, use the following procedure (and refer
to Figure 4-1).To perform this procedure, you need the 19-inch rack-mount kit supplied
with your switch.
1. Attach the supplied mounting brackets to the side of the switch.
2. Insert the screws provided in the rack-mount kit through each bracket and into the
bracket mounting holes in the switch.
3. Tighten the screws with a #1 Phillips screwdriver to secure each bracket.
4. Align the mounting holes in the brackets with the holes in the rack, and insert two
pan-head screws with nylon washers through each bracket and into the rack.
5. Tighten the screws with a #2 Phillips screwdriver to secure the switch in the rack.
6. Proceed to "Connecting Devices to the Switch."
M
O
D
E
L

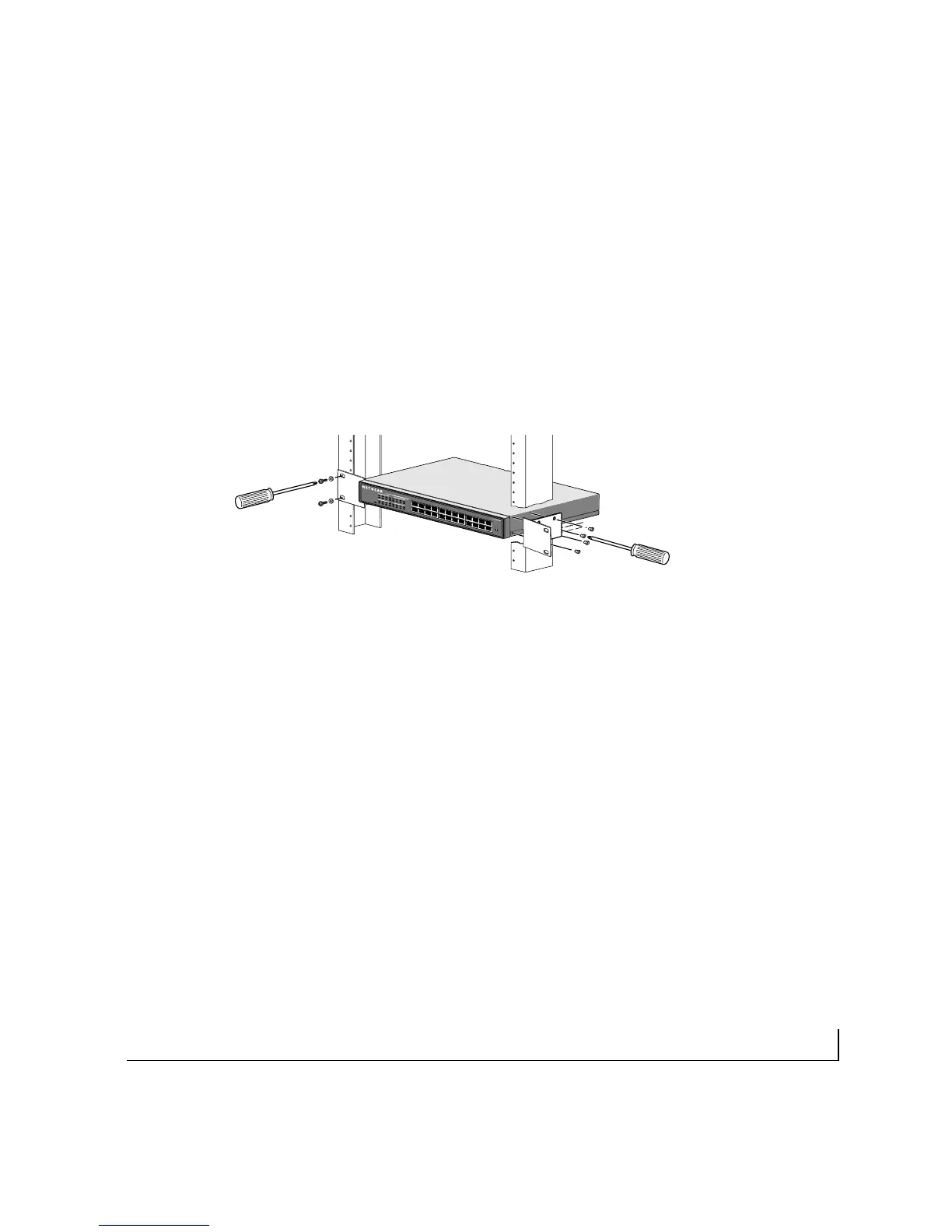

Figure 4-1.Attaching Mounting Brackets
