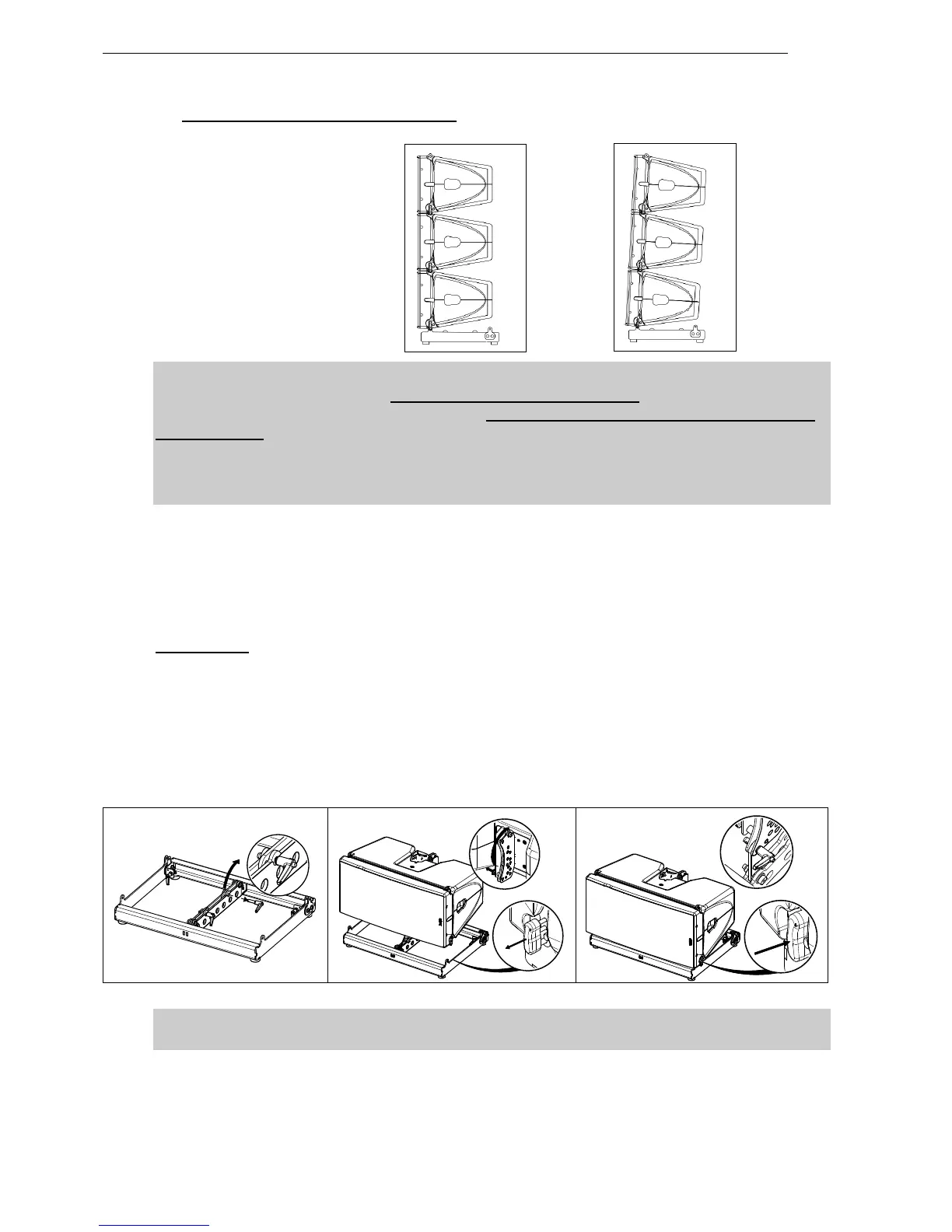

Page 32/90 GEO M12 HARDWARE SETUP PROCEDURE
6.3.2 GEO M12 only on Lightweight Bumper
Required item
- 1 x GMT-LBUMPM12
IMPORTANT
GMT-LBUMPM12 is rated for a maximum of 3 stacked GEO M12 in any inter cabinet
angle configuration with 0/+3° initial angle, provided the stack is assembled according
to below rules:
- GMT-LBUMPM12 must always be installed on a horizontal surface
- Public is not allowed within a safety area which radius is equal or higher than assembly
height.
Procedure
GMT-LBUMPM12 can be flipped front and back depending if it connects to GEO M12 Right or Left.
- When connecting GEO M12 Left, bumper front is on the “G” hole index side
- When connection GEO M12 Right, bumper front is on the “A” hole index side
GEO M12 Left
- Set the bumper on the ground so that front is on the “G” hole side
- Remove the BL825 quick release pin of rear GMT-LBUMPM12 link bar, and rotate it upwards
- Release first GEO M12 link bar, and set AutoRig in automatic lock position
- Position first GEO M12 on top of the bumper, front points will lock automatically
- Connect the bumper link bar (selection of / +3°) to GEO M12 rear rigging plate (hole marked
“bumper”) Lock with the quick release pin BL0825.
IMPORTANT
Ensure that all AutoRig
TM
systems are locked
