Nexo Ray Sub Series User Manual

RS15 GENERAL INSTRUCTIONS Page 11/58
2.2 Mounting Optional Accessories
IMPORTANT
IN ORDER TO PREVENT SCREWS FROM GETTING LOOSE, USE BLOCKING LIQUID LOCTITE
TM
243 OR EQUIVALENT FOR ALL SCREWS USED WITH RS15 ACCESSORIES.
2.2.1 RS15 Handles
• Tools: TORX #50
• Remove the four screws on each side of RS15
• Fill each screw hole with Loctite 243 or equivalent;
• Position spacers and handles according to below drawing (vertical opening must be aligned with
connector panel or owner’s plate)
• Insert the four washers and screws provided with the RS15-HANDLES kit and tight them.

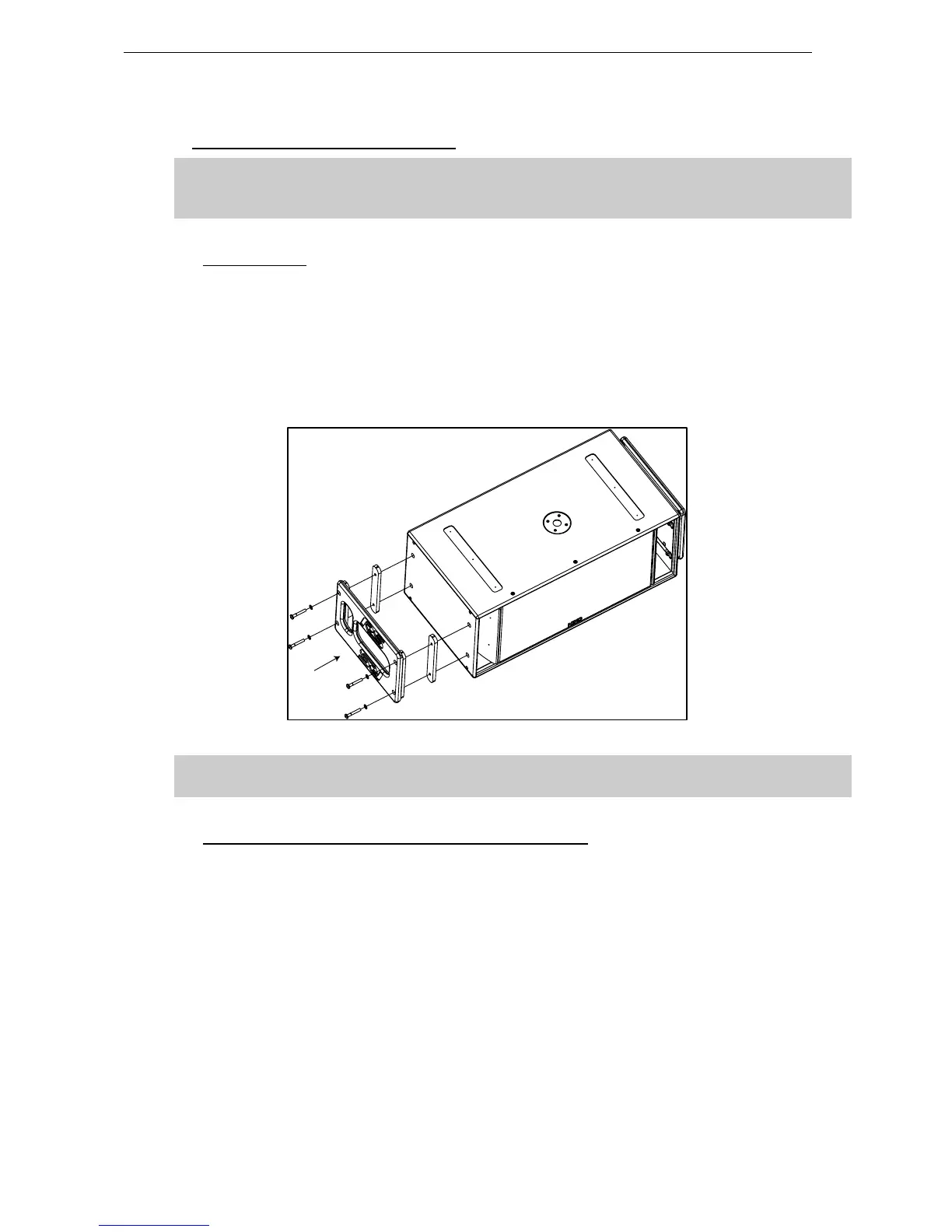

INSTALLING RS15 HANDLES
IMPORTANT
RS15 handles must not be used to fly RS15’s (through illegal use of straps for example)
2.2.2 RS15 Flying Plates with handles (touring applications)
IMPORTANT
• Tools: TORX #50
• Remove the four screws on each side of RS15;
• Fill each screw hole with Loctite 243 or equivalent;
• Position flying bars so that articulated link bars are opposite to skids, ie at the top of the cabinet;
• Position handles according to below drawing (vertical opening must be aligned with connector
panel or owner’s plate);
• Insert the four washers and screws provided with the RS15-FLPLATES kit and tight them (torque
value must be 10 Nm minimum).
