Page 54/58 RS15 TECHNICAL SPECIFICATIONS
GeoD Passive mode
Crossover 80Hz
SENSE INPUT
(from amp terminals)
BALANCED OUTPUTS
+ 4
-
+ 3
-
+ 2
-
+ 1
-
RS232
FLOATING BALANCED INPUTS
Channel 4 Channel 3 Channel 2 Channel1 B (RIGHT) A (LEFT)
MADE IN FRANCE
115- 230V 50-60Hz 45W
CAUTION !
To reduce the risk of electric schock, grounding
of the center pin of this plug must be maintained.
NX242
NX242 TDcontro
03105
sept.04
NXtension-ES
In Rx
In Tx
Out Rx
Out Tx
Out In

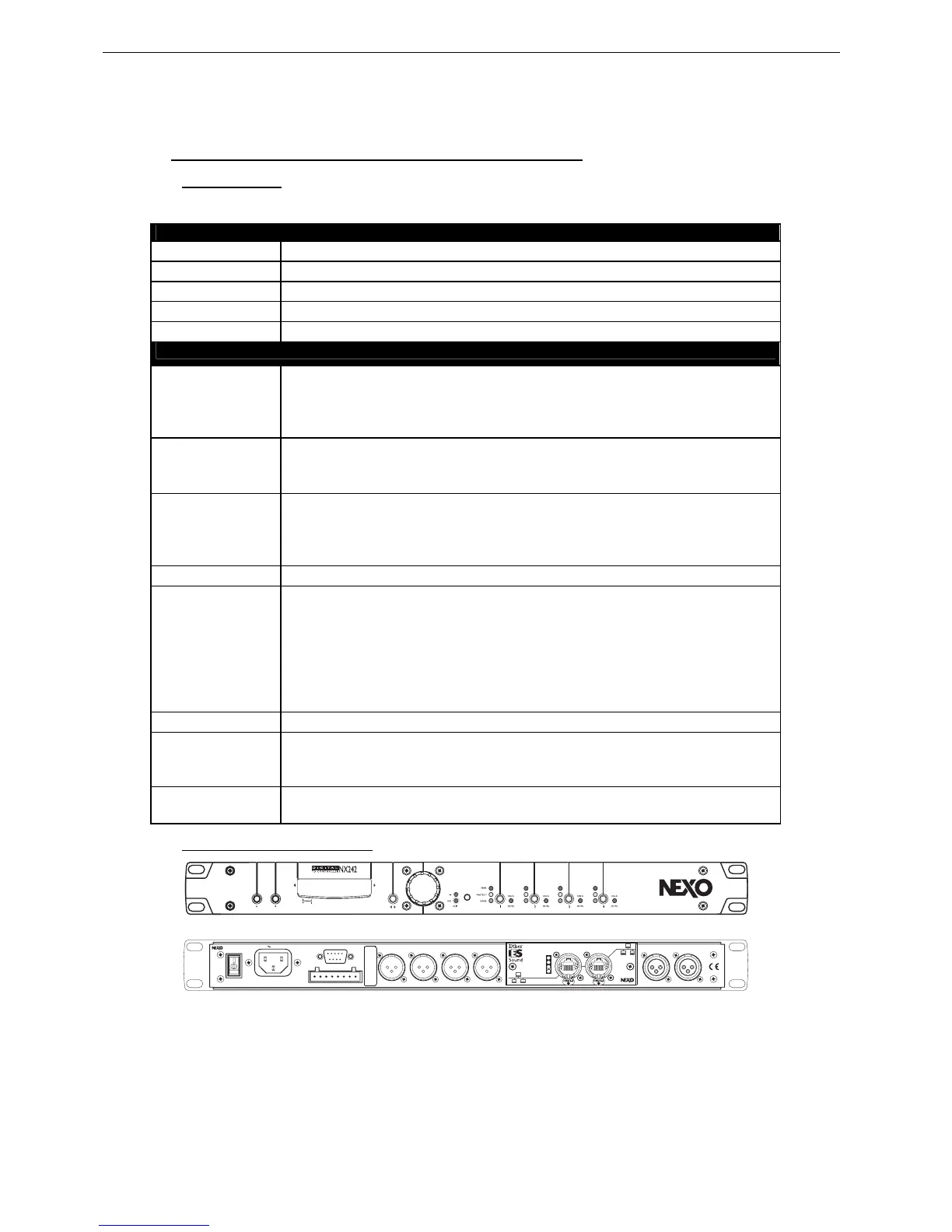

10.6 NX242 Digital TDController with NX-Tension Card
10.6.1 Specifications
SPECIFICATIONS
Output Level +28 dBu Max. into 600 Ohm load
Dynamic Range 110 dBu
THD + Noise < 0.002% flat setup (for output at 27.5dBu)
Latency time 1.7ms on a flat setup
Power Supply 90V-260V
PRODUCT FEATURES
Audio Inputs 2 Audio Inputs 24 bit converters
Electronically Balanced, 50k Ohm.
2 XLR-3F Connectors.
4 Digital Ethersound Inputs with NXTension ES4 Card
Sense Inputs 4 Amplifier Sense Inputs
Floating 150 kΩ. 18 bit converters
8 Pole Removable Strip Terminal.
Audio Outputs 4 Audio Outputs. 24 bit converters
Electronically balanced, 50 Ohm
4 XLR-3M connectors
4 Digital Ethersound Outputs with NX-ES4 Card (enabled for compatible amplifiers only)
Processing 24 bit data with 48-bit accumulator. 200 MIPS
Front Panel
Menu A and Menu B buttons
16 characters by 2 lines display
Select Wheel & Enter button ()
IN Clip – DSP Clip red LED’s
Speaker Protection yellow LED for each channel
Individual Mute/Solo buttons and red LED for each channel
Amp. Sense & Peak (green & red) LED’s for each channel
FLASH EPROM Software updates/upgrades, new system setups, available on www.nexo-sa.com
Rear Panel RS232 connector for serial com
2 x RJ45 connectors with NXTension ES4 Card
1 RJ45 + 2 RJ11 with NXTension CAI Card
Dimensions & Weight 1U 19" Rack - 230 mm (9") Depth.
4 kg
10.6.2 Front and Rear Panel view
