RS15 GENERAL INSTRUCTIONS Page 13/58
2.2.4 RS15 Dolly
IMPORTANT
1- TRANSPORTING RS15 ON DOLLY REQUIRES THAT FLYING PLATES ARE INSTALLED
ON ALL CABINETS SO THAT RS15’S CAN BE SECURED TOGETHER:
2- RS15 DOLLY IS DESIGNED FOR UP TO 3 RS15’S AND BUMPER;
NEVER EXCEED THESE QUANTITIES.

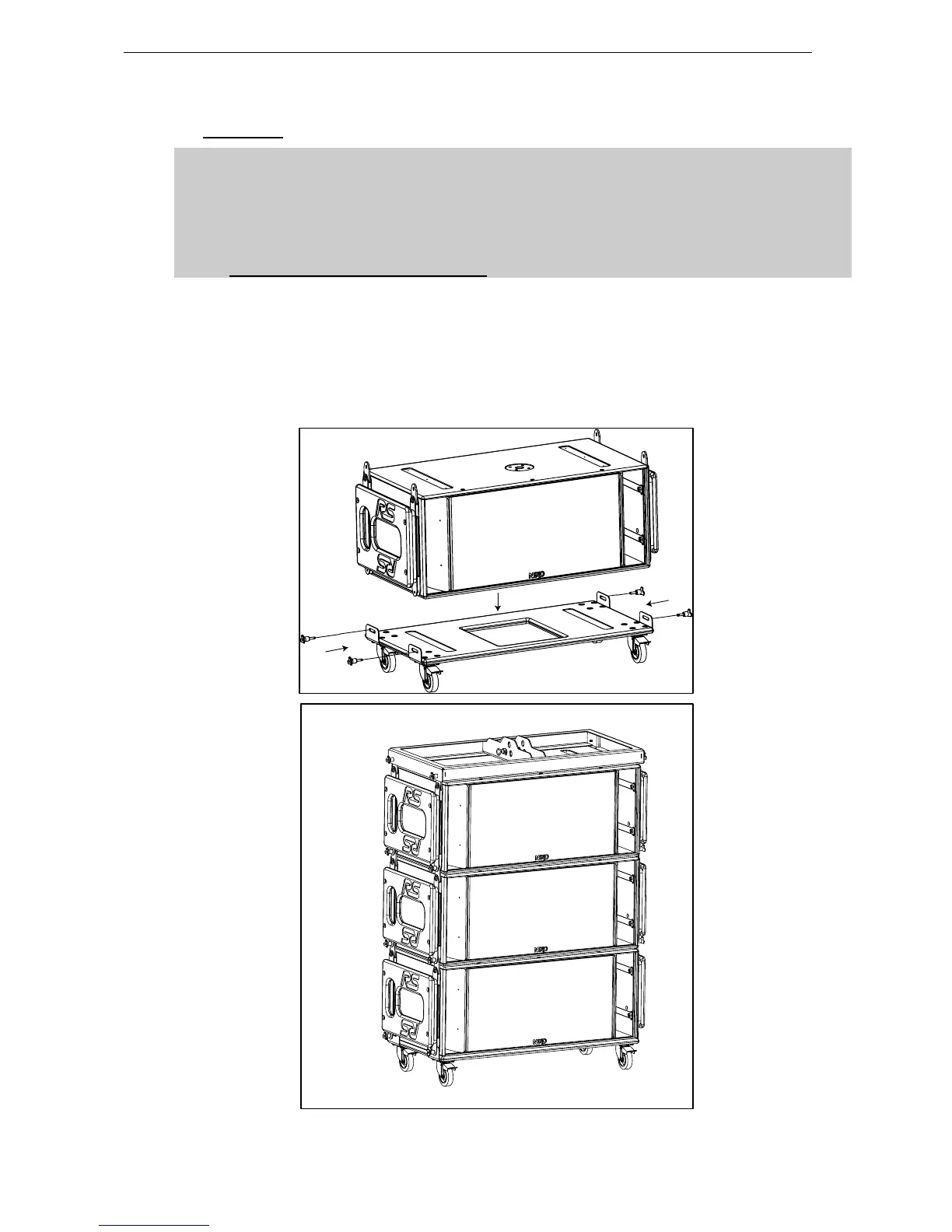

• The first RS15 must be locked to the RS15 dolly using four push-pins according to below
drawing;
• Subsequent RS15s are stacked on top using four push-pins per additional cabinet to secure the
assembly;
• Bumper is to be attached to the top cabinet.
