RAY SUBS IMPLEMENTATION Page 41/58
8.3.3 Coverage result

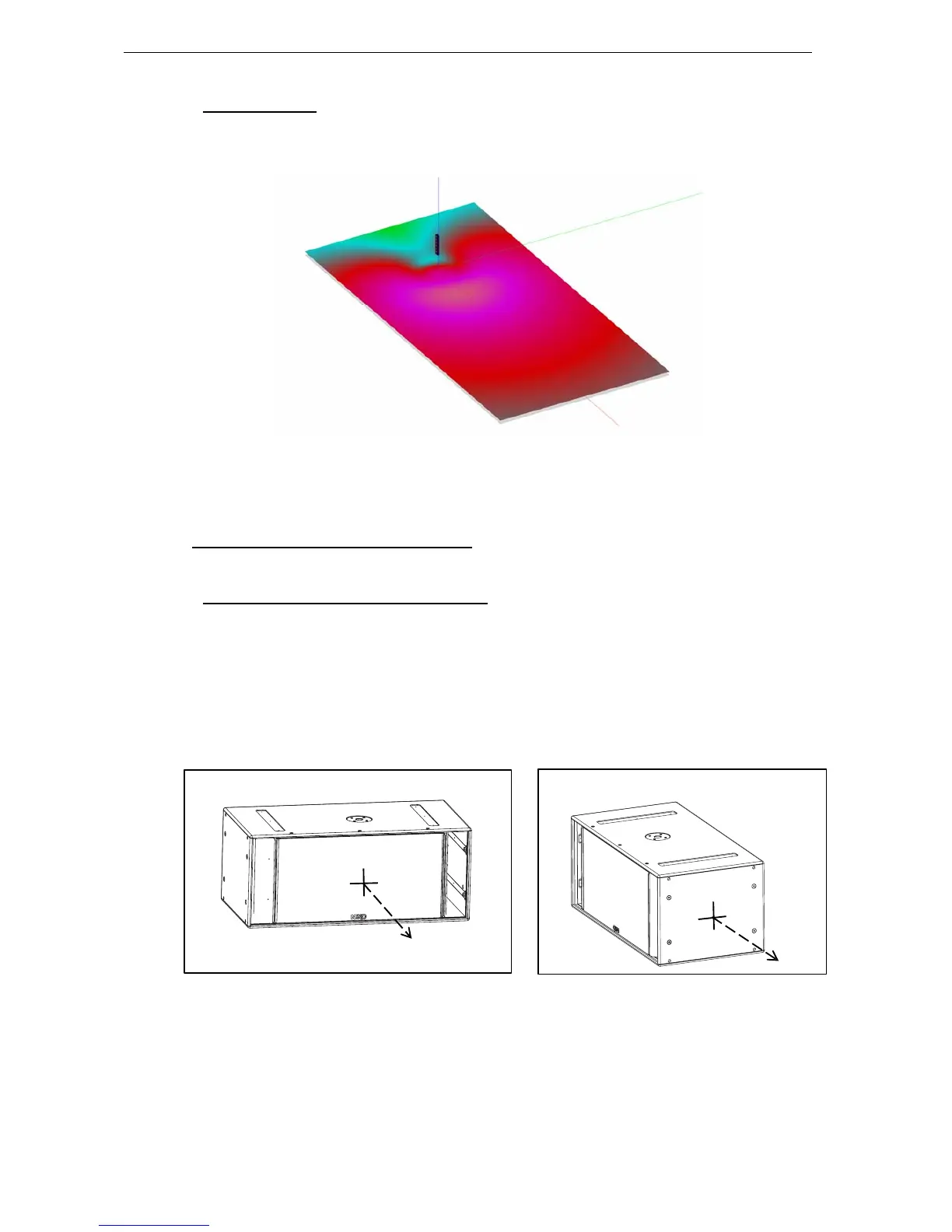

Below figure shows coverage control over distance with a “steering” delay sequence corresponding to a
15° tilt down.
12 RS15 “ALTERNATE” CLUSTER OVER 75M/200FT, STEERED 15° DOWN
8.4 Aligning RS15s with main system
8.4.1 NEXO systems acoustic reference point
The NX TDControllers factory presets are optimised to provide the best possible crossover between the
RS15’as and PS8/PS10/PS15, GeoS8/Geo12 systems. These crossover algorithms are defined for
speaker acoustic reference points being aligned.
The acoustic reference point on all NEXO products is the front of each cabinet, therefore:
• RS15’s reference point in Omni Mode is center of the front grid
• RS15’s reference point in Directional Mode is center of the face opposite to connector panel.
RS15 REFERENCE POINT IN OMNI MODE RS15 REFERENCE POINT IN DIRECTIONAL MODE
