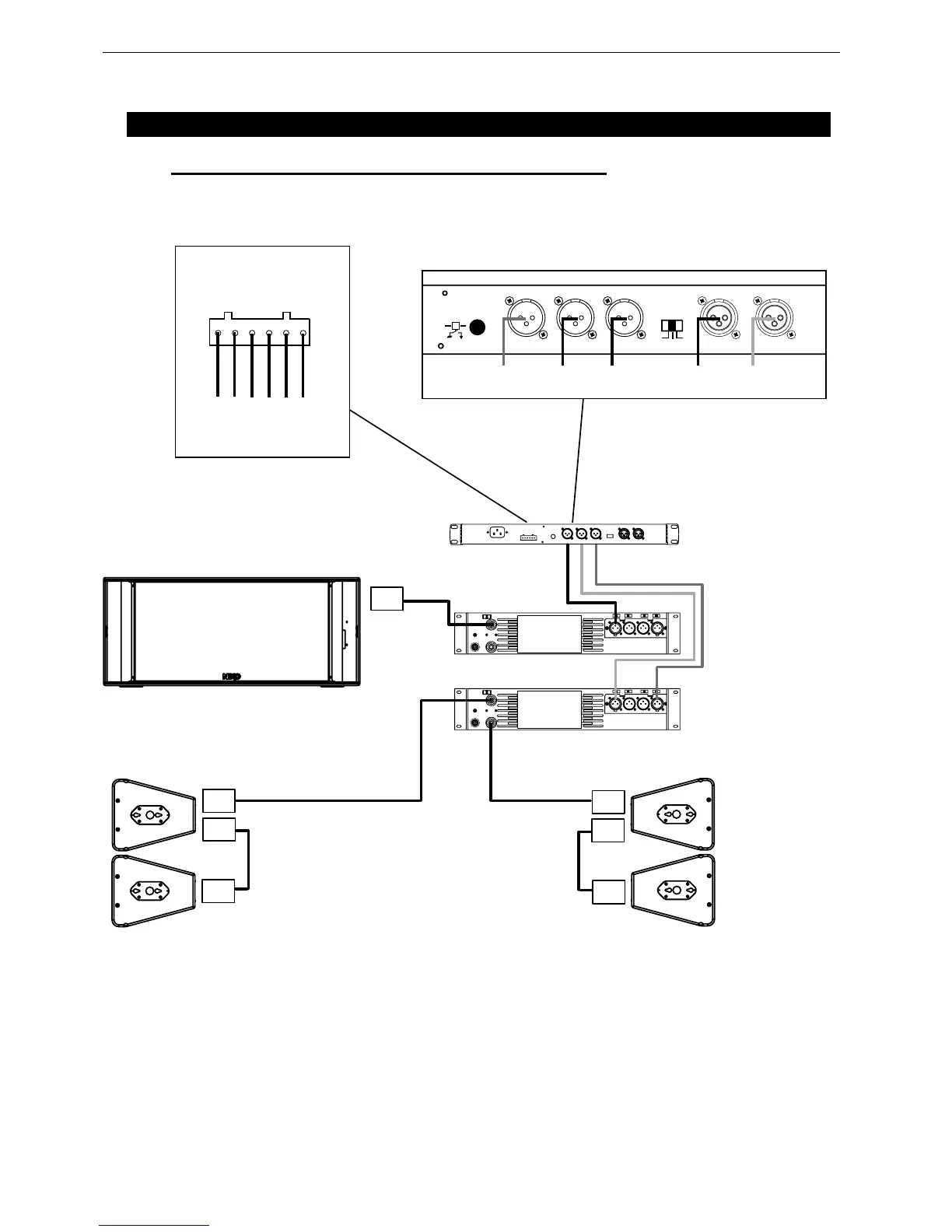

5 CONNECTION DIAGRAMS
5.1 RS15 with GEOS12 TDController (Mono Omni Mode)
AMPLIFIER 1
AMPLIFIER 2
MONO
STEREO
Speakon 4
1 (+) / 1 (-) VLF1 *
2 (+) / 2 (-) VLF2 *
Speakon 4
Speakon 4
Speakon 4
Speakon 4
1 (+) / 1 (-) N.C.
2 (+) / 2 (-) FULL RANGE
Speakon 4
1 (+) / 1 (-) VLF
2 (+) / 2 (-) N.C.
TO AMPLIFIERS
B ALANC E D IN P UT S
RIGHT
LEFT
-
6dB
-
12dB
0dB
OUT P UT
L
E V E L
B ALANC E D OUT P UT S
RIGHT LEFTSUB L+R
E A R TH
LI
F T
FROM AMPLIFIERS
+ 3-
+ 2 - + 1 -
S E N S E IN P UT
(from amp terminals)
CAUTION !
Sense must be connected for
speaker protection
SEE USER MANUAL
STEREO
IN
GEOS12 LEFT
GEOS12 RIGHT
SUB OUT
GEOS12 LEFT
GEOS12 RIGHT
SUB
* VLF1 and VLF2 on one amplifier channel
