Nexo Ray Sub Series User Manual

RS15 RIGGING INSTRUCTIONS Page 29/58

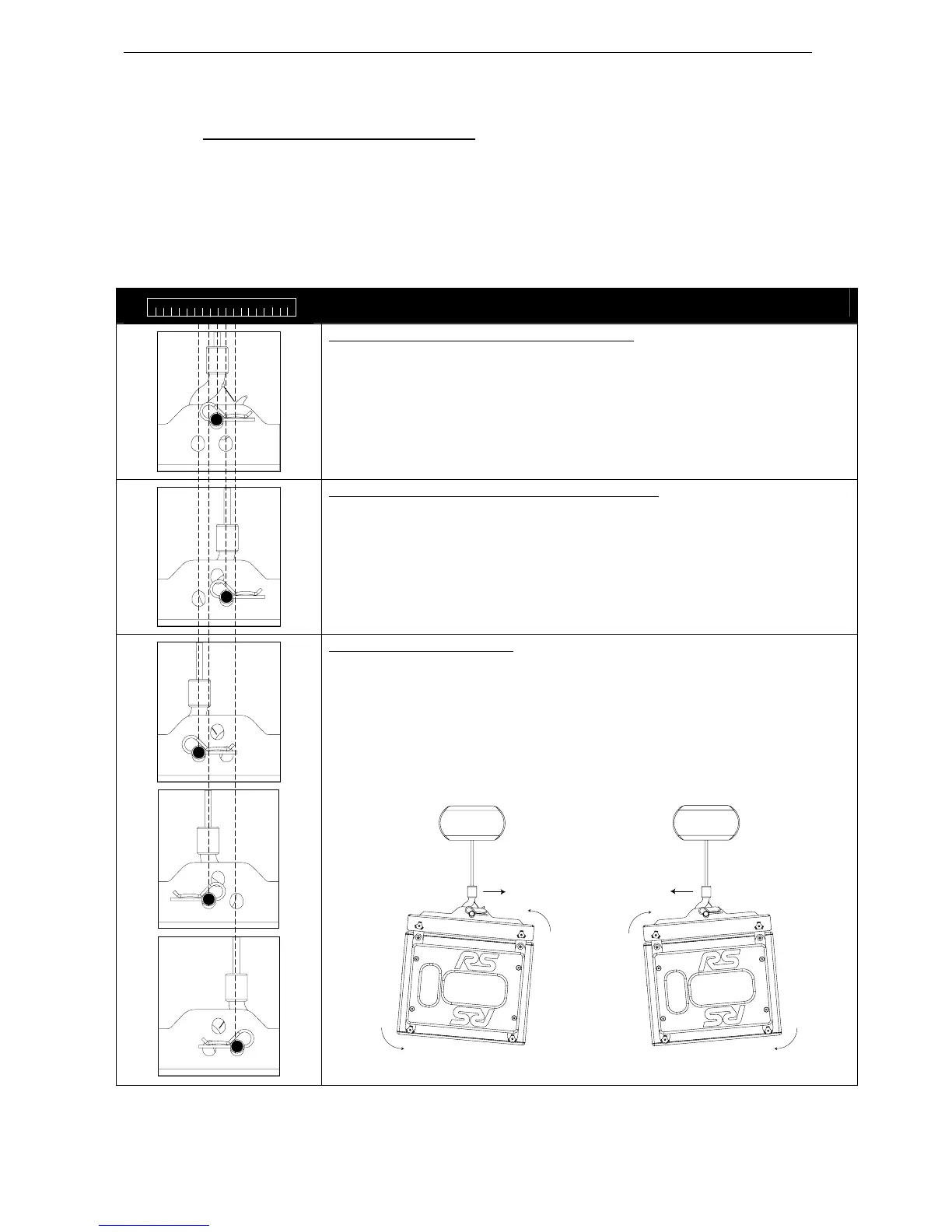

6.2.3 Adjusting rigging point for horizontality
Before connecting a second cabinet, bumper angle has to be adjusted for perfect horizontality.
This requires that the rigging point is adjusted in the two horizontal directions so that the bumper
remains horizontal within +/-1°. Adding cabinets will reduce this tolerance.
Adjusting 0° along the cabinet depth
Adjusting horizontality along cabinet depth is done by properly selecting bumper hole:
Case Description
Top center bumper rigging point centered geometrically (0mm):
- RS15 equipped with wheels clusters (gravity center of a single RS15 with wheels precisely
matches geometrical center);
- RS15 alternate clusters (speakers facing alternatively left and right, with or without wheels,
gravity center always matches geometrical center).
Top center bumper rigging point 17mm ahead of geometrical center:
- RS15 without wheels clusters (all speakers facing same direction, gravity center of a single
RS15 is precisely 17mm ahead of geometrical center).
Other available rigging point positions:
Cable weight influence over gravity center position cannot be precisely anticipated.
Additional rigging point configurations are available so that the RS15 bumper is always set horizontally.
These rigging point positions are:
- 34mm behind geometrical center;
- 17mm behind geometrical center (requires flipping the bumper horizontally);
- 34mm ahead geometrical center (requires flipping the bumper horizontally).
