Page 36/58 RAY SUBS IMPLEMENTATION
8 RAY SUBS IMPLEMENTATION
8.1 Omnidirectional Mode
8.1.1 Single RS15
Omnidirectional Mode implementation should be favoured in configurations where:
- sufficient depth is not available for directional implementation (proscenium, front stage
etc…);
- strong rear radiation is not critical.
Although wide in both cases, coverage is slightly narrower along RS15’s width than height (see
drawings below).

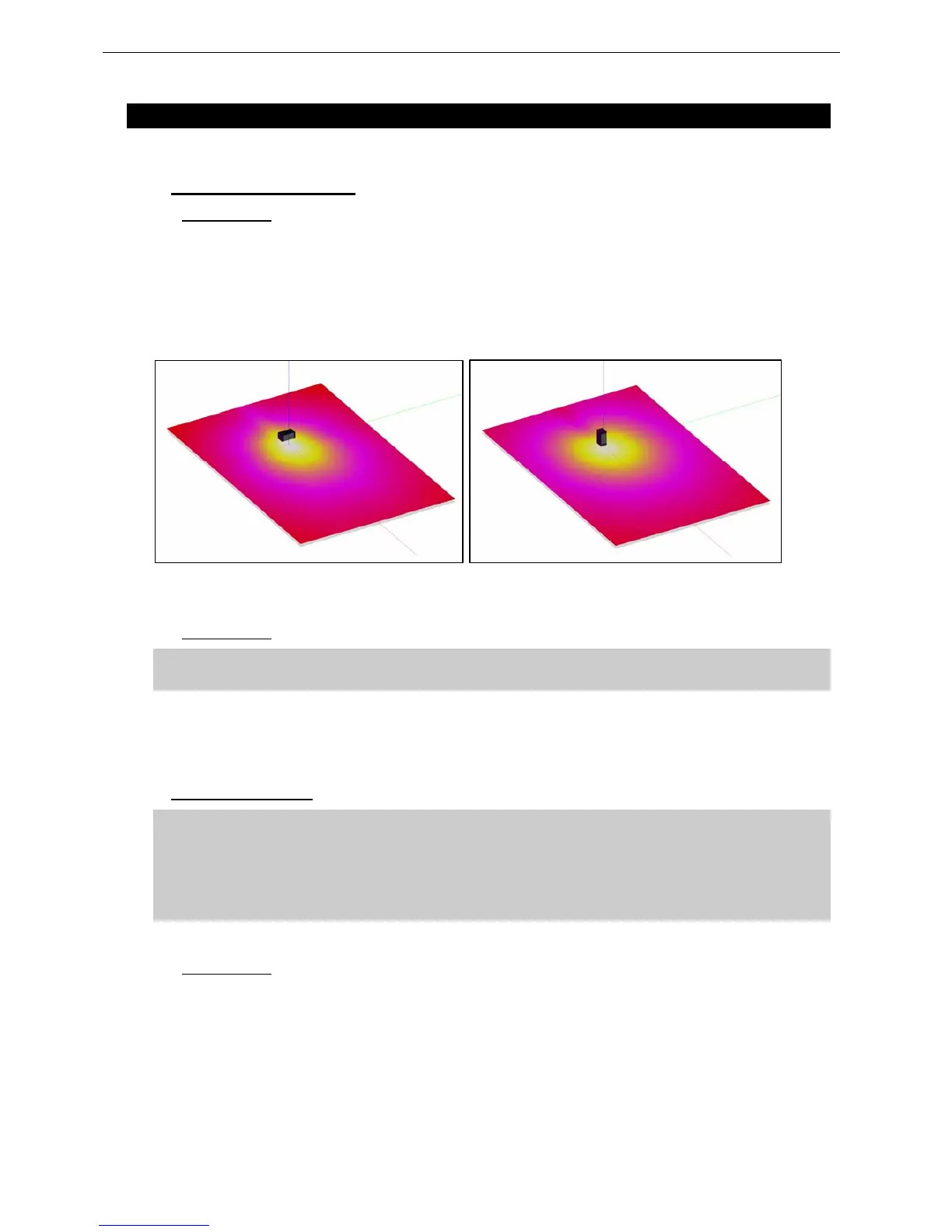

HORIZONTAL COVERAGE IN OMNI MODE (100 HZ) VERTICAL COVERAGE IN OMNI MODE (100 HZ)
8.1.2 RS15 arrays
IMPORTANT
RS15s arrays must be installed with bumper set horizontally and all cabinets at 0°.
Design procedure should be in agreement with what has been described in the preceding section.
See following section on Steered Arrays
8.2 Directional Mode
IMPORTANT
RS15 can be installed “Left” or “Right” (see section 2.1):
- “Left” means grid is Left when looking from front;
- “Right” means grid is right when looking from front.
Whenever possible, NEXO recommends symmetrical designs.
8.2.1 Single RS15
Single RS15 have an asymmetrical pattern in the horizontal plane (ie speakers on the side), which is
tilted 30° off-axis towards speakers direction; vertical pattern (ie speakers facing up or down) is
symmetrical).
