MERCURY 310 Controller
User Guide
R
U
N
L
E
A
F
D
E
L
A
Y
C
L
O
S
E
T
I
M
E
R
L
R
N
M
O
T
O
R
1
F
O
R
C
E
L
R
N
M
O
T
O
R
2
z READ ALL THE SAFETY WARNINGS AND CAUTIONS on the previous pages before proceeding to
operate the gate system!
z This user manual will cover basic operation of the manual operator controls, as well as maintenance and
troubleshooting that may be performed by the end user.
z Figure 2, below, shows the Mercury 310 interface with the user specic controls.
OPEN BUTTON:
Opens the gate.
CLOSE BUTTON:
Closes the gate.
ACCESSORY INPUTS
STOP/CLEAR
BUTTON: Stops
gate or clears a hard
shutdown.
REMOTE PROGRAM
BUTTONS - Step/
Open/Latch:
Used to set up OXI
transmitters.
ALARM BUTTON:
Toggles ON/OFF.
If ON, alarm
sounds 3s before
gate movement
and ends 2s after
movement starts.
FAIL-SAFE
BUTTON: If ON,
gate defaults to
open position
on low battery
condition.
BATTERY HEALTH
LED: Flashes RED when
battery needs replacing
or is not connected.
BATTERY LED:
GREEN = OK
RED = Reversed Polarity
DC/SOLAR LED:
GREEN = OK
RED = Reversed Polarity
DISPLAY:
Error codes
& settings
FUNCTION
SELECT KNOB:
Installer settings
OXI RADIO PORT:
For remote control radio
accessory
ACTUATOR CONNECTIONS

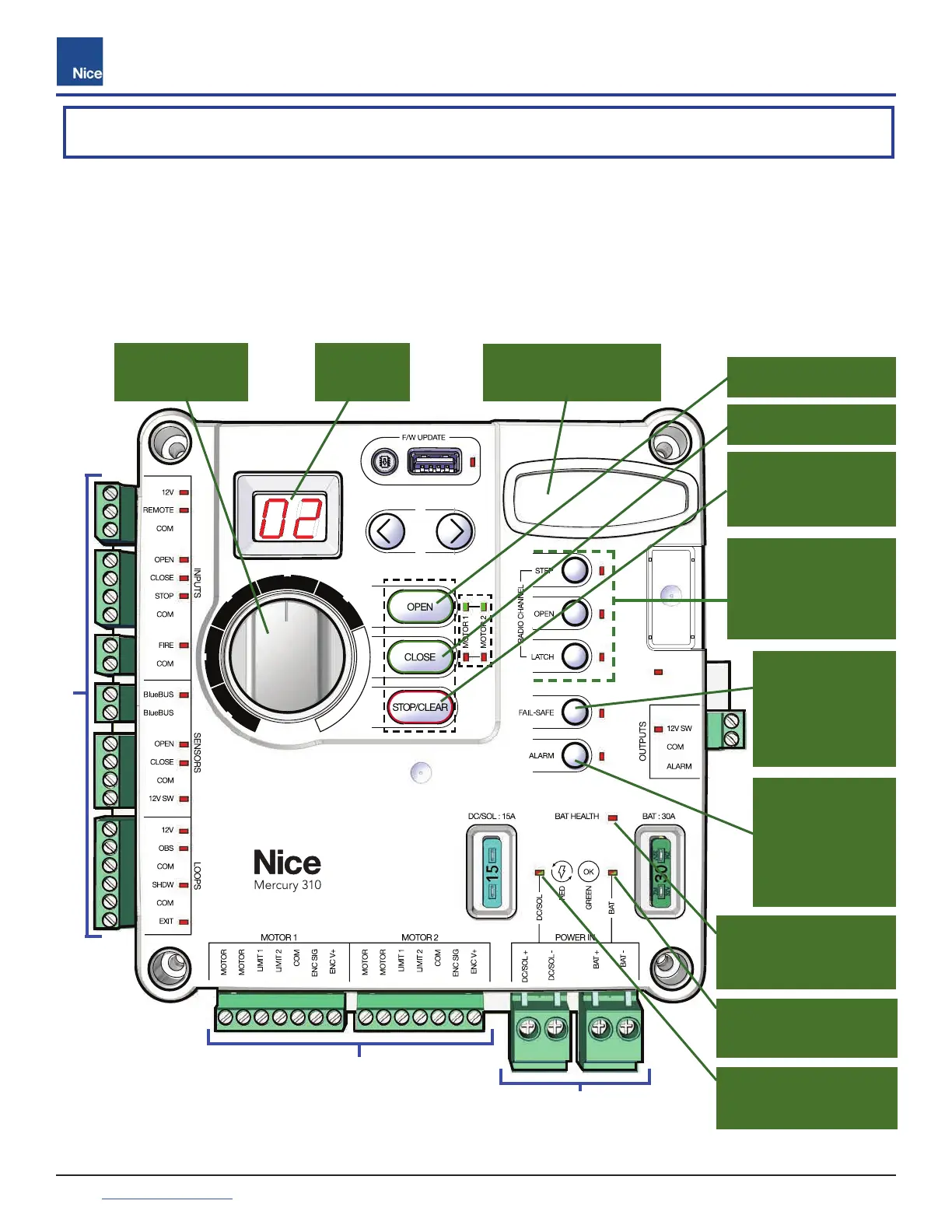

FIGURE 3: Mercury 310 Control Board Interface Features
POWER
4. USER CONTROLS & INDICATORS
