English – 7
3
INSTALLATION
3.1 - Gearmotor installation
Important! Before installing the gearmotor check Chapter 2,
the contents of the package to verify the materials and the
RYHUDOOGLPHQVLRQVRIWKHJHDUPRWRUƄJ
Attention! The garage door must be able to move with ease.
Limit to be complied with (according to EN12604):
- private use = 150 N maximum
- industrial/business use = 260 N maximum
300mm
200mm 200mm
380mm
2
C 2970mm
B 0÷400mm
A 40÷400mm
D 380mm
E 65÷300mm
3

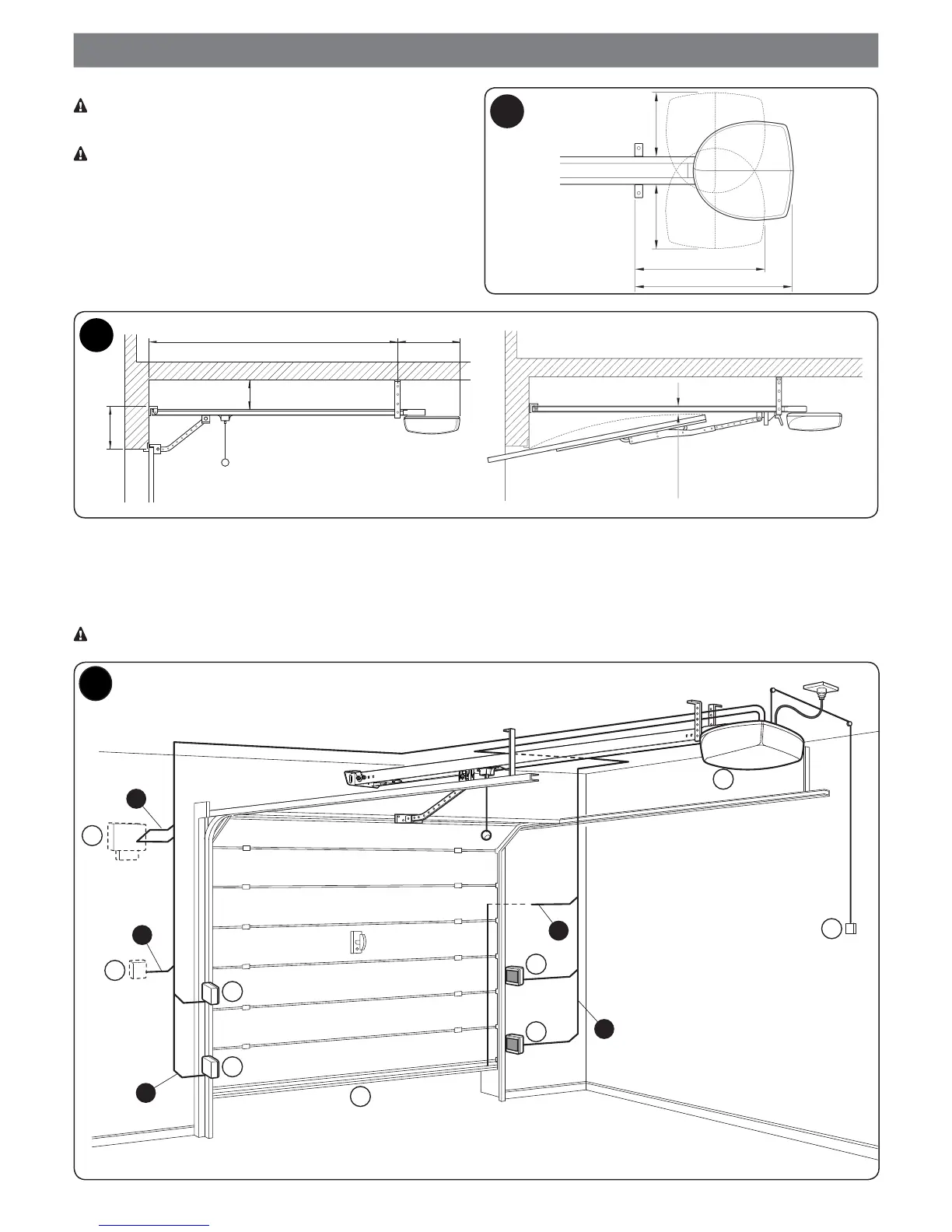

Fig. 4 shows the location of the components of a typical installation:
1 - gearmotor with integrated control unit 2 - photocells
k@RGHMFKHFGS JDXNODQ@SDCRVHSBG
5 - primary sensitive edge 6 - PP function cord
Figures 5a and 5b show typical installations of a protruding and non-protruding overhead door.
For installations on overhead doors, the accessory SPA5 is required.
A
C
B
B
1
6
2
2
2
5
3
4
2
D
4
