Nikon Eclipse Ni-U User Manual

Chapter 1 Assembly
14
Assembly

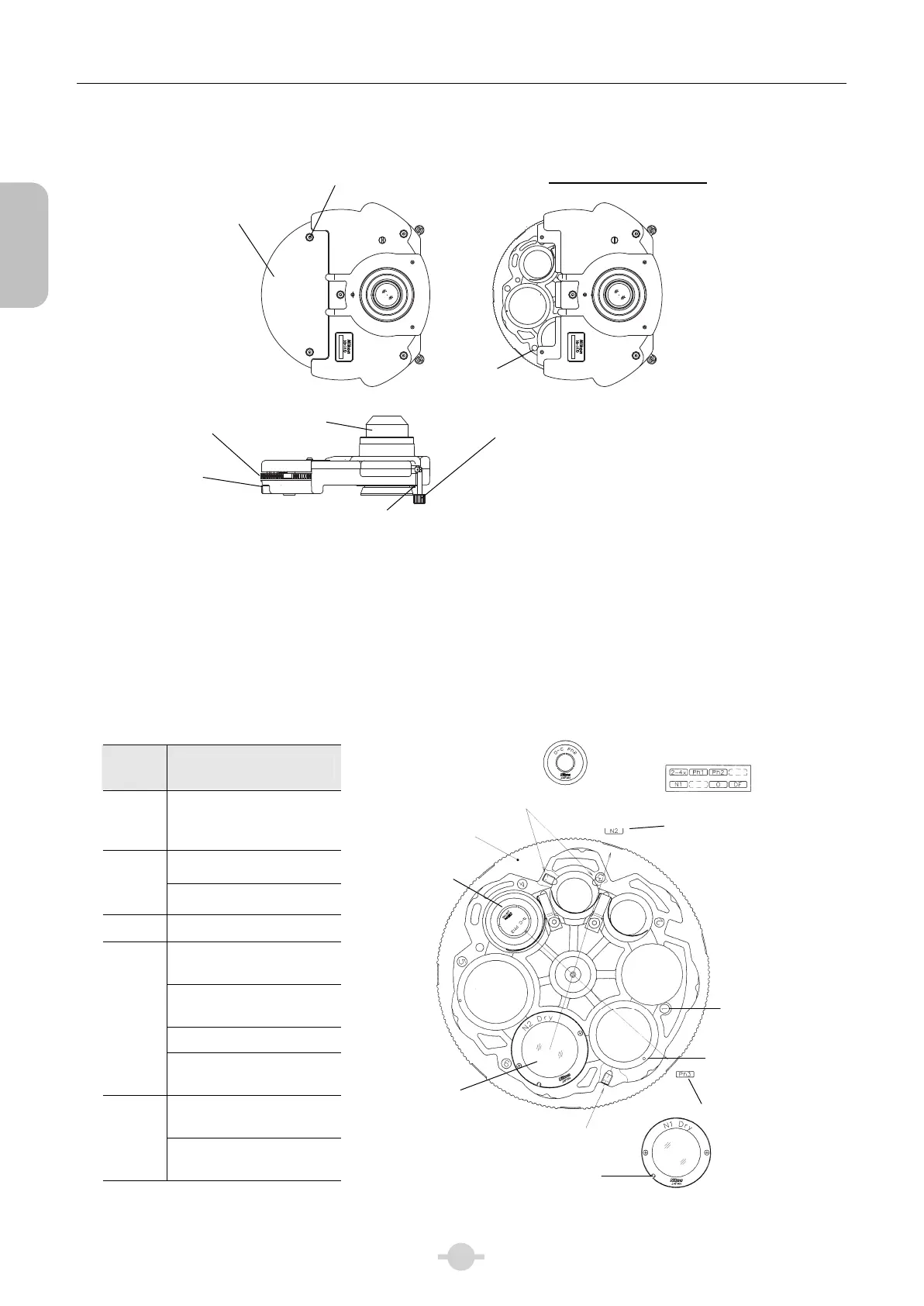

NI-CUD Universal Condenser Structure
5
6
MADE IN JAPAN
990001
MADE IN JAPAN
990001
(1) Remove the cover.
Remove two screws securing the module replacement cover using the provided hex driver and remove the
cover.
(2) Attach the optical module.
A number is shown near the mounting hole. Attach the optical module in the specified hole. Turn the turret to
bring the desired hole to an accessible position for attaching the optical module. Place the module with its
name facing up.
Module positioning hole number
Hole
number
Module
1
Empty: For bright-field
microscopy
(module not attachable)
PH module [D-C PH-1]
2
or
3
PH module [D-C PH-2]
4
PH module [D-C PH-3]
DIC module
[D-C DIC N2 DRY]
DIC module
[D-C DIC NR DRY]
Dark field module [D-C DF]
5
or
6
2-4x auxiliary lens
[D-C 2-4x] (φ39)
DIC module
[D-C DIC N1 DRY]
7
2-4x auxiliary lens
[NI-CALN1] (φ35)
Module
replacement cover
Replacement cover
fixing screw (two)
Replacement cover removed
Hole
numbe
r
PH module centering knob
(Use the centering knob by pulling it out
horizontally when centering. Otherwise,
keep it folded down.)
Round dovetail lock pin
Condenser
aperture
diaphragm leve
r
Turret
Nameplate sticker
PH module
PH module
centering screw
Turret
Module fixing screw
Positioning pin
DIC module on
the condenser
Positioning
g
roove
Hole number
(1) to (7)
DIC module
[D-C DIC N2 DRY] is
attached
PH module
[D-C PH3]
is attached
Put nameplate sticker [N2].
Put nameplate sticker
[Ph3].
Condenser
lens part
