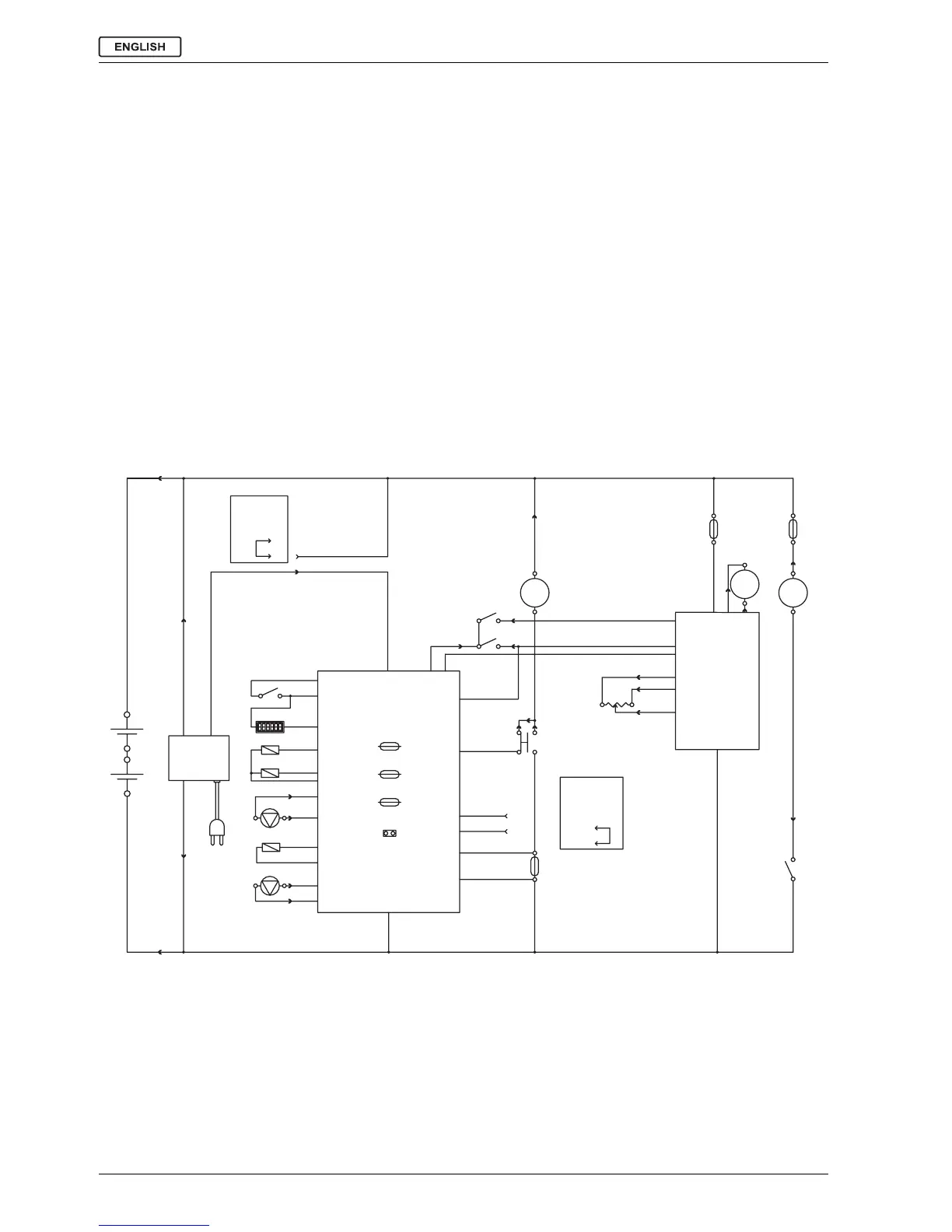

WIRING DIAGRAM
BAT: 24 V battery
C1: Battery connector
C2: Battery charger connector
CH: Battery charger
CSC: Cylindrical brush deck secondary connector
EB1: Function electronic board
EB2: Drive system electronic board
ES1: Brush electromagnetic switches
ES2: Vacuum system relay
EV1: Solenoid valve
F1: Deck fuse
F2: Vacuum system fuse
F3: Drive system fuse
F4: Signal circuit fuse
F5: Brush/pad-holder release fuse
F6: Pump fuse
HM: Hour counter (optional)
K1: Ignition key
M1: Brush/pad-holder motor
M2: Vacuum system motor
M3: Drive system motor
M4: Water pump (**)
M5: Detergent pump (**)
RV2: Maximum speed potentiometer
SW1: Brush/drive system enabling microswitch
SW2: Reverse gear microswitch
(*) Only for machines with cylindrical brush deck
(**) Only for machines with AXP
Color code
BK: Black
BU: Blue
BN: Brown
GN: Green
GY: Grey
OG: Orange
PK: Pink
RD: Red
VT: Violet
WH: White
S311315
F1
ES1
BN
BU
BK
C1
BK
C2.2
BK BK
J4
J1.8
BU
BU
M5
WH
J3.3
J3.4
J2.2
EV1
BN
J2.1
J3.2
OG-BK
J1.10
RD-BK
BU-BK
J1.9
J3.5
J3.6
CSC1
CSC2
BK
CH
BAT
C2.1
OG
BU
HM
F6
F5
F4
ES2
YE
M4
BN
85
BN
86
J3.1
J1.13
J1.12
BN-BK
ES1
BU
1
2
J1.11
J1.4
GY
J1.14
EB1
J1.1
RD
OG
K1
J1.6J1.6
J1.2
GN-BK
J1.15
J1.3
J1.5
BU
VT
RD
(2)
(1)
SW1
RD RD
C1
C2.4
C2.3
C2.4
C2.3
M1
RD RD
BK BK
CSC1
CSC2
87
ES2
30
RV2
J1.4
(4)
WH
-B
WH
(6)
BU
(5)
J1.3
RD
J1.1
GN-BK
VT-BK
J1.12
J1.15
EB2
+B
M1 M2
M3
RD GY
M2
RD
F3
BN
F2
RD RD
(3)
SW2
YE-BK
J1.2
+
-
-
+
(*)
