Nilfisk-Advance Adfinity 20D User Manual

INSTRUCTIONS FOR USE
28 9096910000(1)2006-09
BRUSH/PAD-HOLDER/CYLINDRICAL BRUSH DECK DISASSEMBLY/ASSEMBLY
The machine can be equipped with either the brush/pad-holder deck (18a and 18b) or the cylindrical brush deck (18c).
Disassembly
1. Drive the machine on a level floor.
2. Remove the brushes/pad-holders according to the procedure shown in the relevant paragraph. Do not remove the
cylindrical brushes.
3. Lower the brush/pad-holder deck by pressing the pedal (11).
4. If equipped, remove the cotter pins (B, Fig. 11) and the gas spring (A).
5. Disconnect the brush/pad-holder motor electrical connection (D).
6. Disconnect the solution hose (E) from the solenoid valve (F).
7. Remove the screws (C), then remove the brush/pad-holder deck (F).
Assembly
8. Assemble the components in the reverse order of disassembly, and note the following:
– When the machine is equipped with the cylindrical brush deck (18c), the gas spring (A) must not be installed.
S311325

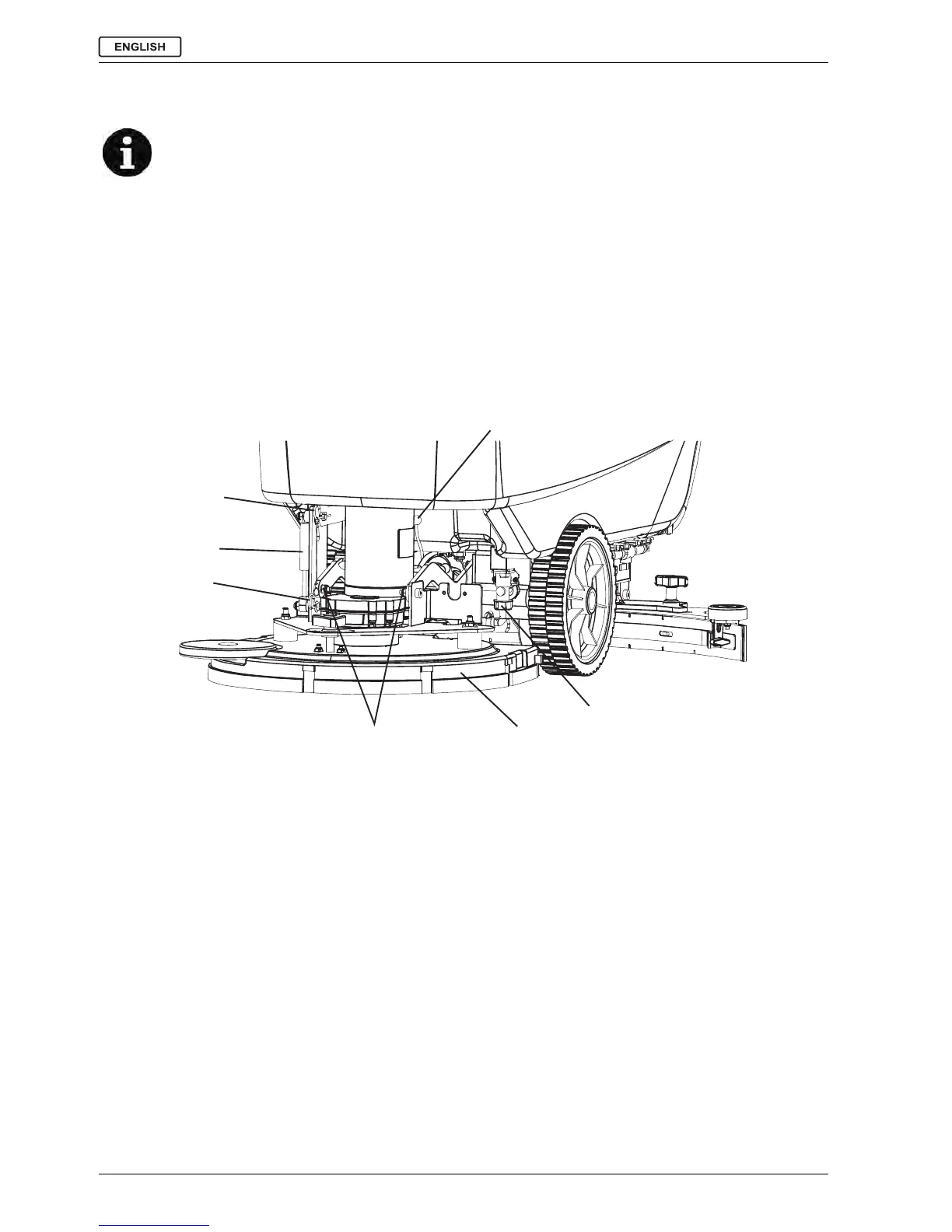

Figure 11
NOTE
When the deck is installed/removed, it may be necessary to change the squeegee too, because they must
have the same width. For correct matching of deck and squeegee, see the Squeegee Installation paragraph.
F
E
C
D
B
A
B
