INSTRUCTIONS FOR USE
26 9096910000(1)2006-09
CLEAN WATER FILTER CLEANING
(For X20D, X20C, X24D)
1. Drive the machine on a level floor.
2. Turn the ignition key (80) to “0” position.
3. Open the cover (22) and check that the recovery water tank (21) is empty, otherwise empty it with the drain hose (16).
4. Grasp the handle (41) and carefully lift the tank (40).
5. Slightly lift the hoses (A, Fig. 9), then, operating on the clean water filter assembly (F) unscrew the transparent cover (B)
and remove the filter strainer (C). Clean and install them on the support (D).
6. Lower the hoses (A) and the filter strainer (F).
S311323

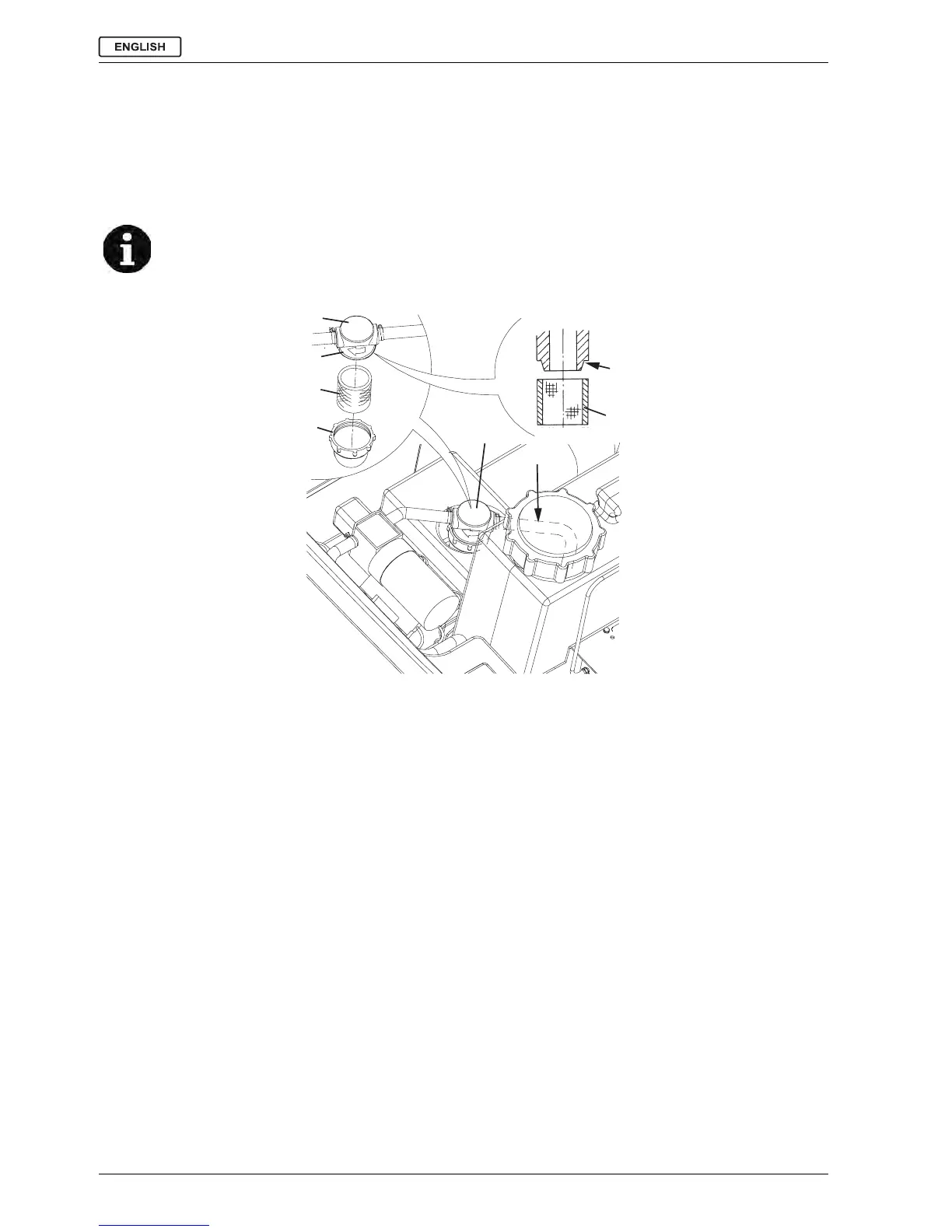

Figure 9
NOTE
The filter strainer (C) must be correctly positioned on the housing (E) of the support (D).
F
B
C
D
F
A
E
C
