RECOVERY WATER SYSTEM
SERVICE MANUAL
ENGLISH
Micromatic
TM
M17B - Micromatic
TM
M17E 9097091000(1)2007-06
27
VACUUM SYSTEM MOTOR DISASSEMBLY/ASSEMBLY [MICROMATIC M17B - MICROMATIC M17E]
Check that the switches (5 and 6) are turned to “0”.
If there is recovery water in the tank (43), drain it through the hose (22).
Disconnect the vacuum hose (29) from the squeegee (17).
Open the cover (12).

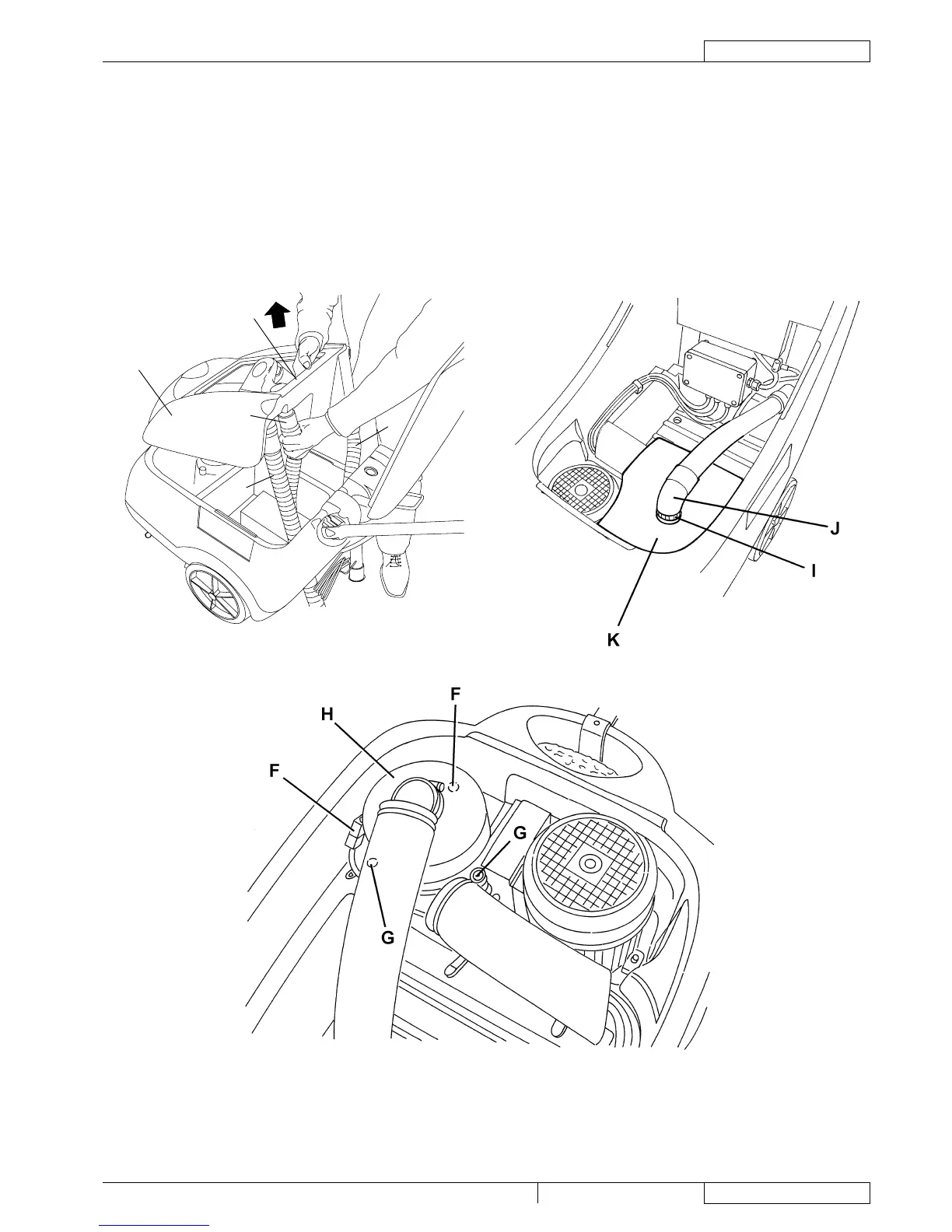

Grasp the recovery water tank (A) in the area (B) and lift it, as shown in the gure, then disconnect the vacuum hose (C) from
the tank and remove the tank (A) together with the hoses (D) and (E).
(MICROMATIC M17E) Loosen the clamp (I) and disconnect the hoses (J), then remove the waterproof cover (K).
Disconnect the vacuum system motor electrical connector (F).
Remove the vacuum system motor fastening screws (G).
Remove the vacuum system motor (H).
Assemble in the reverse order of disassembly.
