ELECTRICAL SYSTEM
SERVICE MANUAL
ENGLISH
Micromatic
TM
M17B - Micromatic
TM
M17E 9097091000(1)2007-06
35
G
F
F
S301223
CHARGING CURVES SETTING [MICROMATIC M17B] (for machines starting S/N .............)

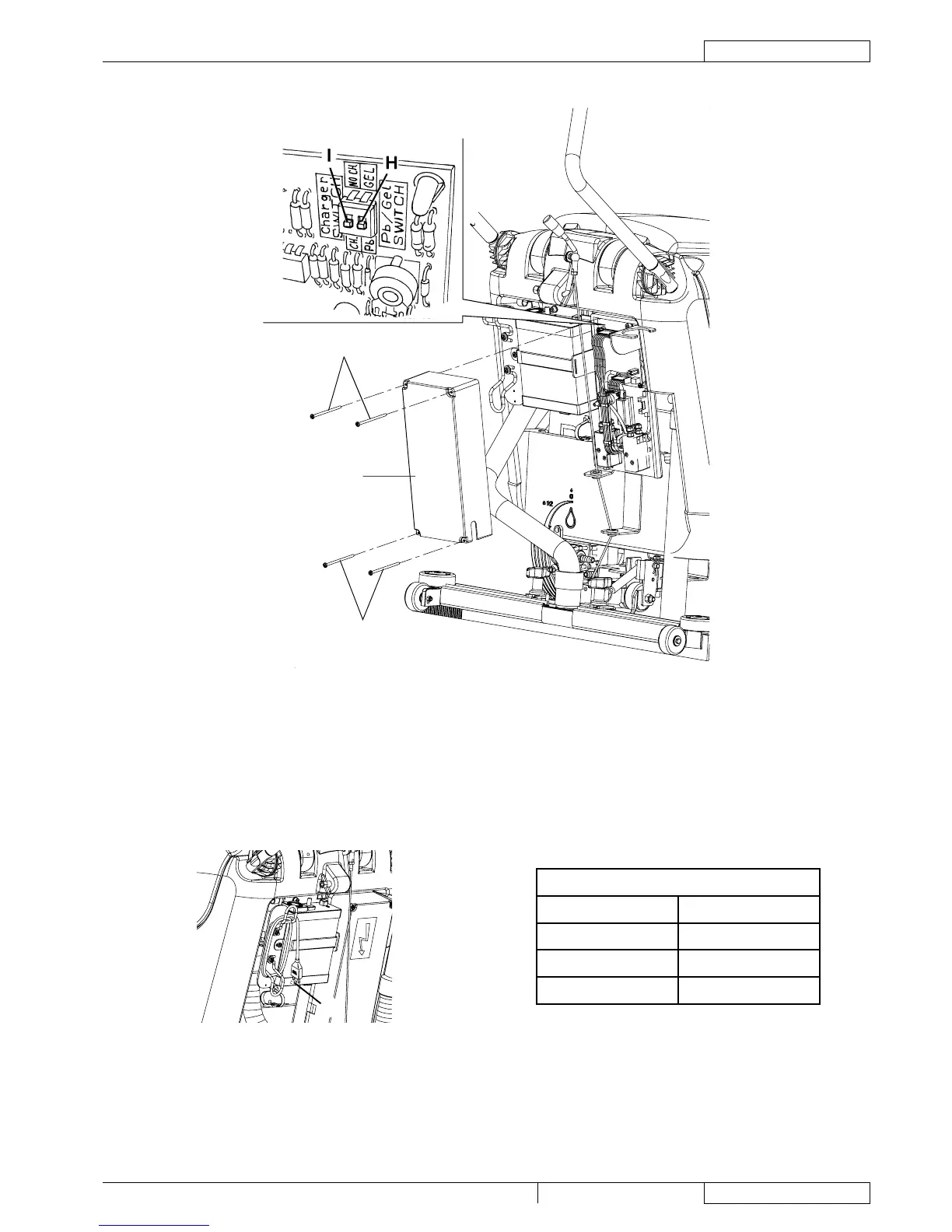

Remove the plastic cap (A) in order to access to the internal DIP SWITCH.
With a small screwdriver change the DIP SWICH in accordance with the below listed setting data.
For batteries until 55Ah@5h leave the standard charging curve = 8A.
For batteries over 55Ah@5h set the charging curve = 9A.
For GEL batteries leave the standard curve GEL.
For WET batteries, set the curve WET
A
DIP SWITCH SW1 SETTINGS
DP1 DP2
Charging curve Voltage
ON = WET ON = 9A
OFF = GEL OFF= 8A
S301223A
1.
2.
•
•
•
•
