BRUSH/PAD-HOLDER DECK DISASSEMBLY/ASSEMBLY [MICROMATIC M17B]
Disassembly
Remove the batteries.

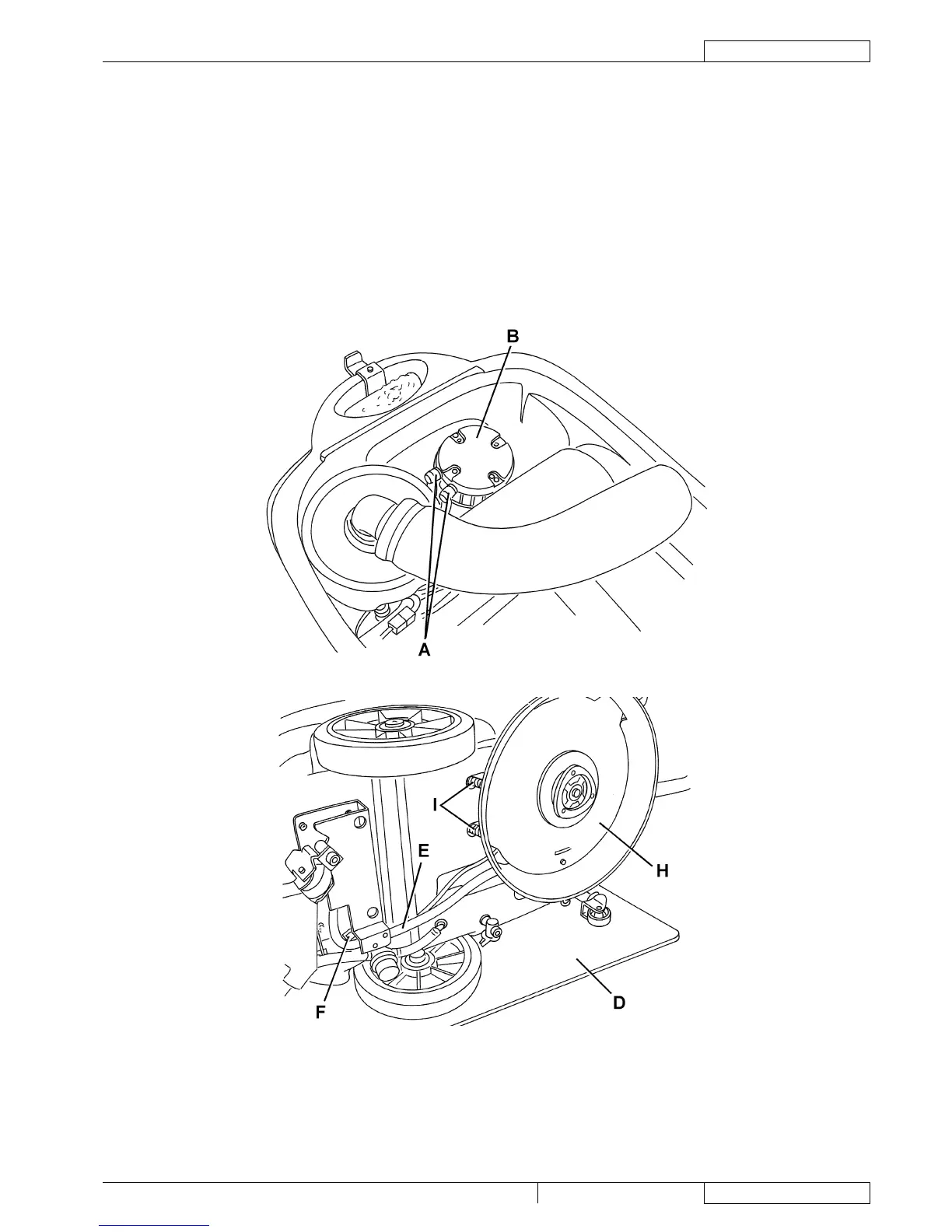

Remove the caps (A) and disconnect the electrical connections from the brush motor (B).
Remove the left deck fastening screw (58).
Use a protection (D) to avoid damaging the machine and tilt it carefully to lay its left side on the oor.
Disconnect the solution hose (E) from the solenoid valve (F).
Remove the right deck fastening screw (57).
Remove the deck (H).
Assembly
Assemble in the reverse order of disassembly, and note these items:
When reassembling the deck (H), reinsert the deck xing springs (I) correctly.
