INSTRUCTIONS FOR USE ENGLISH
9099974000 - SC500 11
11/2014
revised 07/2017
USE/OPERATION
WARNING!
On some points of the machine there are some adhesive plates indicating:
– DANGER
– WARNING
– CAUTION
– CONSULTATION
While reading this Manual, the operator must pay particular attention to the symbols shown on the plates (see Visible Symbols On
The Machine paragraph).
Do not cover these plates for any reason and immediately replace them if damaged.
MAGNETIC SMART KEY
A magnetic smart key (51) is required to start the machine. If the start switch (42) is pressed and the key is not in the key reader
(41), the display will turn on temporarily and it will show a key insertion request, then it will turn off.
There are two different magnetic smart keys:
1. “User” key (blue) for scrubbing/drying operations and basic information.
2. “Supervisor” key (yellow) for accessing additional features (see the Supervisor key paragraph in Maintenance chapter).
BATTERY CHECK/SETTING ON A NEW MACHINE
WARNING!
The electric components of the machine can be seriously damaged if the batteries are either improperly installed
or connected.
The batteries must be installed by qualied personnel only.
Check the batteries for damage before installation.
Handle the batteries with great care.

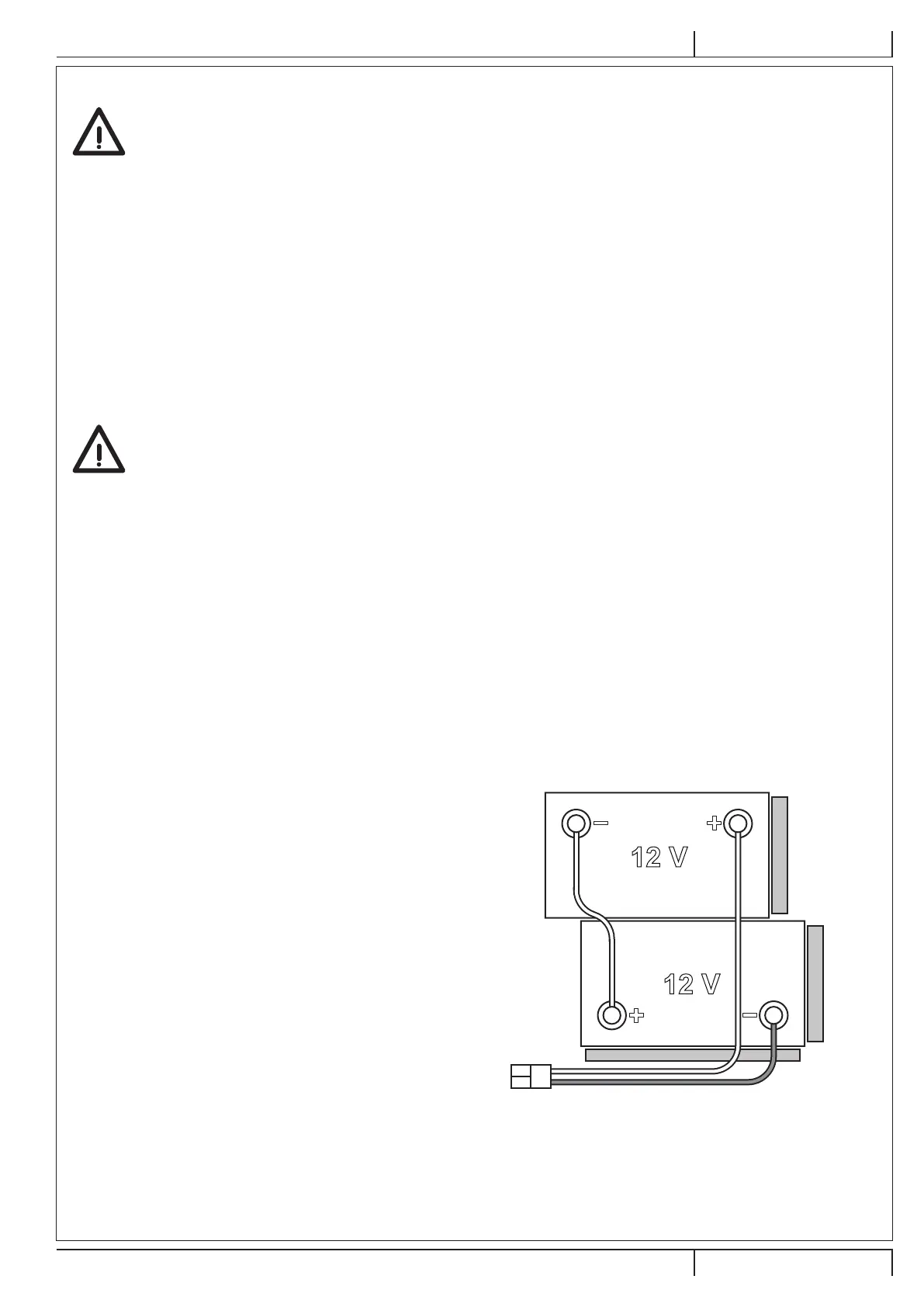

The machine requires 2 12 V batteries, connected according to the diagram shown in Figure 1.
The machine can be supplied in one of the following modes:
Batteries already installed on the machine
1. Ensure that the battery connector (9) is connected.
2. When rst using the machine with new batteries, perform a full charging cycle (see the procedure in Maintenance chapter).
Without batteries
1. Buy appropriate batteries (see “Technical Data” paragraph). For battery choice and installation, apply to qualied battery
Retailers.
2. Set the machine according to the type of batteries installed as shown in the Supervisor key paragraph, in Maintenance chapter.
BATTERY INSTALLATION
Battery Installation
1. Remove the user key (51).
2. Disconnect the battery connector (9).
3. Lift the cover (34) and check that the recovery tank (33) is
empty; if not, empty it using the drain hose (12).
4. Close the cover (19).
5. Grasp the handle (16) and carefully lift the tank (33).
6. The machine is supplied with cables suitable to install
2 12 V batteries. Carefully lift the batteries up to the
compartment, then install them correctly.
7. Route and install the battery cable as shown in Figure 1,
then carefully tighten the nut on each battery terminal.
8. Place the protection cap on each terminal, then connect
the battery connector (9).
9. Grasp the handle (16) and carefully lower the tank (33).
Battery Charging
10. Fully charge the batteries (see the procedure in
Maintenance chapter).
BACK
Figure 1
P100841
