Nokia MEDIAMASTER 9460 S User Manual

GB 10

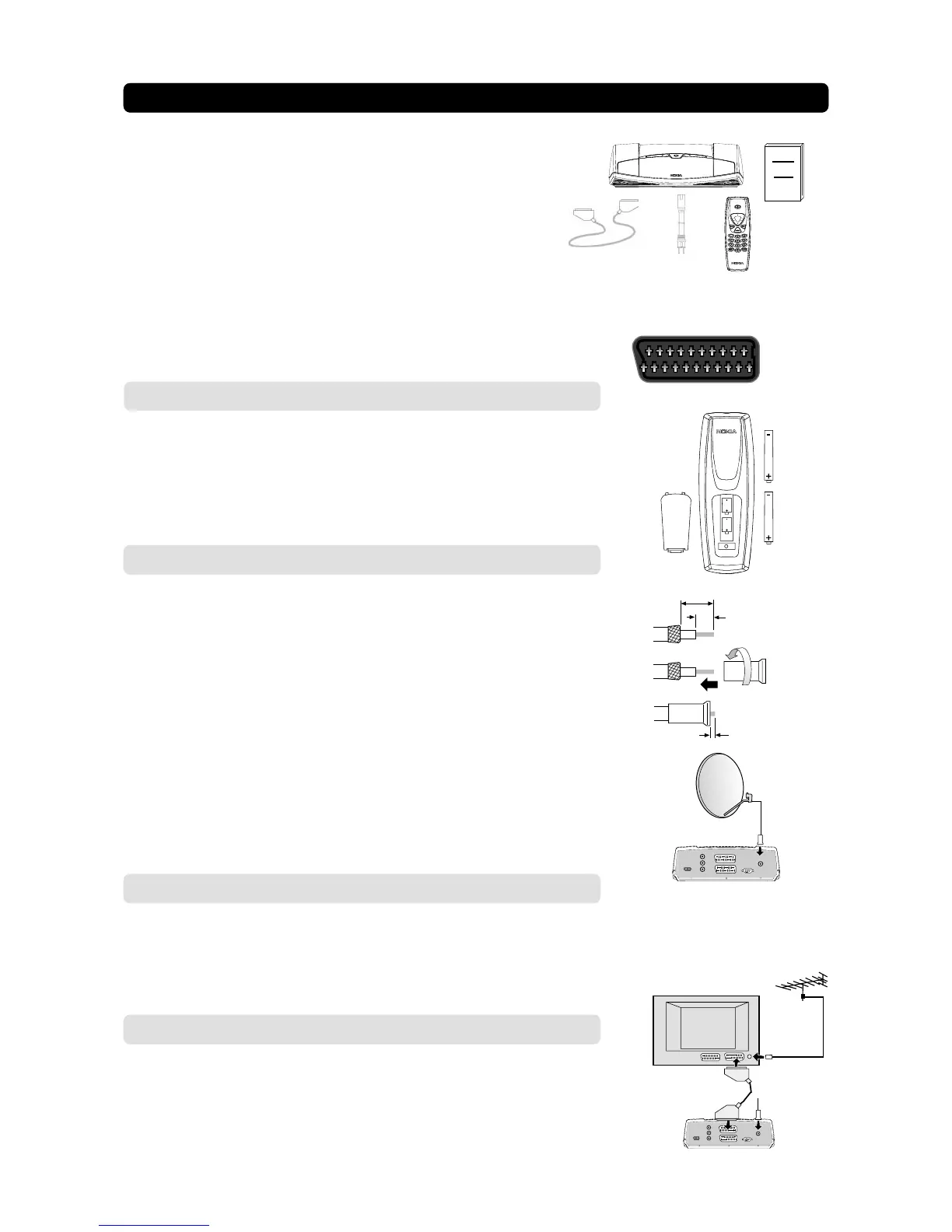

The box for your Mediamaster should contain the following items:
• the Mediamaster
• remote control with 2 AAA batteries
• SCART cable (fully featured 1.0 metre)
• mains cable
• owner’s manual with software license agreement
INSTALLATION OF THE MEDIAMASTER
About the SCART sockets
The rear panel of the Mediamaster is equipped with 2 SCART sockets (see dia-
gram). When you connect other devices to any of these sockets, always use fully
featured SCART cables (as supplied). There are “less well specified” SCART ca-
bles on the market and picture quality could be reduced if you use them.
SCART socket
SCART cable
Owner’s
manual
Preparing the remote control
• Remove the cover on the battery compartment at the bottom of the remote
control.
• Insert the 2 AAA (1.5 V) batteries, as shown in the diagram, taking care to ob-
serve the + and - markings indicated inside.
• Replace the cover.
Installing the satellite dish
• See the ”Fitting instructions for satellite dish” on how to install the dish.
• Connect the coaxial cable, with F-connectors fitted, from the LNB on the satel-
lite dish to the socket marked ”ANTENNA”on the rear panel of the Mediamaster.
Connecting the Mediamaster to the dish
If you need to fit the F-connectors onto the cable
• Prepare each end of the cable as shown in the diagram. You will need to fold
back the outer braid (as shown).
• Slide the F-connector onto the cable, then turn it clockwise until it grips the braid.
• Ensure that 3 mm of the core is protruding from the end of the connector.
Remote
control
Connecting to the TV
• Connect the SCART cable between the main SCART socket on the TV and the
TV SCART socket on the Mediamaster.
• Connect the TV aerial to the TV.
General
There are many different types of TV/VCR and other equipment that you can con-
nect to the Mediamaster.
In this manual you will see some of the most common ways to connect your equip-
ment.
If you have problems with your connections and need help, contact your dealer.
1
2
SCART
8 mm
15 mm
3 mm
F-connector
Mains cable
x
