Nokia MEDIAMASTER 9460 S User Manual

GB 9
AUDIO L R
RCA connectors
Stereo outputs for
connection to a HiFi
system
TV SCART
for connection
to the TV
AUX SCART
for connection to a VCR,
or another audio/video
source
* LNB cable also feeds the LNB with a supply voltage of 13/18 V (V/H polari-
sation) and a 0/22 kHz signal (bandswitch). Max LNB current is approximately
500 mA.
DIGITAL AUDIO
RCA connector
S/PDIF digital out-
put for connection
to a HiFi system
Mains lead
110-240 V AC
ANTENNA *
Satellite dish
input (F-connec-
tor)
Rear panel
SERIAL PORT
for connection to
a PC
to put the Mediamaster
in and out of standby
mode
to change channels
Front panel

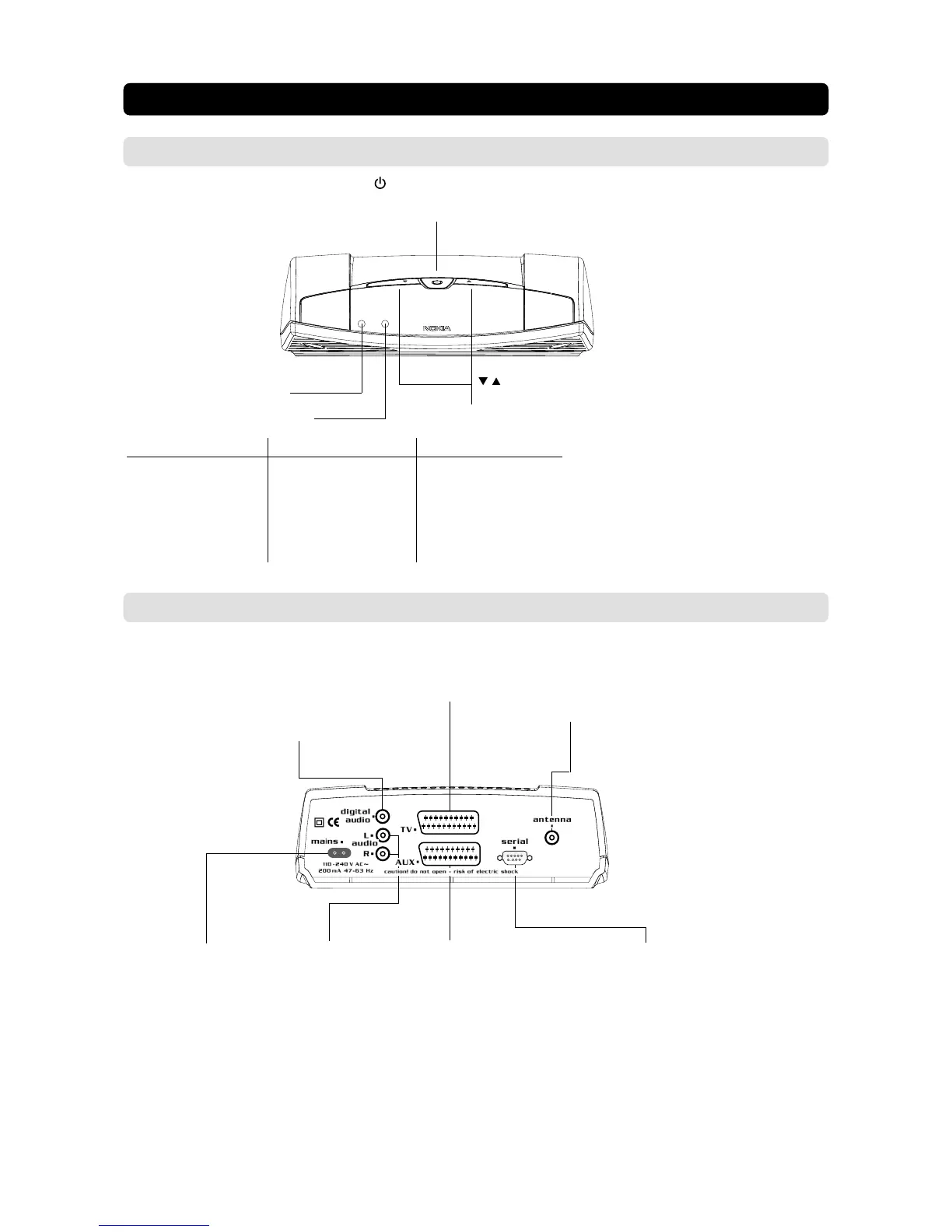

FRONT AND REAR PANEL
LED 1
LED 2
Function
ON
Standby
Locked to channel
Remote control feedback
SW download
Error
LED indicator 1
Green
Red
-
-
Continous green flashing
Continous red flashing
LED indicator 2
-
-
Green (locked) / Red (not locked)
Single flash
Continous green flashing
Continous red flashing
