Page #351 background image
The RF block diagram for RM-92 uses RF ASIC N7500 as illustrated by the red border in the block diagram. It
can be seen that the module contains RF ASIC N7505 and all the baluns and filters, except GSM TX filters and
the WCDMA balun. This implementation is used for WCDMA 2100.

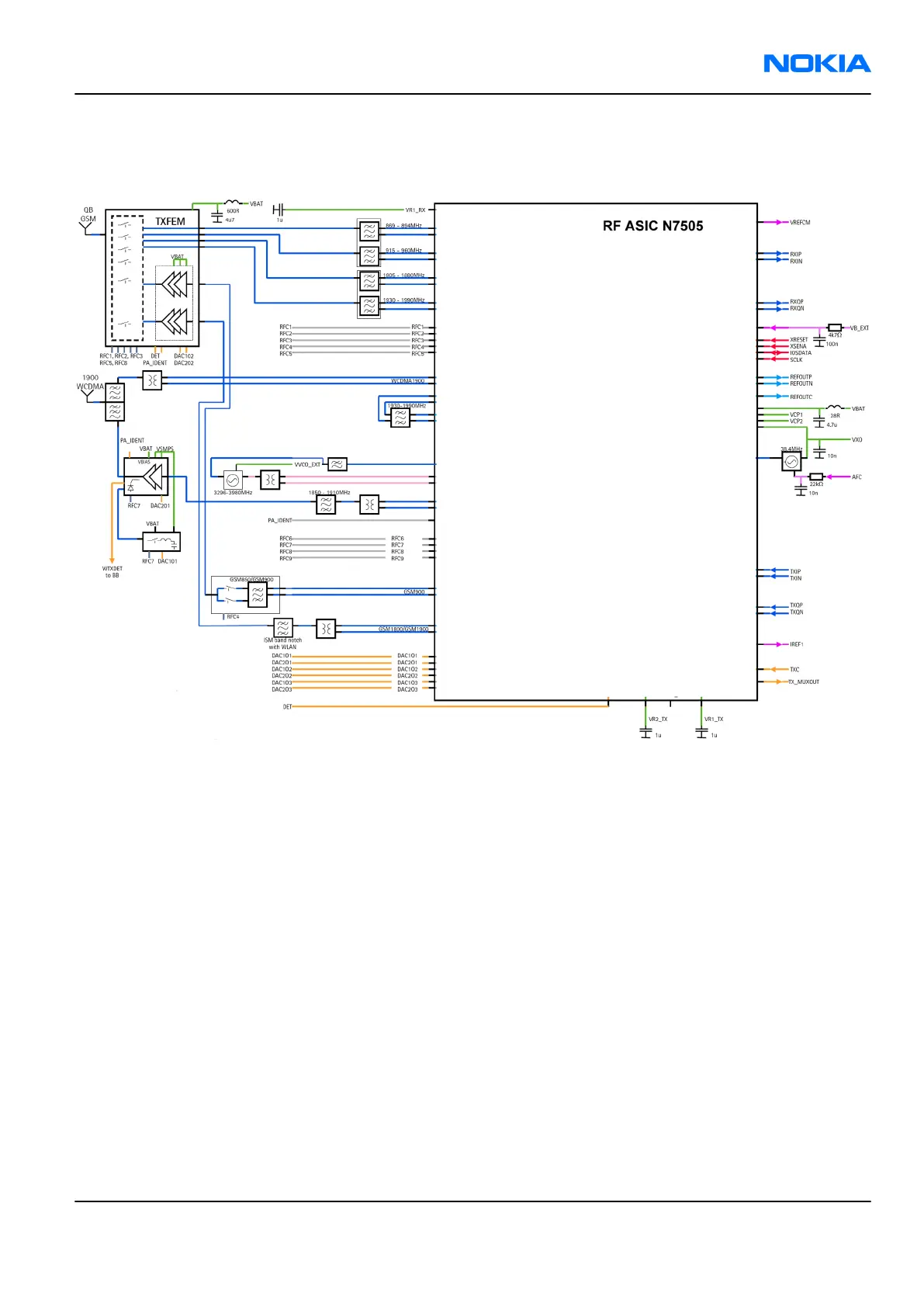

Figure 112 RF block diagram RM-91 using RF ASIC N7505
The RF block diagram for RM-91 uses RF ASIC N7505 that performs the RF back-end functions of receive and
transmit function of the cellular transceiver. This implementation is used for WCDMA 1900.
Frequency plan
Both, the receiver and the transmitter, are based on direct conversion architecture. The VCOs operate at the
channel frequency multiplied by two or four depending on the band of operation. This means that the
modulated baseband signals are directly converted up to the transmission frequency and the received RF
signals directly down to the baseband frequency.
RM-91; RM-92
System Module Nokia Customer Care
Issue 1 COMPANY CONFIDENTIAL Page 9 –43
Copyright © 2006 Nokia. All rights reserved.
