Spare Parts|
82
Distributor Spare Parts

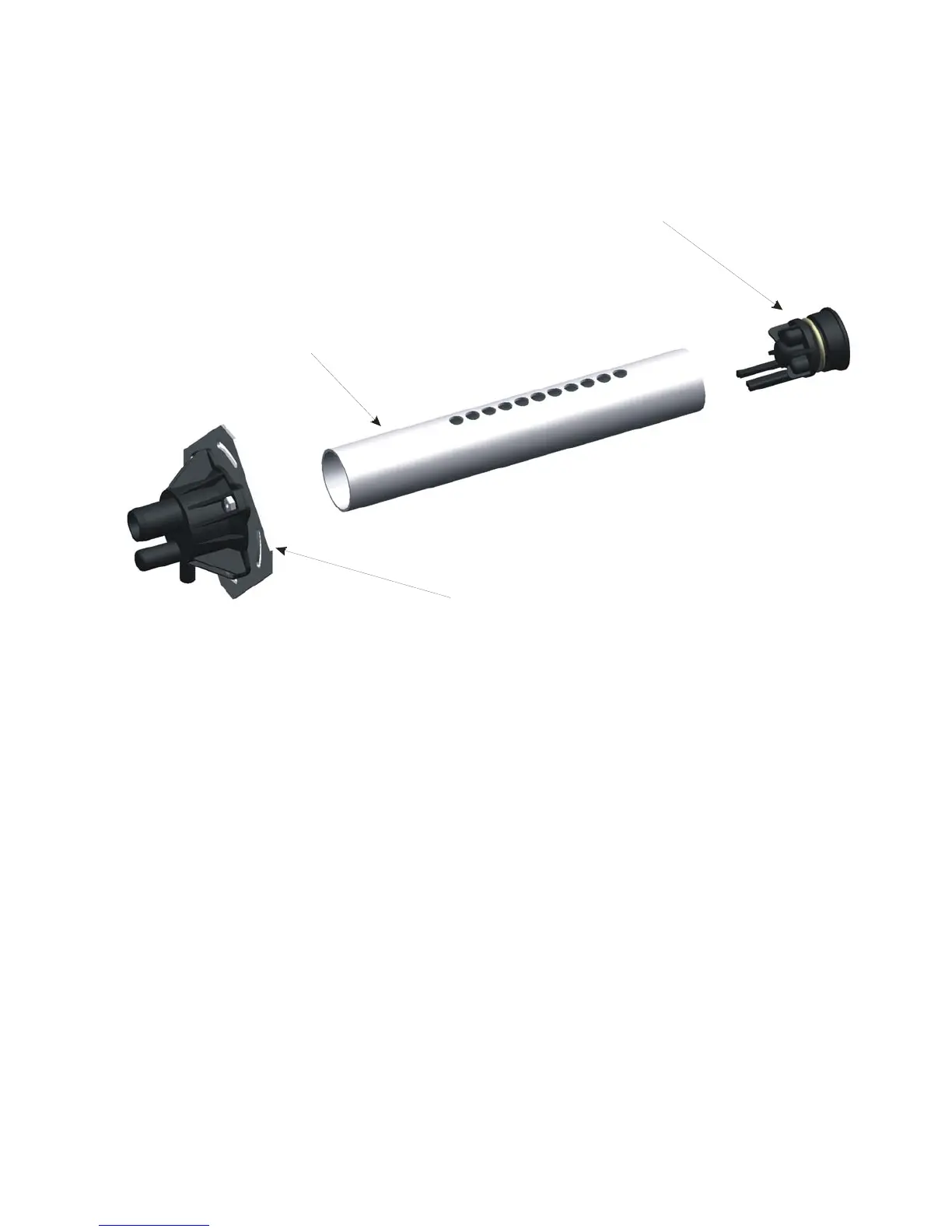

Figure 46: Distributor Exploded View and Spare Parts
ASD & BSD
1506161 -
Di
st
r
i
but
or
I
nl
et
Assem
bl
y
CSD
1506163 -
Di
st
r
i
but
or
I
nl
et
Assem
bl
y
A
SD & BSD
1506162 -
Di
st
r
i
but
or
End C
ap
Assem
bl
y
CSD
1506164 -
Di
st
r
i
but
or
End C
ap
Assem
bl
y
Di
st
r
i
but
or
Cor
e
84
86
Table of Contents
Default Chapter
3
Table of Contents
3
Introduction
4
Receiving and Unpacking
5
Humidifier Components
6
Description of Components
7
NHTC/PC Models
8
Options and Accessories
12
Installation
12
Typical Humidifier Installation
12
Location
12
Mounting with Keyholes
12
Plumbing
12
Steam Lines and Condensate Returns
12
Electrical
12
External Controls
12
Control Wiring
23
Control Location
23
On/Off Control Wiring
24
Modulating Control Wiring
26
Optional Outdoor Temperature Reset
29
Remote Fault Option Wiring
30
Multi Mode Wiring (Nhtc Only)
31
Options and Accessories
32
Built on or Remote Blower Pack
32
Fill Cup Extension
32
Drain Water Cooling
33
Foam Protection
33
Internal Fusing
33
Remote Fault Indication
33
Start up
34
Installation Check
34
NHTC/PC User Interface
34
Start up Procedure
34
Status Screens
34
NORTEC Digital Controls
34
Start up Checklists
42
Nhtc/Pc Pre-Start up Checklist
42
Nhtc/Pc Start up Checklist
43
Operation
44
LED Status Lights
44
How the Humidifier Works
44
NHTC Humidifier Configuration
44
NHPC Humidifier Configuration
44
Common Warnings
45
Humidifier Schematic
46
Steam Generation
47
Steam Distribution
47
Selecting an Rh Setpoint
48
Navigating the Nhtc Software
50
Main Menu (Nhtc Password)
50
Service Level
51
User Defined Settings
51
Control Setting
55
Multi Unit Op. Range
57
Diagnostic Menu
58
Navigating the Nhpc
60
Main Menu (Nhpc Password)
60
Maintenance and Servicing
62
Required Maintenance
62
Extended Shutdown
62
Maintenance Checklist
62
Cylinder Spent Warning / Fault
63
Replacement Cylinder
64
Removing the Cylinder
65
Drain Valve Cleaning
66
Installing the New Cylinder
67
Starting after Extended Shutdown
68
Nhtc/Pc Maintenance Checklist
69
Troubleshooting
70
General Troubleshooting
70
NHTC/PC Warnings and Faults
70
Organization of Troubleshooting Chapter
71
Troubleshooting Requirements
71
Steam Distributors
73
Blower Pack
74
Digital Humidistat
74
Spare Parts
84
Distributor Spare Parts
85
Nhtc/Pc 005-030 Plumbing Parts
86
Nhtc/Pc 050-200 Plumbing Parts
88
Nhtc/Pc 005-030 Electrical Parts
90
Nhtc./Pc 050-200 Electrical Parts
92
Warranty
95
