5. Voice Alarm Systems Fire Fighter's Telephones (FFT-7/FFT-7S)
34 AFP-300/AFP-400 Operations PN 50260:C1 05/22/97
Fire Fighter's Telephones (FFT-7/FFT-7S)
Overview A Fire Fighter's Telephone provides the Voice Alarm System with fire-fighter control of
paging, and two-way communications in an emergency situation. Connect the FFT-7 to
an Audio Message Generator (AMG-1) or Audio Tone Generator (ATG-2). Up to seven
telephones can converse at the same time. Fire Fighter's Telephones come in two
models:
FFT-7 – provides full capability including paging.
FFT-7S – provides same features as the FFT-7, without paging capabilities.

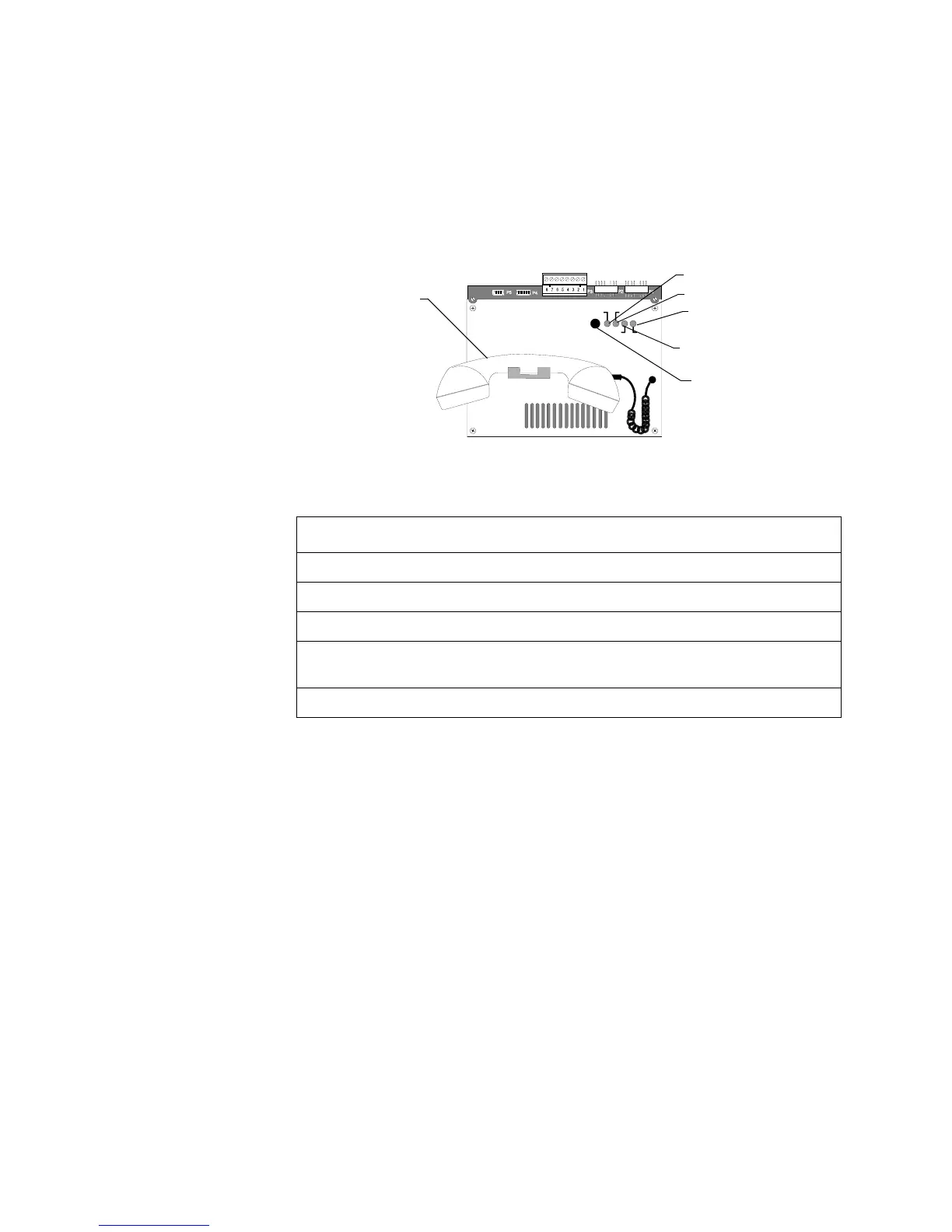

Figure 35 FFT-7 Telephone Operating Components
FFT-7 Operating
Components
Table 30 contains descriptions of the FFT-7 LED indicators and Page button:
Table 30 Description of FFT-7 Operating Components
How to Operate the
FFT-7
Paging Operation
To page over the FFT-7, follow these instructions:
1. Make sure the On Line green LED is on; then, pick up the telephone handset.
2. Press the Page button (the Page Mode green LED goes on) and speak into the
telephone handset.
When finished paging, press the Page button (the Page Mode green LED goes out) and
hang up the telephone handset.
Two-Way Conversation
To answer a call with an FFT-7, follow these instructions:
1. When the VCM-4 sounder produces a steady tone and the telephone circuit green
LED goes on, pick up the telephone handset and speak into the telephone headset.
2. When finished with the conversation, hang up the telephone handset.
F
IRE
FIGHTERS
TELEPHONE
P
AGE MOD E
A
UDIO
A
MG
P
AGE
O
NLINE
L
INE
TROUBLE
P
HONE
TROUBLE
Tel ep hon e Hand se t
Page Mode LED
Phone Trouble LED
Line Trouble LED
On Line LED
Page Button (not on FFT-7S)
Component Function
Page Mode LED Toggles on or off when you press the Page button.
On Line LED Lights continuously to indicate the FFT-7 is receiving power.
Page Button Press the Page button to initiate a page (FFT-7 only).
Line Trouble LED Lights to indicate a trouble exists on another device with trouble
contacts wired to the FFT-7 trouble input connector.
Phone Trouble LED Lights to indicate a trouble exists on the FFT-7.
Note: An FFT-7 will not
operate unless:
• power is connected to the
FFT-7;
•the AMG-1/FFT-7 control
harness is connected
between the AMG-1 and
the FFT-7; and
• the AMG-1 is set up for
EIA-485 communication
through the CPU ACS port
(TB4).
Refer to the AFP-300/AFP-400
Installation Manual for
instructions on making these
connections.
