21
ORIGINAL VA C PAN
™
I N S TA L L ATION INSTRUCTIONS
NOTE: Please read instructions prior to installation.
Installation Tips
• Plan the location of your ORIGINAL VACPAN to be
conveniently located for sweeping clean-ups.
• Also consider ease of access of vacuum tube piping
connections during installation.
• The leading edge of the ORIGINAL VACPAN must sit
flush with the finished floor.
• For maximum clearance, use Plastiflex part#SV8052
Universal Short 90˚ Elbow for connection to VA C PA N.
• Do not glue the connection between ORIGINAL VAC-
PAN and elbow, to allow for future removal.
• Prior to final installation, check for an airtight seal
between ORIGINAL VACPAN and elbow. Teflon tape
may be used if required.
• Allow for 1/2” vertical play in vacuum tube piping
at ORIGINAL VACPAN location, so that final piping
connections can be made.
Under Cabinet Installations
Refer to Figure 46.
• ORIGINAL VACPAN requires a minimum 2 1/4” toe
kick height.
• Once the ORIGINAL VA C P A N location is determined,
cut a 6 3/4” long x 1 3/4” high slot in the cabinet toe
kick to accept the ORIGINAL VACPAN.
• Run vacuum tube piping and low voltage wire from
the main piping line to the ORIGINAL VACPAN
location.
• Access for final piping connections must be made.
Access From Below
If access is available from below, cut an access hole
through the subfloor underneath the cabinet,
positioned so that final piping connections can be
made by reaching through the access hole.
Access Through Cabinet Floor
Access can be made through the finished cabinet
floor. Cut a 2 3/4” x 3 1/2” access hole, positioned
so that final piping connections can be made by
reaching through the access hole. Plastiflex
part#SV8012 Cover Plate can be used to cover
the hole after installation.
Access Through Cabinet Toe Kick
Access can be made through the cabinet toe kick
by cutting up to 10 1/2” x 4” slot and using the ORIG-
INAL VACPAN Quick Trim Cover Plate
(included or Plastiflex part#VCPx01 sold separately).
If required, score back of Quick Trim Cover Plate
with a knife and snap along grooves for height
adjustment.
• Attach low voltage wires to ORIGINAL VACPAN
terminal connections marked “low voltage only”.
• Slide ORIGINAL VACPAN into mounting slot and
secure to toe kick using two #6 screws provided.
• Reach through access hole and make final piping
connections.

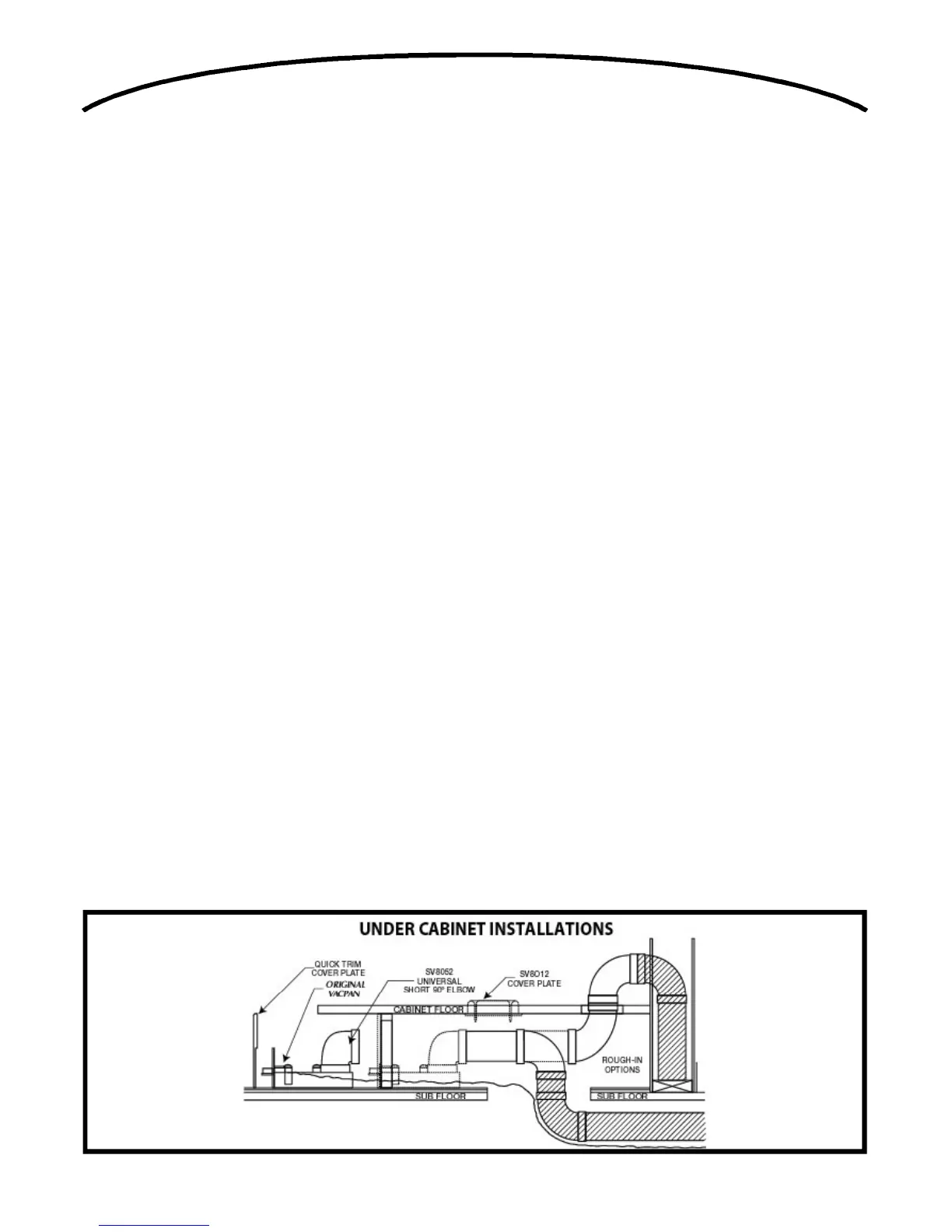

FIGURE 46
