Refer to Page 3 for information on locating the power unit.
MOUNTING
This section refers to Figures 51 and 52.
Your VX Series power unit mounts to the wall using a two
piece mounting system. The wall mounting bracket pro-
vided with your power unit mounts to the wall. The steel
plate on the back side of your power unit has two slot
openings which are designed to slide onto the two
formed protrusions on the wall mounting bracket.
Be sure to follow the instructions below for proper
installation.
1. Locate power unit within six feet of a grounded elec-
trical outlet.
2. See Figure 51 to maintain minimum wall clearance
dimensions.
3. Position and mount the wall mounting bracket
provided with the power unit. See Figure 52 for
proper mounting dimensions. The dimensons
provided will help you position and mount the wall
mounting bracket at the proper height to maintain
the minimum wall clearances shown in Figure 51.
4. Attach wall mounting screws through center holes
on wall mounting bracket using the mounting screws
provided.
NOTE:
If bracket is being mounted on horizontal studs use
additional optional screw holes.
5. Hang power unit onto wall mounting bracket.
Make sure both the upper and lower mounting
slots on the back of the power unit are engaged with
corresponding wall bracket protrusions.
Pull down to secure.
6. Open the door on the front side of the power unit.
For VX475, VX550 & VX1000 models make sure
bag is installed properly on bag holder and holder is
locked in upright position. For models VX475C,
VX550C & VX1000C make sure
the cyclonic filter media is properly seated. Refer
to Homeowners Operating Guide if necessary.
Close door.
31
POWER UNIT INSTA L L AT I O N

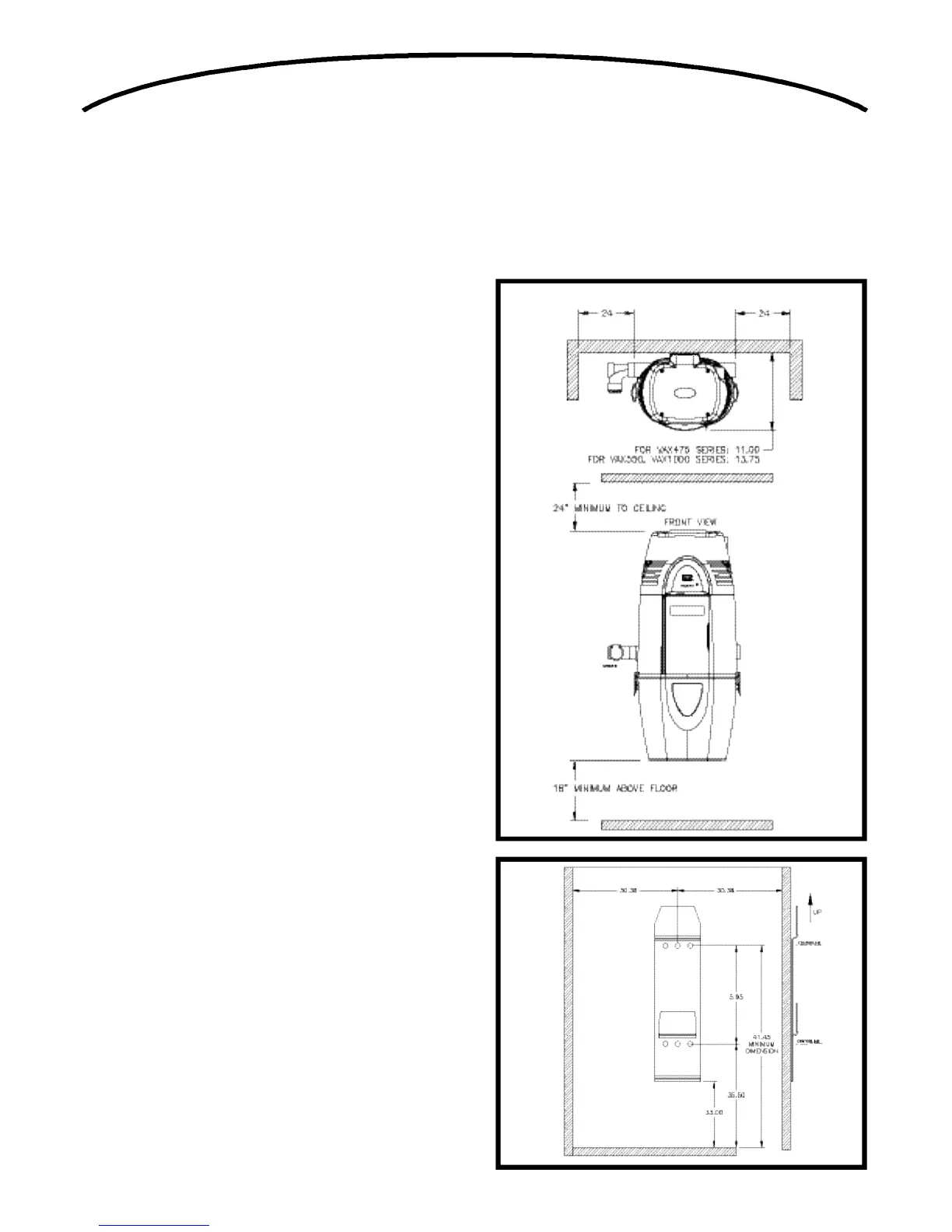

FIGURE 51
FIGURE 52
MINIMUM WALL CLEARANCES
