7
MODEL CF361 & CF361F (For use with
CI370 and 360 INLETS)

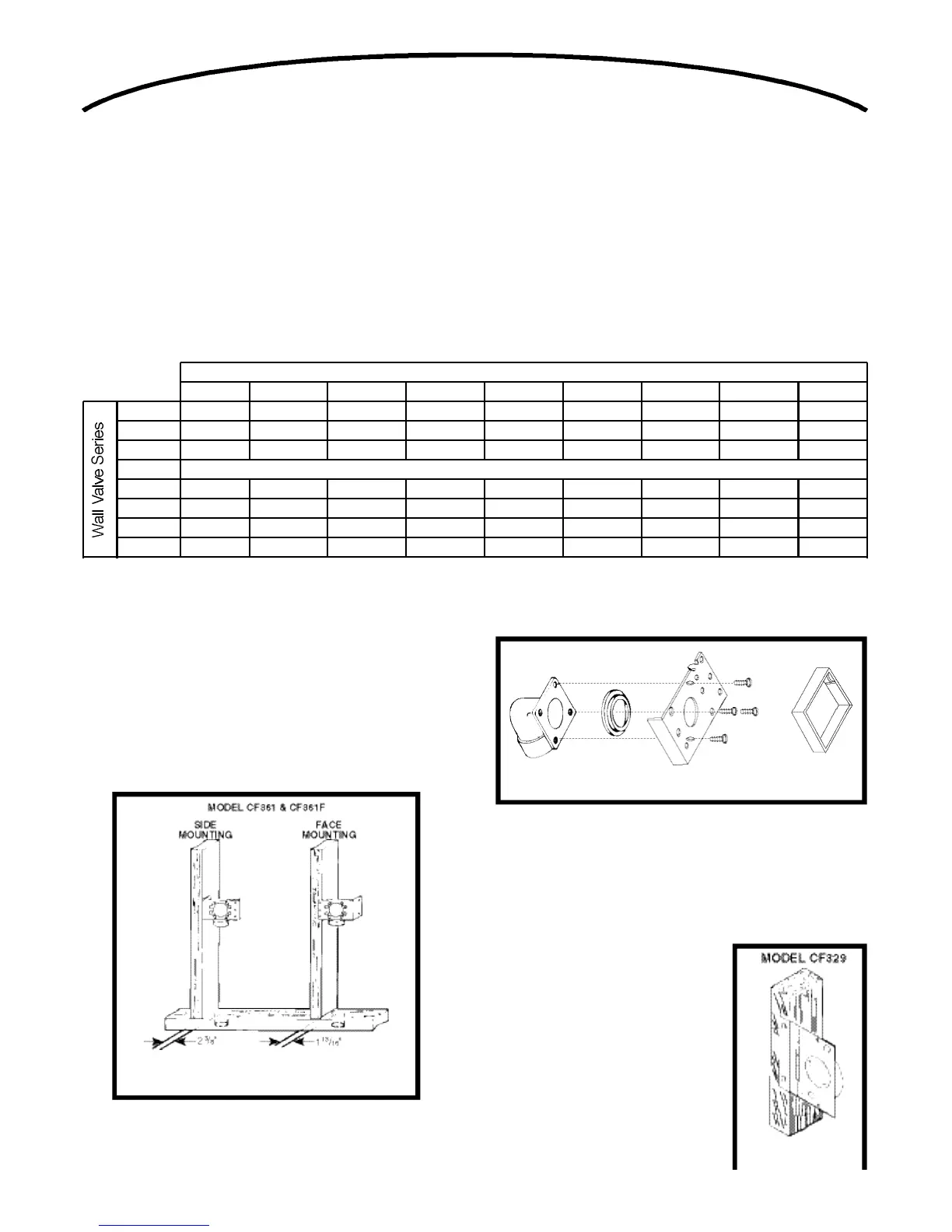

3. Refer to Figure 10. Nail bracket to side of stud so
that front edge of bracket is flush to front of stud.
(The bracket may also be nailed to the front edge
of the stud. See face mounting illustrated. For face
mounting, use locating tabs on bracket for proper
alignment.)
4. Refer to Figure 11. Remove cardboard from plaster
guard frame. Using four (4) provided screws, attach
the appropriate flanged fitting and inlet seal to back
of inlet.
5. Replace cardboard in plaster guard frame.
MODEL CF329 (For use
with 330 INLETS)
6. When using Model CF329,
glue elbow to mounting plate.
Attach to stud as shown in
Figure 12.
FIGURE 10
FIGURE 12
I N S TA L L ATION IN
NEW CONSTRUCTION
WALL INLET ROUGH-IN
Once the locations for wall inlets have been determined, mount all inlet brackets.
1. Choose the appropriate mounting bracket for the inlet being installed. (See chart.)
2. To locate bracket on wall stud, measure approximately 18" up from finished floor level. (Height may vary according
to individual preference.)
Rough-In Series
395 396-1 396-3 CI3301RK CI3303RK CF329 CF361 CF361F CI395RK
330 X X X
360 X X X X X
CI335 X
CI358 Rough-In and Wall Valve Sold Together
CI370 X X X X X
CI390 X
CI395 X
CI398 X X X
FIGURE 11
