WIRING
This section refers to Figure 55 and 56.
Grounding Instructions – This appliance must be ground-
ed. If it should malfunction or break down, grounding pro-
vides a path of least resistance for electric current, to
reduce the risk of electric shock. This appliance is
equipped with a cord having an equipment-grounding
conductor and grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordi-
nances.
D a n g e r – Improper connection of the equipment-
grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service person if you
are in doubt as to whether the outlet is properly grounded.
Do not modify the plug provided with the appliance – if it
will not fit the outlet, have a proper outlet installed by a
qualified electrician.
This appliance is for use on a standard 120Vac, 15 amp
power source for VX475 and VX550 models with
a NEMA 5-15R receptacle. For VX1000 models a
nominal 240Vac, 15 amp circuit with NEMA 6-15R recep-
tacle is required. Make sure that the appliance is con-
nected to an outlet ad has a grounding attachment plug
that looks like the plug shown in either Figure 55 or
Figure 56 depending on model. No adapter should be
used with this appliance.
1. Connect low voltage wire (18 gauge, 2-conductor,
Model 376-UL) to crimp connectors located on
outside of the power unit.
2. The power unit is equipped with a six foot
grounded cord.
Plug cord into proper receptacle.
33

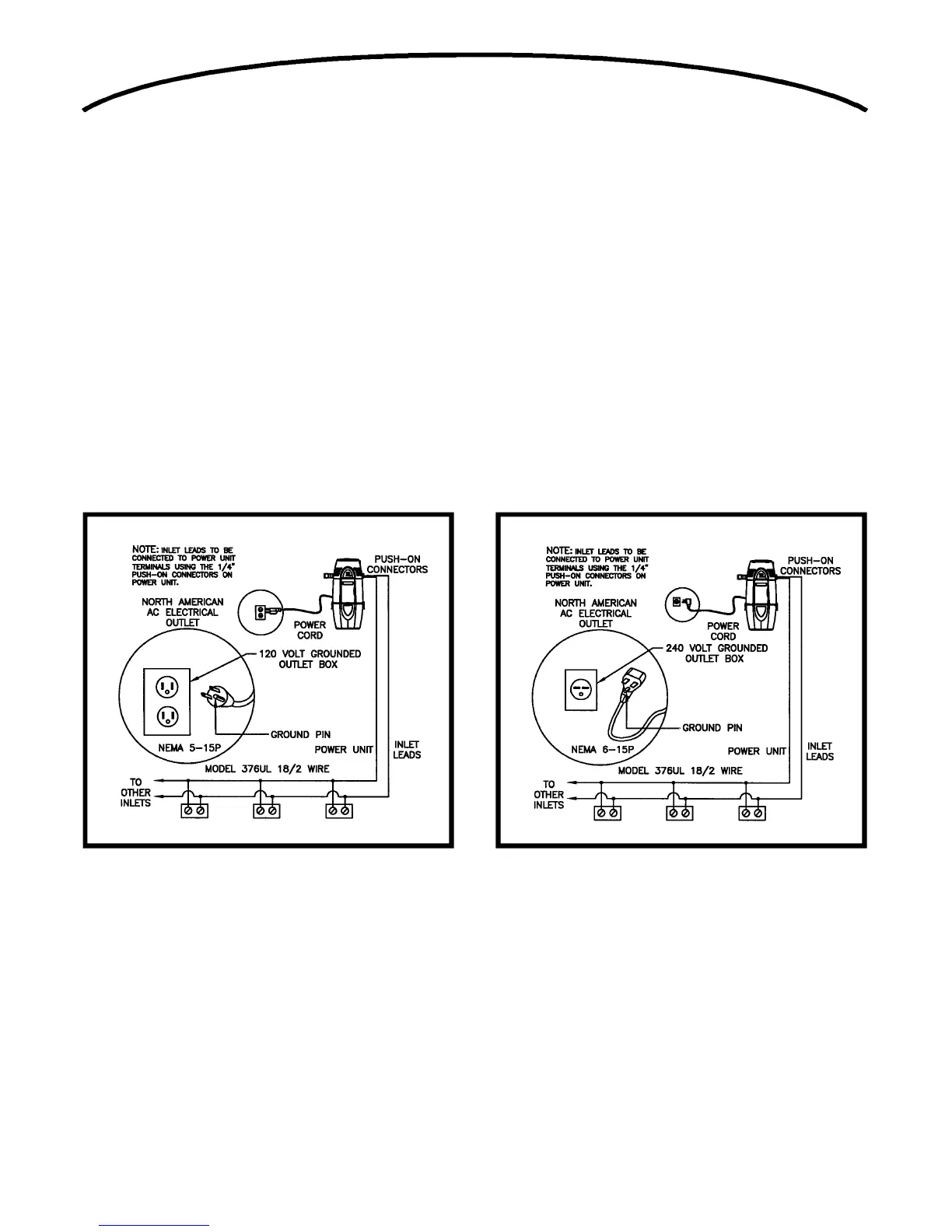

FIGURE 55 FIGURE 56
VX475 & VX550 SERIES VX1000 SERIES
