Refer to Page 3 for information on locating the power unit.
MOUNTING

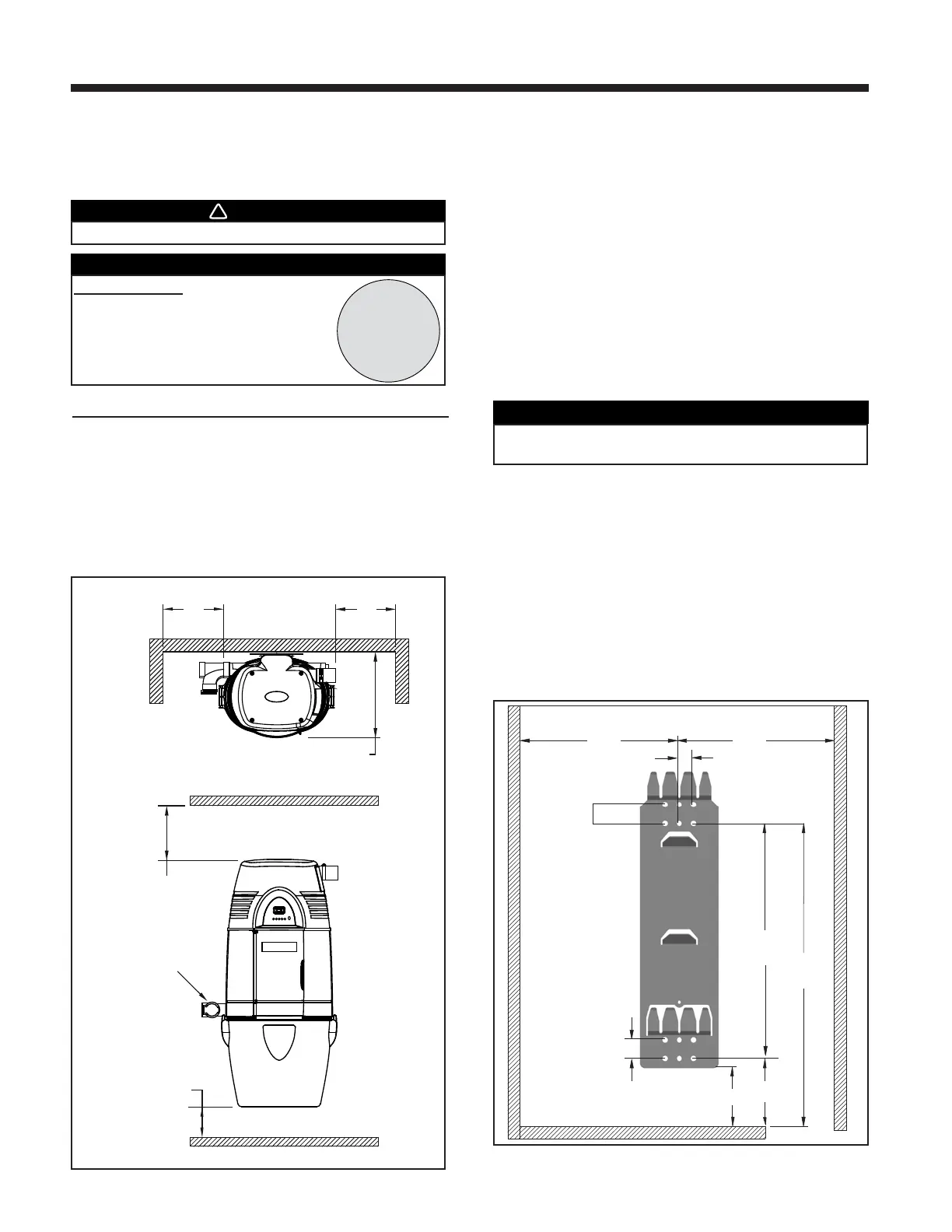

This section refers to Figures 27 and 28.
Your power unit mounts to the wall using a mounting system.
The wall mounting bracket, provided with your power unit,
mounts to the wall. It has 4 fingers at the top and 4 others at
the bottom. The power unit has 4 upper openings and
4 lower openings which are designed to slide onto the
fingers of the wall mounting bracket. Be sure to follow the
instructions below for proper installation.
1. Locate power unit within six feet (1.82 m) of a grounded
electrical outlet. Broan VX3000C & VX6000C and NuTone
VX475CC & VX550CC power units require a 120 V,
dedicated 15-amp branch-circuit with a NEMA 5-15R
receptacle or a dedicated 20-amp branch circuit with a
NEMA 5-20R receptacle. Broan VX12000C and NuTone
VX1040CC power units require a 240 VAC, dedicated
20-amp branch circuit with a NEMA 6-20R receptacle.
2. Refer to Figure 27 to maintain minimum wall clearance
dimensions.
3. Position and install the wall mounting bracket with the
provided screws. Refer to Figure 28 for proper mounting
dimensions.
4. Using the provided mounting screws, secure the mounting
bracket on the wall through two upper and two lower
mounting holes.
5. Prior to installing the power unit onto the wall, you must
do the wiring, see page 19 for more details.
6. Hang power unit onto wall mounting bracket. Make sure
both upper and lower mounting openings on the back of
the power unit are engaged with corresponding wall bracket
fingers. Pull down the power unit to secure.
7. Open the door on the front side of the power unit. Make
sure the cyclonic filter is properly seated.
See Homeowners Guide for reference. Close the door.
page 18
POWER UNIT INSTALLATION
FIGURE 28
CAUTION
Make sure to fix the wall mounting bracket with the
screws directly onto a stud for a solid installation.
CAUTION
For all models, DO NOT REMOVE
either of the grey seals covering the
TOP red cap plugs. Removing these
seals will void the warranty. Only
remove and use the outlets covered
by the BOTTOM green plugs.
WARNING
Do not install outdoors.
