WIRING (CONT’D)
FINAL SYSTEM CHECK
Be sure all inlets are closed. Check switch on power unit for
manual on/off operation. Check that indicator light on control
panel of power unit is lit and is in green mode.
Check each wall inlet to be sure contacts activate power unit
when hose is inserted and switched on, if applicable. If the
central vacuum hose is not available at the time, a short
piece of wire can be used to short contacts in wall inlet to
activate power unit. Check each wall inlet and tubing
connection for air leaks. Check power unit for leaks around
inlet tube and debris pail.
Store the owner's manual with the cleaning tools and accessories.
Now it’s time to enjoy the benefits of a Broan or NuTone
Central Vacuum System. See Homeowner’s Manual for
operating and care information.
TO
OTHER
INLETS
NOTE: INLET LEADS TO BE CONNECTED TO POWER UNIT
TERMINALS USING CRIMP CONNECTORS
AND LOW VOLTAGE WIRE HARNESS
INLET
LEADS
MODEL V133 18/2 WIRE
POWER
UNIT
POWER
CORD
NORTH AMERICA
AC ELECTRIC
OUTLET
GROUND PIN
NEMA 6-20R
240 VOLT GROUNDED
OUTLET BOX
AE0012A
CRIMP CONNECTORS
LOW VOLTAGE WIRE
LOW VOLTAGE
WIRE HARNESS
Broan VX12000C & NuTone VX1040CC
FIGURE 31
FIGURE 30

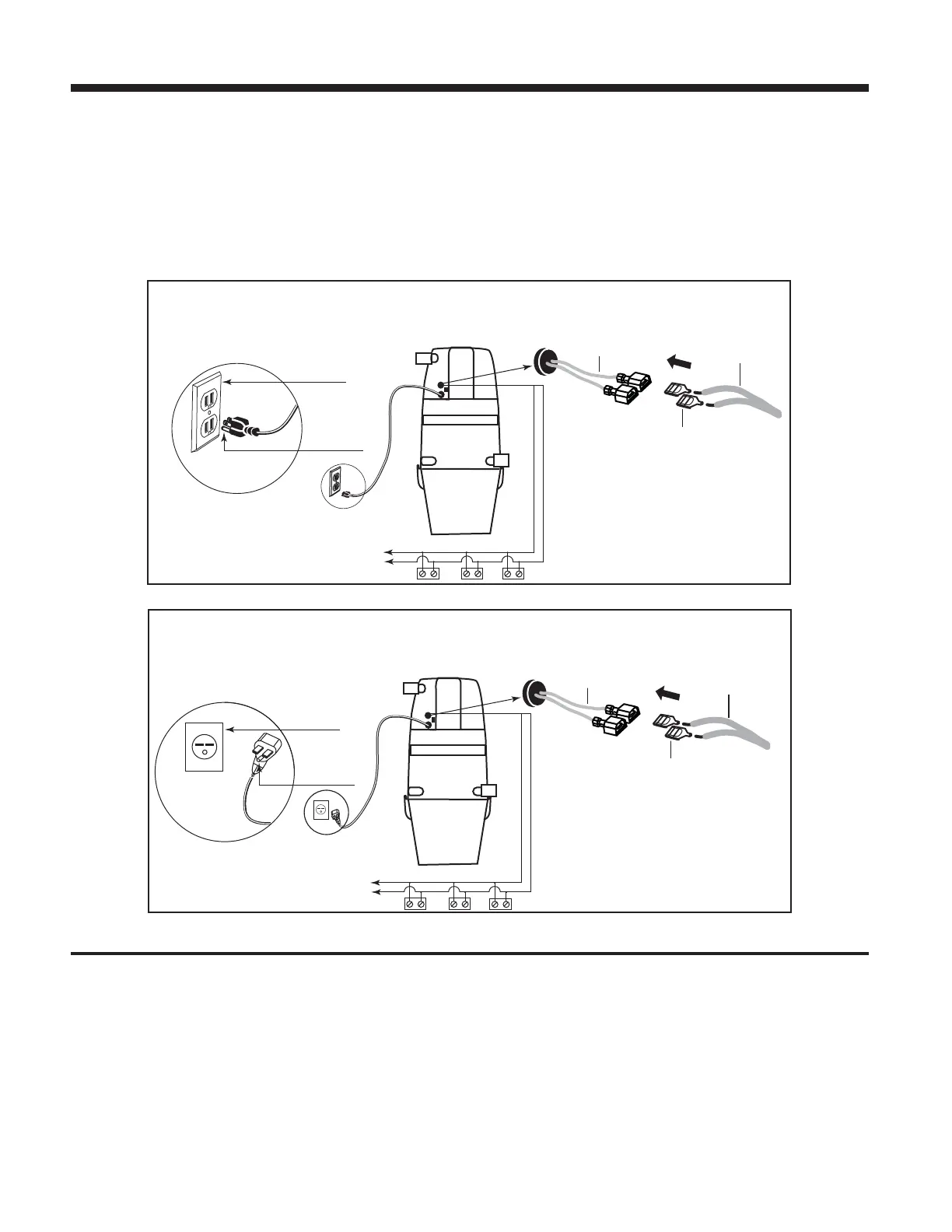

1 Using crimping pliers, connect low voltage wire (18 gauge, 2-conductors, model V133) to crimp connectors.
2. Connect the low voltage wire to the low voltage wire harness located at the back of the power unit, the use of long nose pliers
is recommended.
3. The power unit is equipped with a 6 foot grounded cord. Ensure power cord is plugged into a properly grounded receptacle.
TO
OTHER
INLETS
NOTE: INLET LEADS TO BE CONNECTED TO POWER UNIT
TERMINALS USING CRIMP CONNECTORS
AND LOW VOLTAGE WIRE HARNESS
INLET
LEADS
MODEL V133 18/2 WIRE
POWER
UNIT
POWER
CORD
NORTH AMERICA
AC ELECTRIC
OUTLET
120 VOLT GROUNDED
OUTLET BOX
NEMA 5-15R
OR
NEMA 5-20R
GROUND PIN
CRIMP CONNECTORS
LOW VOLTAGE WIRE
LOW VOLTAGE
WIRE HARNESS
AE0028A
Broan VX3000C & VX6000C, NuTone VX475CC & VX550CC
