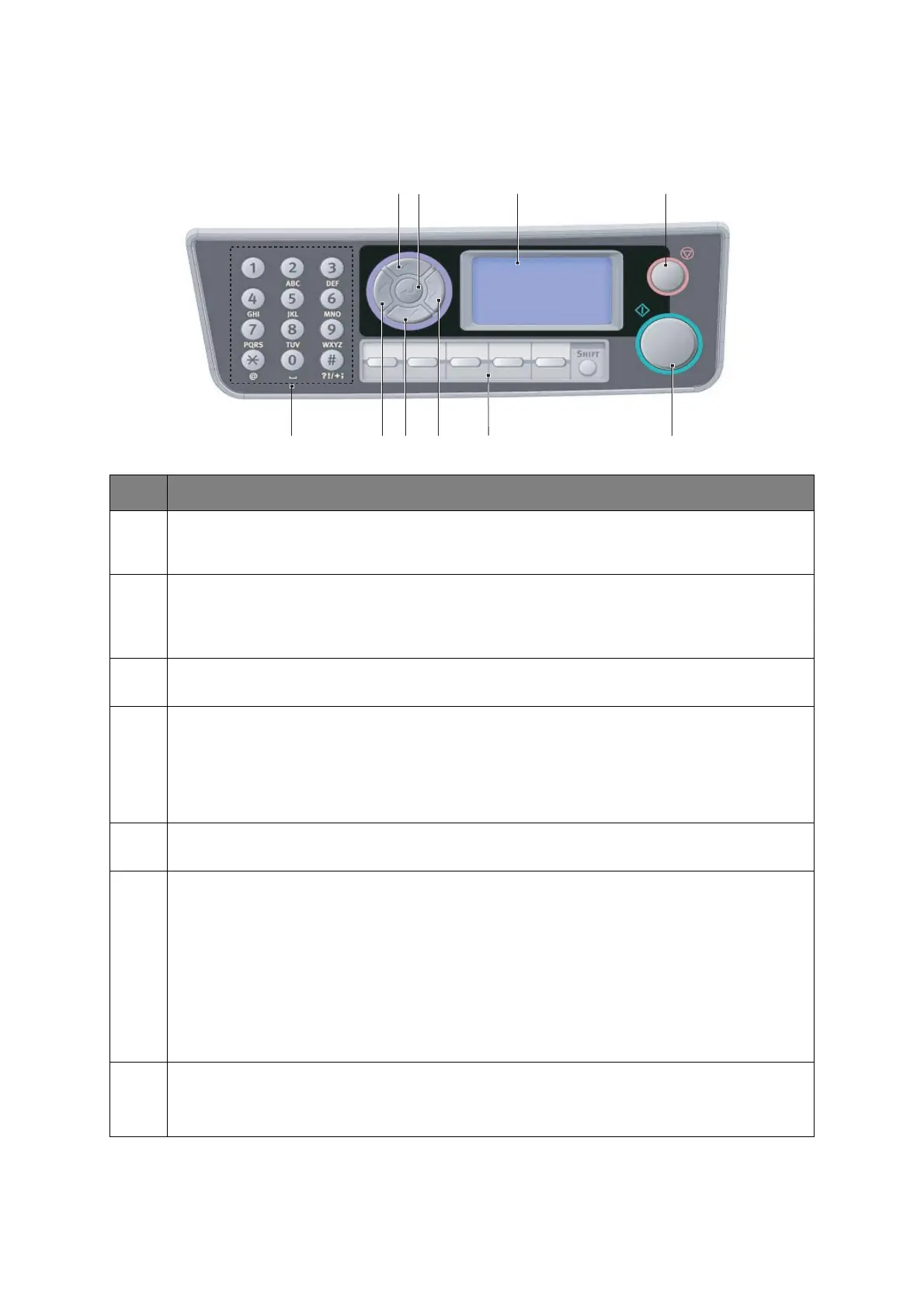

MFP overview > 14
C
ONTROL
PANEL
REF. DESCRIPTION
1. Key Pad
Used to enter numbers, upper-case/lower-case letters and symbols in the Entry Line. Refer to
“Character switching” on page 15 for further details.
2. Left Key
When in Switching mode: Returns the display to the Function Selection screen or Scan Sub Function
Selection screen from the Stand-by screen.
When Setting up: Increments the value of the tree structure.
3. Down Key
When setting up or in switching mode: Moves the cursor down.
4. Right Key
When in Switching mode:
> Used to confirm the Mode selected.
> Used to start Push scan (if push scan is selected, the executing Push Scan screen is displayed.)
When Setting up:
> Decrements the value of the tree structure.
5. Up Key
When setting up or in Switching mode: Moves the cursor up.
6. Enter Key
When in Switching mode:
> Used to confirm the Mode selected.
> Used to start Push Scan (If Push scan is selected, the Executing Push scan screen is displayed.)
When Setting up:
> Decrements the value of the tree structure.
> Increments the value of the tree structure as the set value is confirmed.
When entering Pin ID:
Used to confirm the PIN ID entered.
Recovery from Error/Warning states.
7. One Touch Key (MB470/MB480): Used to dial numbers from #00 to #09 that are registered as
fax numbers.
The shift key switches between a group of numbers from #00 to #04 and a group of numbers #05 to
#09.
10
6
5
9
8
74
3
2
1
