4.3 Rear panel
15 Footswitch connector
This terminal connects the footswitch with the peristaltic pump unit, so that
the flow can be activated / deactivated by the footswitch pedal (21).
16 Communication port for electrosurgical unit
This terminal is used for the communication between the peristaltic pump unit
and an electrosurgical unit.
17 Equipotential bonding connector
This terminal is used for potential equalization.
18 Mains connector with integrated fuses
This terminal serves as a connection to the mains power supply.
19 Type plate
The type plate contains specific information about the peristaltic pump unit
regarding type of device, reference number (REF), line voltage range, power
consumption, serial number and the registered office of the manufacturer.
20 Volume control
This knob is used for adjusting the volume.

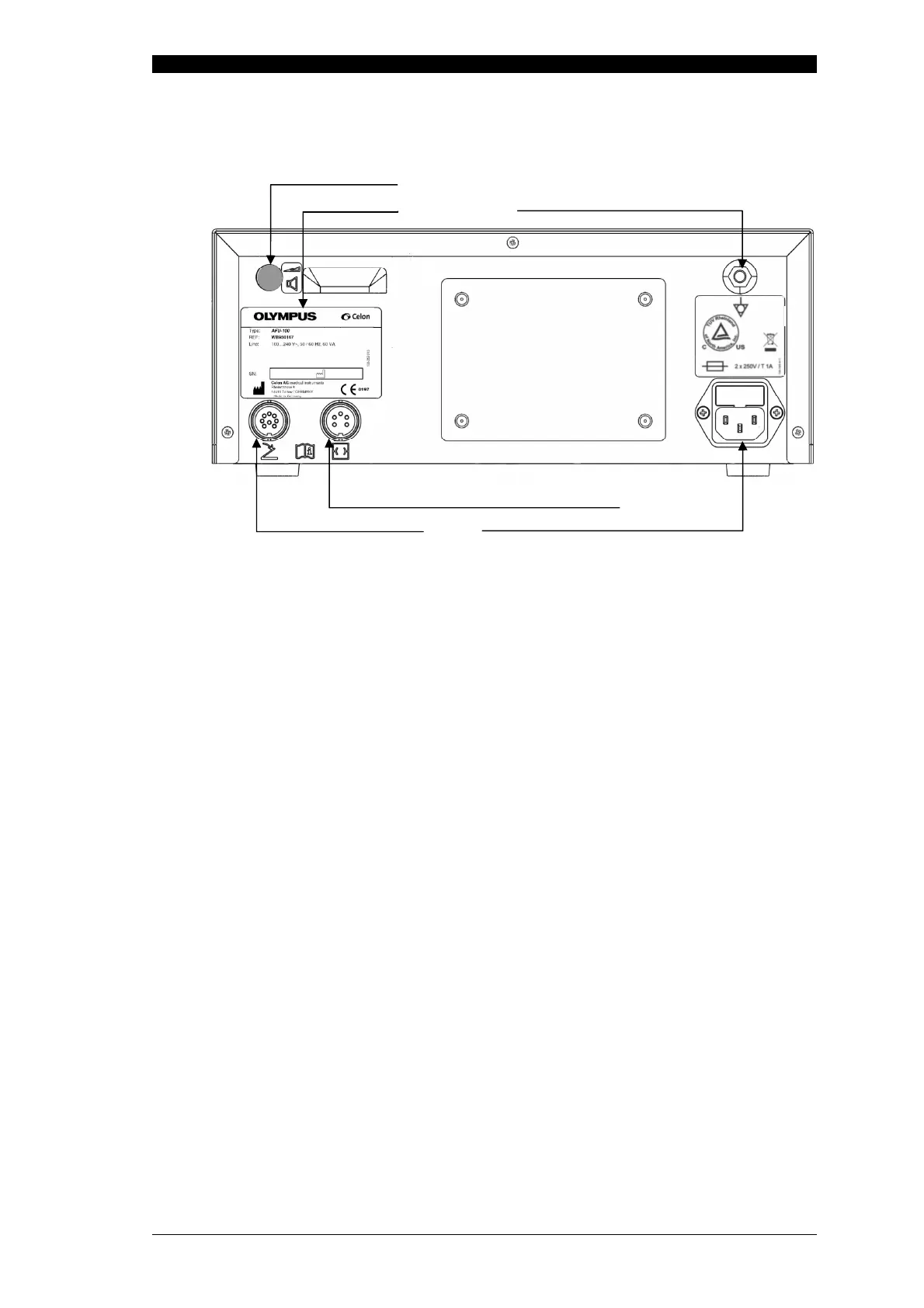

Mains connector with integrated fuses (18)
Footswitch connector (15)
Communication port electrosurgical unit (16)
Type plate (19)
Equipotential bonding connector (17)
Volume control (20)
